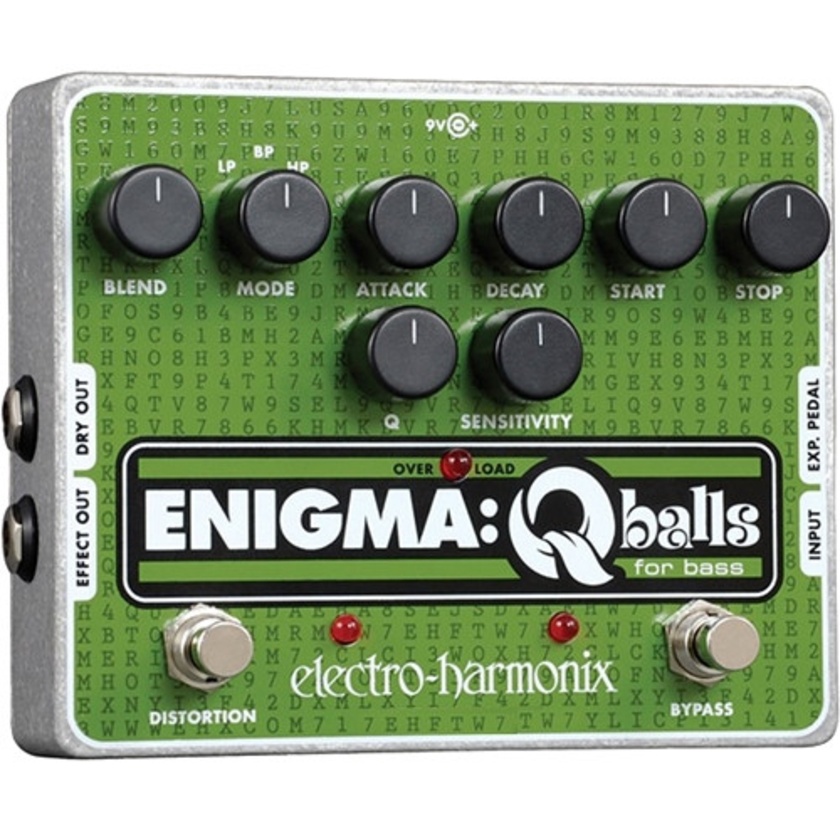

The Electro-Harmonix Enigma Bass Envelope Filter Pedal is a bass pedal with controlled filters which are a unique type of sound modifier where the intensity of the effect is controlled by the user's playing dynamics. The volume and dynamic of the incoming audio signal is used to control a swept filter. As the volume increases or decreases so does the frequency of the filter. With three filter modes, along with some other controls, all of the classic Q sounds are available to the user. An analogue distortion circuit was created specifically for the Enigma, and adds a dynamic edge to the filters sound.
Key Features:
- 40 Hz to 3 kHz frequency response tailored for bass
- Optional expression pedal control
- Fully-analog circuit
- Switch selectable analog distortion designed for bass
- Start and Stop sweep control
- Low Pass, Band Pass, High Pass filter select
- Start and Stop for filter sweep and Q control
- Separate Dry and Effect outputs
Controls
- Blend - Controls the output mix of the dry and effected signal.
- Mode - A rotary switch used to select between the three filter modes available: LP, BP, and HP.
- Attack - Controls how quickly the filter will sweep from the frequency set by the Start knob to the frequency set by the Stop knob.
- Decay - Controls how sensitive the reset circuit is when falling back from the Stop setting to the Start setting.
- Start/Stop - Set the frequency that the filter sweeps to (40 Hz - 3 kHz).
- Q - controls the resonance of the Q.
- Sensitivity - Controls the input sensitivity of the envelope filter circuit.
