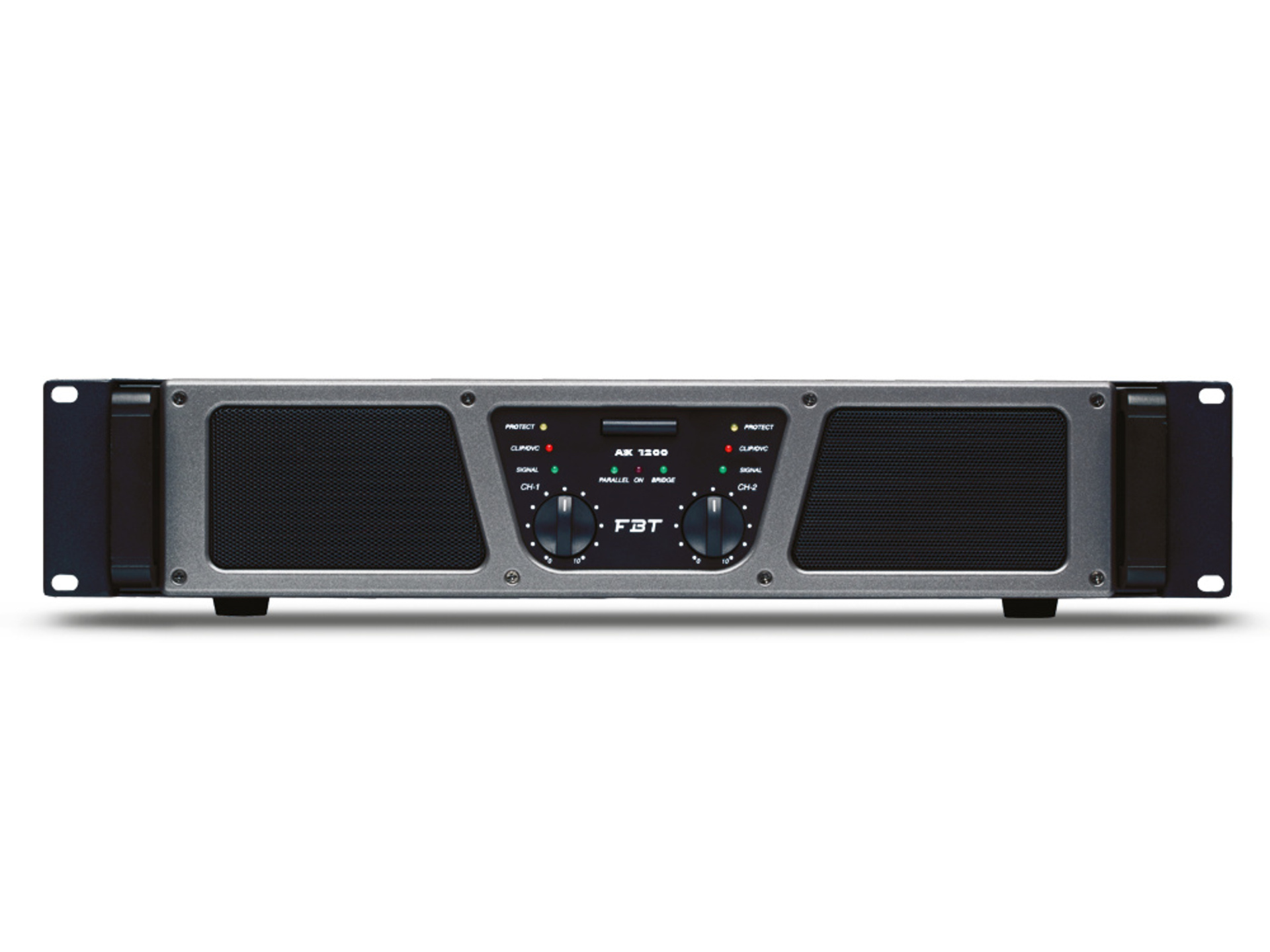

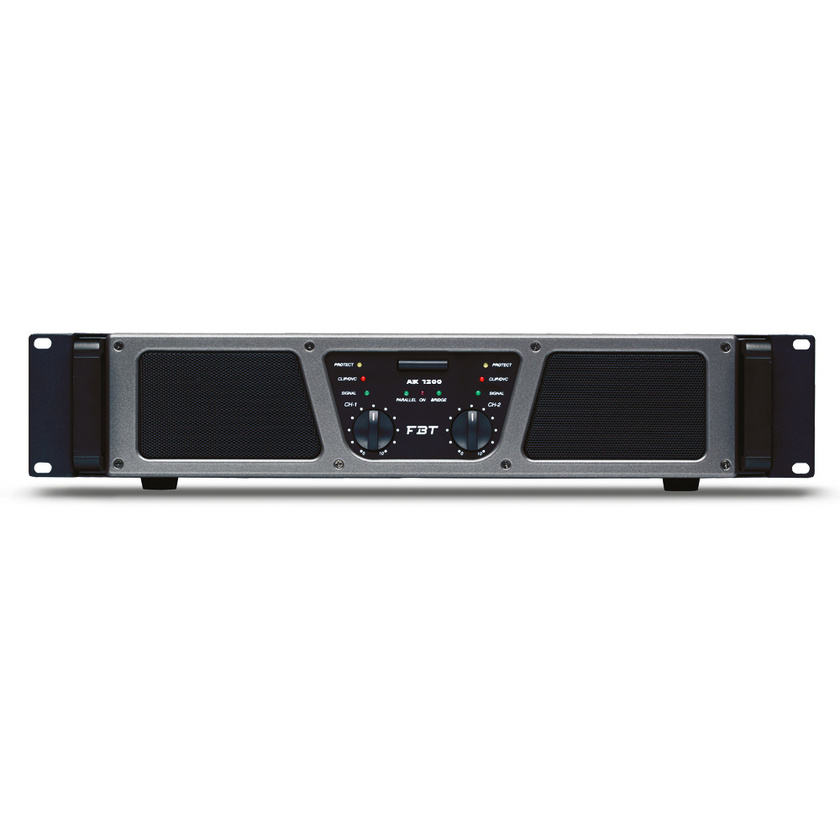

FBT AX 1200 1200W 2-Channel Power Amplifier

Product #127521 | SKU AX 1200 | FBT
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $959
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $30 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 600 W + 600 W at 4 Ω
  • 1200 W bridged at 8 Ω
  • Class H design, low heat
  • Damping factor above 400
  • SNR above 100 dB
  • 2U, 48.3 cm rackmount chassis

Description

The FBT AX 1200 1200W 2-Channel Power Amplifier delivers 600 W + 600 W at 4 Ω or 1200 W bridged at 8 Ω. Built with the same rugged components as its larger siblings, it is an ideal mid-range amplifier for fixed sound systems, rental rigs, and any application where reliable, clean power is essential.

Features
  • 1200 W bridge output (8 Ω) - ample power for medium-scale systems
  • Class H topology - efficient amplification with low heat output
  • Damping factor > 400 - precise speaker control
  • SNR > 100 dB - ultra-low noise floor for clean, professional results
  • THD < 0.03% - transparent audio reproduction
  • XLR / Jack inputs, Speakon / Binding post outputs - flexible connectivity
  • Forced-air cooling system - reliable thermal management under sustained load
  • Oversized power supply - reserves for dynamic peaks without clipping
  • 2U 19" rackmount chassis - standard rack integration

Specifications

Both Channels, 8 Ω (cont / imp) 340 / 350W
Both Channels, 4 Ω (cont / imp) 460 / 600W
Bridge, 8 Ω (1% THD, cont / imp) 920 / 1200W
Amplifier Class H (2-step)
Frequency Response 20 Hz – 40 kHz (–6 dB)
Signal to Noise Ratio > 100 dB
THD (1 kHz, 4 Ω) < 0.03%
Damping Factor > 400
Input Impedance 20 kΩ balanced
Input Connectors XLR / Jack
Output Connectors Speakon / Binding post
Protections Short circuit, thermal
Operation Modes Stereo / Parallel / Bridge
Maximum Power Consumption 1300 VA
Power Supply Voltage 220–230 V AC, 50/60 Hz
Net Dimensions (W × H × D) 482 × 88 × 367 mm (2U 483 mm)

In The Box

  • FBT AX 1200 1200W 2-Channel Power Amplifier

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: FBT AX 1200 1200W 2-Channel Power Amplifier
  • Manufacturer: FBT
  • Model: AX 1200
  • SKU: AX 1200
  • RM Product #: 127521
