The FeelWorld M215S 21.5" Multiview Field Monitor multiview field monitor provides an intuitive touchscreen display with 1000 cd/m² brightness for daylight viewing in field production applications. The rear panel features two 3G-SDI and four HDMI inputs and outputs that support a wide variety of video sources, along with two RS-485 ports and a GPI port. You can toggle between six different multiview modes to display each source in your video village. For power, the M215S includes an AC power input, a 4-pin XLR input, and a V-mount battery plate for a wide variety of power options.

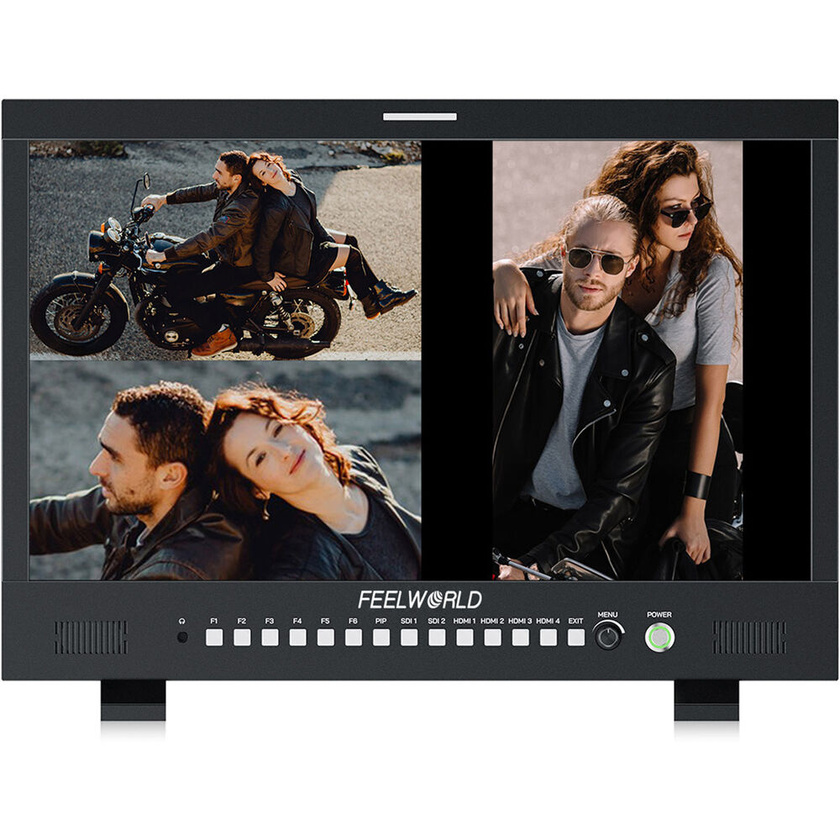

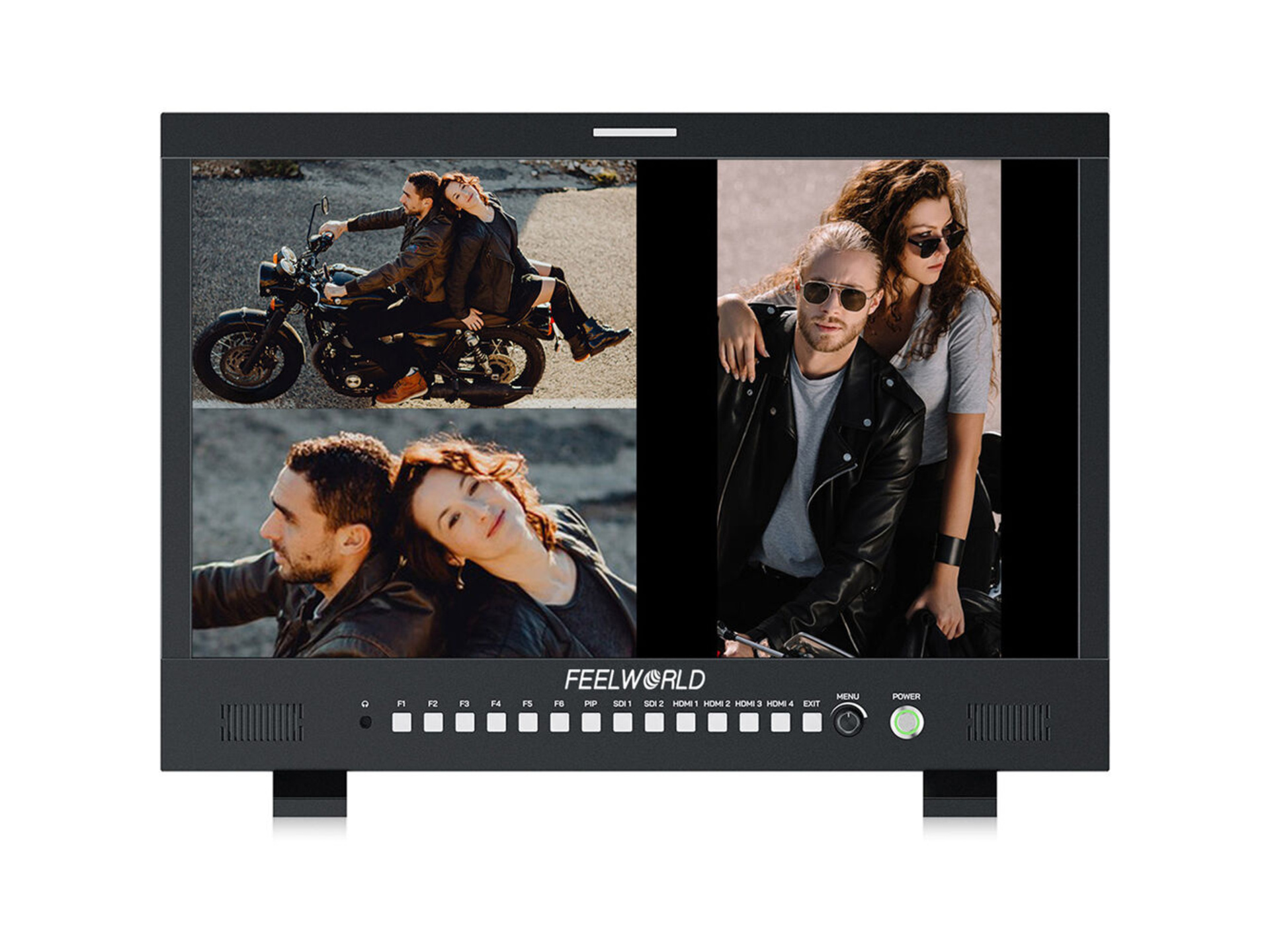

FeelWorld M215S 21.5" Multiview Field Monitor
Usually ships in 3 - 4 weeks
Our Price
$1,359
Usually ships in 3 - 4 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 3 - 4 weeks.
Deliver to
Auckland
for $35
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 weeks
Click & Collect
Features
- 21.5" 1920 x1080 Touchscreen Monitor
- 1000 cd/m² Brightness, 3000:1 Contrast
- Two 3G-SDI and Four HDMI I/O Ports
- RS-485, GPI, and LAN Ports
- Six Multiview Modes, HDR Monitoring
- 4-Pin XLR, AC, V-Mount Battery Inputs
Description
Specifications
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 21.5" / 54.6 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 89° |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 3000:1 |
| Colour Support | 16.7 Million Colours (8-Bit) |
| HDR Support | Yes |
| Colour Gamut | 97% Rec. 709 |
| LUT Support | Yes |
| Inputs/Outputs | |
| Video I/O | 2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 4x HDMI Output 4x HDMI Input |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1x IEC Input |
| Other I/O | 1x RJ45 (RS-485) Input 1x RJ45 (RS-485) Output 1x RJ45 (GPI) 1x RJ45 (LAN) 1x USB-A |
| Media/Memory Card Slot | No |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 576p 576i 480p 480i SDI 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 |
| Power | |
| Input Power | 220 VAC, 50 / 60 Hz |
| Battery | 1x V-Mount on Fixed Plate |
| General | |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminium |
| Dimensions | 20.1 x 14 x 1.4" / 511.5 x 355.5 x 34.8 mm |
| Weight | 12.6 lb / 5.7 kg |
In The Box
- FeelWorld M215S 21.5" Multiview Field Monitor
- HDMI Cable
- Micro-HDMI Cable
- SDI Cable
- V-Mount Battery Plate
- Stand Feet Set
- Sun Hood
- AC Power Cord
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: FeelWorld M215S 21.5" Multiview Field Monitor
- Manufacturer: Feelworld
- Model: M215S
- SKU: M215S
- RM Product #: 126438
- Screen Size: 21.5"
- Connection: HDMI
- Screen Resolution: 1920 x 1080
- Warranty: 1 year manufacturer warranty
