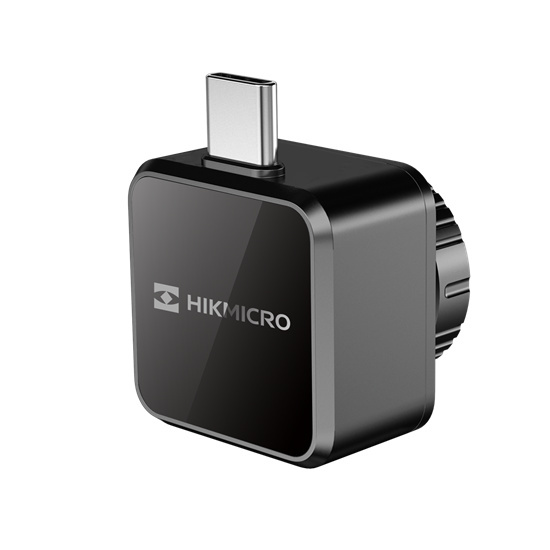

HIKMICRO Mini2Plus Smartphone Thermal Imaging Camera

Name: HIKMICRO Mini2Plus Smartphone Thermal Imaging Camera
Brand: HIKMICRO
SKU: 108963
Price: 819.00 NZD
Availability: InStock
Rating: 5 (1 reviews)

Product #108963 | SKU MINI2PLUS | HIKMICRO

| Read Reviews (1)

In Stock Ships in 3 - 5 working days

HIKMICRO Mini2Plus Smartphone Thermal Imaging Camera

Our Price $819

In Stock Ships in 3 - 5 working days

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships in 3 - 5 working days. Deliver to Auckland for $5^.90 Change location

Click & Collect

Check availability

Features

Thermal resolution: 256 × 192
NETD: < 40 mK (@ 25°C, F#=1.0)
Accuracy: ± 2°C (-20°C to 100°C)
USB Type-C Interface (Android)
24g Weight

Description Specifications In The Box

Description

The HIKMICRO Mini2Plus Smartphone Thermal Imaging Camera is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with a functional thermal App for smartphones, the Smartphone Module enables you to get thermal imaging on your phone. At just 26.6 × 26.6 × 25mm and weighing only 24g, it’ll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.

Mini2Plus is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are. Designed for where you work, live or relax, the Mini2Plus features IP40-rated aluminium alloy housings and passes strict drop tests up to 1m (3.3 feet).

Specifications


Infrared Image
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25°C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 μm
Spectral Range	7.5 to 14 μm
Focal Length	6.9 mm
F-number	F1.0
Field of View (FOV)	25° × 18.8°
Min. Focus Distance	0.1 m (0.33 ft)
Focus Mode	Manual Focus
Image Display
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Image Modes	Thermal/Fusion
Measurement and Analysis
Object Temperature Range	-20°C to 350°C(-4°F to 662°F)
Accuracy	Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools	Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, and 3 rectangles.
Level and Span Mode	Auto/Manual
General
Power Consumption	360 mW
Protection Level	IP40
Drop Test Height	1 m (3.28 ft)
Working Temperature Range	-10°C to 50°C (14°F to 122°F )
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F )
Weight Approx.	24 g (0.053 lb)
Dimension	26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)

In The Box

HIKMICRO Mini2Plus Smartphone Thermal Imaging Camera
