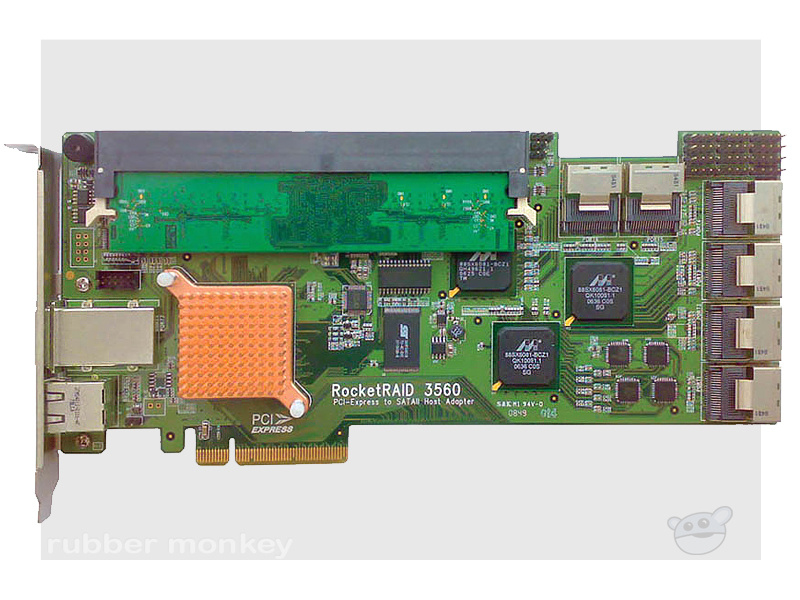

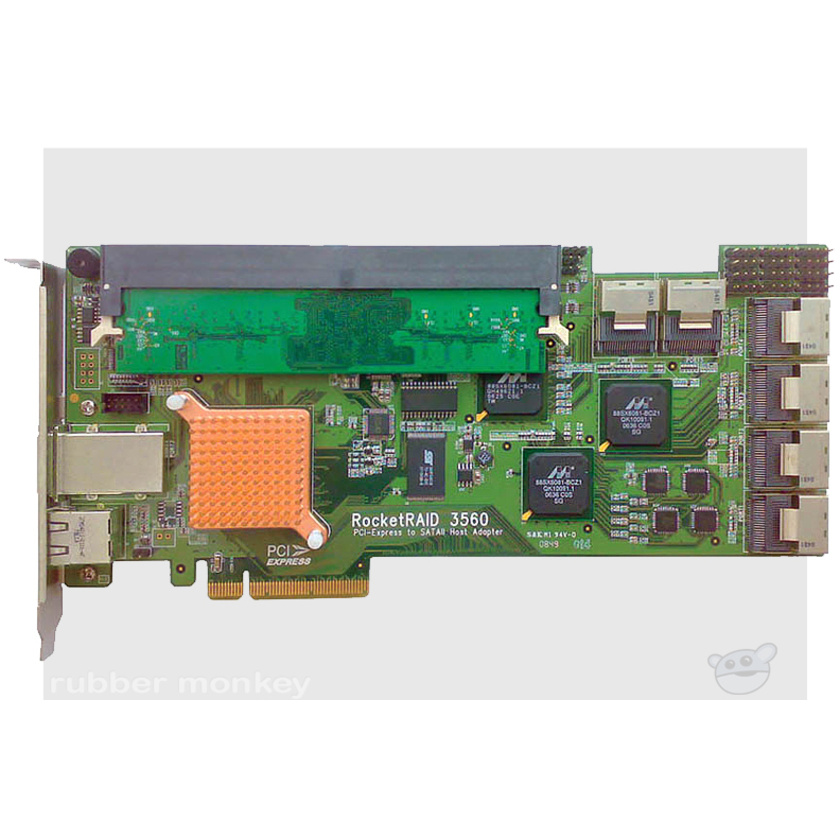

The HighPoint RR3560 Internal RAID Controller
24 port, 6x internal miniSAS, PCI-E x8 Host Adapter (IOP/SATA II)
Features:
Host Adapter Architecture:
Intel IOP341 (800MHz)
1GB onboard cache
PCI-Express x8
Up to 24 SATA 3Gb/s Hard Drives
Supported RAID Feature:
RAID Levels 0, 1, 3, 5, 6, 10, 50 and JBOD
Multiple RAID Support
Online Array Roaming
Automatic RAID Rebuild
Automatic Drive Insertion
Quick Initialization
Online Capacity Expansion / Online RAID Level Migration
Hot Spare - (global)
Configurable stripe size
Staggered Drive Spin-up
Bad Sector Repair and Remapping
BIOS Booting Support
HighPoint RAID Management (HRM) Suite:
Web GUI management utility
CLI (Command Line Inteface)
BIOS Management
Independent RAID Module Onboard
Alert & Indicator:
SMTP (Email Notification)
(Hard drive activity and failure) LED
SAF-TE chassis environment monitoring
Specifications:
Operating Temperature:
- Work Temp +5° C ~+ 55° C
- Storage Temp ~20°C ~ 80° C
- Relative Humidity 5% ~ 60% non condensing
Operating Voltage PCI-e : 3.3V / Power: 5W
Regulator Certification:
- FCC / CE
- MTBF Mean Time Before Failure 920,585 Hours
Operating System Support:
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers
Package Contents:
RocketRAID 3560 Series SATA Hardware RAID Controller
RocketRAID SATA user manual
Software CD with (Drivers and Manual)
Internal mini-SAS cables x6
3 year warranty
