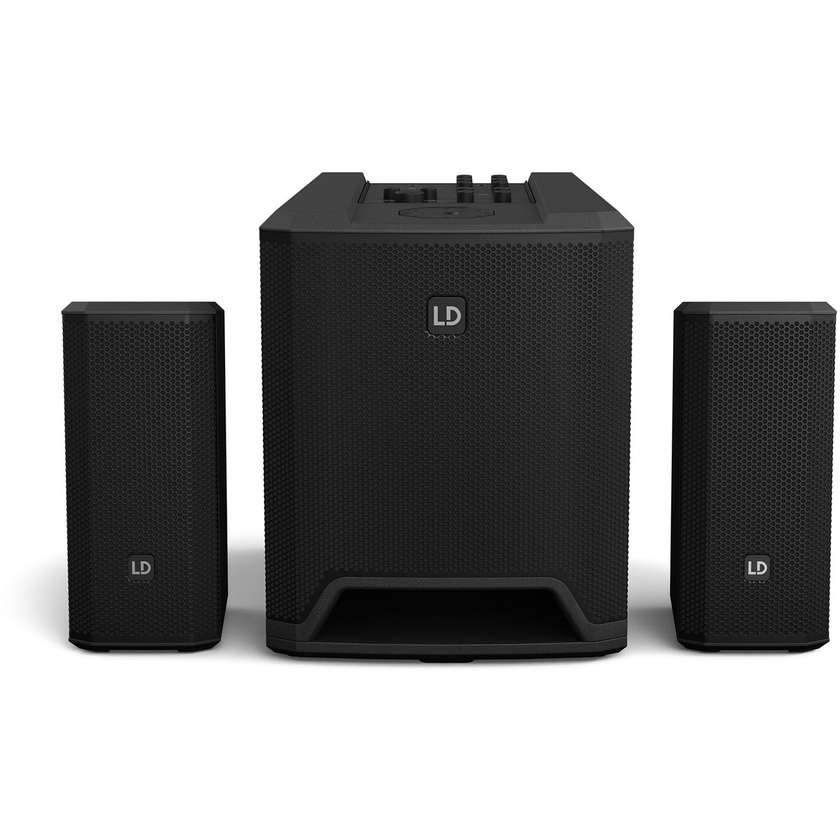

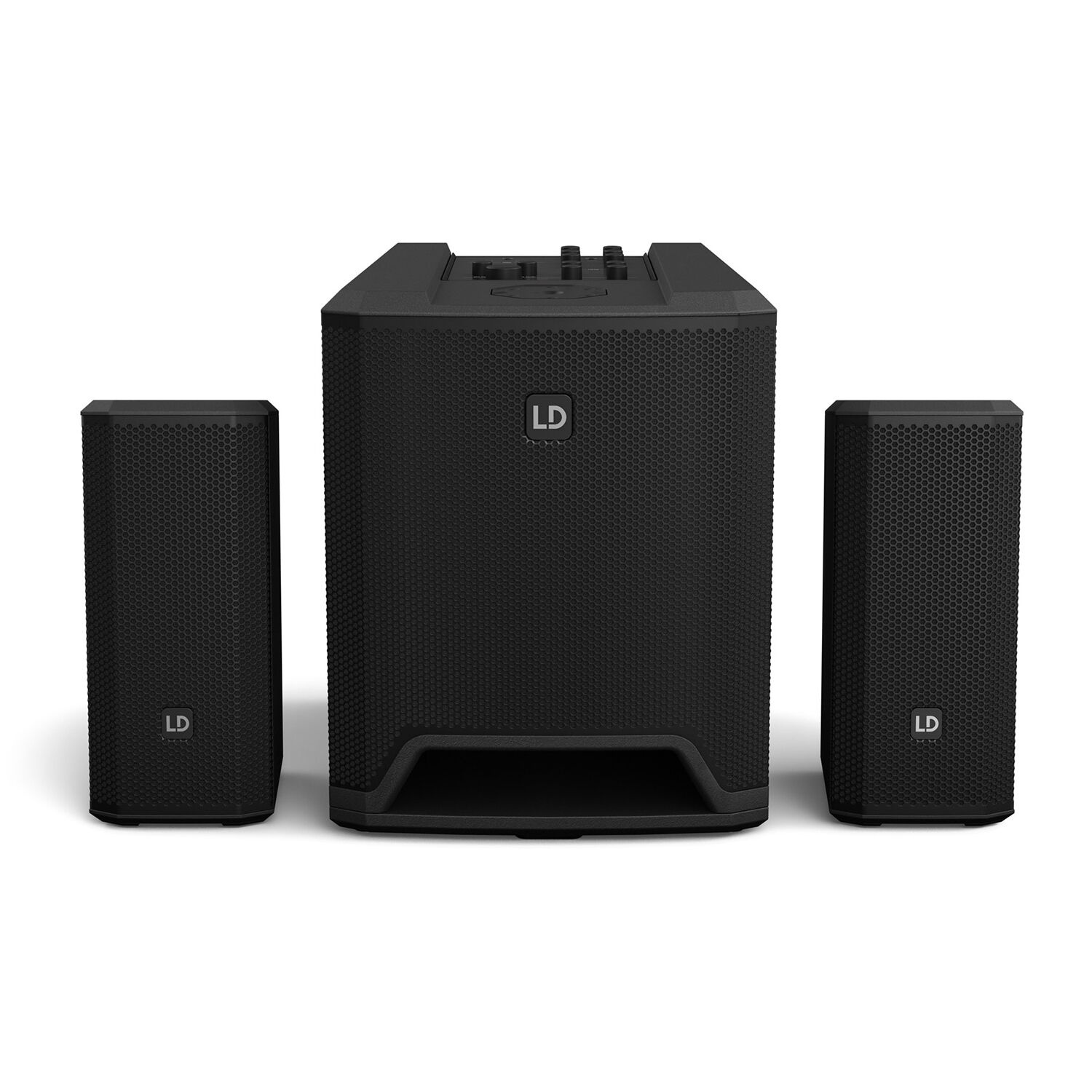

LD Systems DAVE 10 G4X Compact 2.1 680W 10" Powered PA System with Bluetooth Streaming

Product #105978 | SKU LDDAVE10G4XINT | LD Systems
In stock Ships Monday
Our Price $1,719.00
In stock Ships Monday
- +

Shipping & Availability
Ships Monday. Deliver to Auckland for $94.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 working days
Click & Collect

Features

  • 2.1 Portable PA System
  • 680W Peak Power
  • Integrated 6-Ch Mixer with AEQ + Reverb
  • 10" Subwoofer + DynX DSP
  • Dual 4" + 1" Satellite Speakers
  • Waveguide for Homogeneous Dispersion

Description

Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need a sound system that can handle the daily grind of live performance - with professional sound for a variety of applications, with a wide range of connections and accessory options for quick setup on site, and with maximum reliability. In a nutshell, your sound system has to be at its best around the clock.

With the LD Systems DAVE 10 G4X Compact 2.1 680W 10" Powered PA System with Bluetooth Streaming, your search is over. LD Systems has completely redesigned and fine-tuned the powered 2.1 sound system. All you have to do is set up the 10" subwoofer and the two satellites with double 4" speakers (total output: 680 W peak) and connect the equipment - and the sound will amaze you from the very beginning! With the integrated 6-channel mixer, you have all of your microphones, instruments and signals under control - and, thanks to integrated Bluetooth, you can also stream music wirelessly via a smartphone or tablet.

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.

The DAVE 10 G4X sound system becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to connect a CD player, computer or smartphone. Need some backing tracks or sound effects for your gig, and want to run some music before the concert starts? No problem! The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.

Speaking of impressive sound, the DAVE 10 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when you want to use the sound system for lectures, speeches, or a panel discussion from time to time. The DAVE 10 G4X uses new dome tweeter and waveguides for homogeneous dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, distortion-free sound - but also minimal air flow noise thanks to the optimised bass reflex system in the subwoofer.

The DAVE 10 G4X sound system is a 2.1 stereo sound system with two selectable stereo presets. Typically, you will place the two satellites to the left and right of the room, or on a stage. The classic stereo preset is intended for this purpose. For a particularly space-saving setup, however, the two satellites can also be mounted on a single T-stand above the subwoofer. Since the satellites are very close together in this case, interference is inevitable. For this purpose, there is a special preset (Cluster Mode) with a special M/S distribution to reproduce the stereo signal without interference. This way, you also get more headroom and directivity.

LD Systems has thought of all common applications when it comes to accessories. These range from transport bags, a trolley and the T-stand mentioned above, a pole-mount stand, or a wall mount for the satellite.

Specifications

Portable PA System
Speaker Configuration 2 x 3-Way Loudspeaker with Subwoofer
Number of Input Channels 6 (2 x Mono, 2 x Stereo)
Amplifier Power Rating 340 W RMS (AC Power)
680 W Peak (AC Power)
Amplifier Class Class-D
Impedance HF Driver/MF Driver:
4 Ohms
Speakers
Enclosure Type Speaker:
Bass-Reflex
Subwoofer:
Bass-Reflex
HF Driver 1 x 1" / 2.5 cm Tweeter (per Speaker)
HF Voice Coil 1" / 2.5 cm
MF Driver 2 x 4" / 10.2 cm Cone (per Speaker)
MF Voice Coil 1" / 2.5 cm
Subwoofer Driver 10" / 254 mm Woofer
Subwoofer Voice Coil 2" / 50.8 mm
Magnet MF Driver/LF Driver:
Ferrite
HF Driver:
Neodymium
Signal Processing
Crossover 110 Hz
Input Pad None
AEQ Yes
Semi-Parametric AEQ None
Effects 3 x Reverb
Dynamic Processing Peak Limiter
Frequency Response 37 Hz to 20 kHz -10 dB
Maximum SPL 114 dB (Continuous)
120 dB (Peak)
Coverage Angle 100° H x 60° V
I/O Impedance speakON Output:
4 Ohms
Protections Output Limiter, Overload, Short Circuit
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
1 x Stereo RCA TS Female Unbalanced Line Input
1 x TOSLINK Optical Female S/PDIF Input
2 x speakON NL4 Female Speaker Output
USB None
Mobile App Compatible No
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Network I/O None
Wireless Connectivity Bluetooth
Bluetooth Yes
Bluetooth Profiles A2DP
Pairing Manual
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
Power Consumption 120 VA (Max)
AC Power I/O 1 x IEC Input
Physical
Transport Options Subwoofer:
1 x Handle (Each Side)
Speaker:
1 x Handle (Rear)
Mounting Subwoofer:
1 x M20 Pole Socket (Top)
Speaker:
1 x 0.6" / 16 mm Pole Socket (Bottom)
Cooling Heat Sink
Construction Material MDF
Environmental Protection None
Dimensions Subwoofer:
17.3 x 17.2 x 13.8" / 440 x 436 x 350 mm
Speaker:
13.6 x 6.7 x 5.9" / 345 x 170 x 150 mm (without Stand)
Weight Subwoofer:
36.4 lb / 16.5 kg
Speaker:
8.8 lb / 4 kg

In The Box

  • LD Systems DAVE 10 G4X Compact 2.1 680W 10" Powered PA System with Bluetooth Streaming
  • Power Cord
