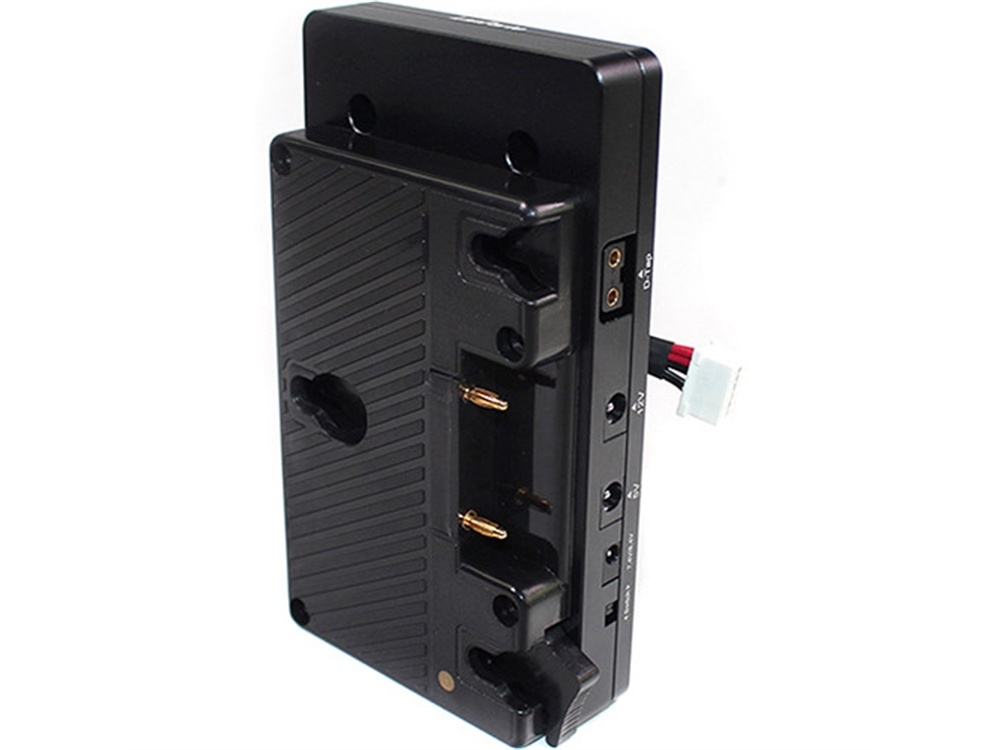

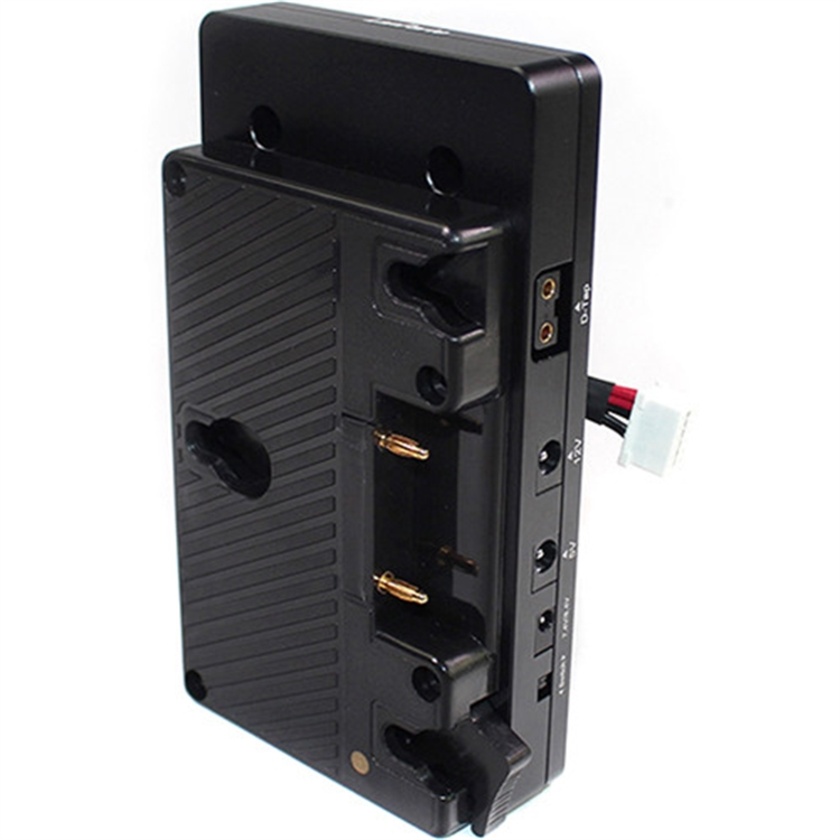

Lanparte ABP-04 Gold Mount Battery Pinch for URSA Mini

Product #58142 | SKU ABP-04 | Lanparte
Special Order Usually ships in 8 - 12 weeks what does this mean?
Our Price $619
Special Order Usually ships in 8 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 8 - 12 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 8 - 12 weeks
Click & Collect

Overview

Battery-Charging Input, USB Charging Port for Mobile Devices, Multiple DC Power Outputs

Description

The Lanparte ABP-04 Gold Mount Battery Pinch for URSA Mini is the power solution features multiple power outputs for BMD Ursa mini. With the connection cable and screws connector, this battery plate can be mounted onto Ursa mini directly. This unit provides effective power and video signal management. It provides 12, 7.4, and 5V DC of power output to different rig components. A barrel jack power input can charge the battery while tethered. It can power device without battery by pluging the AC charging adapter directly in to 15/AC jack.

Key Features

  • Battery-Charging Input
  • USB Charging Port for Mobile Devices
  • Multiple DC Power Outputse back of the camera with V mount

Specifications

Output Power 5, 7.4, and 12 VDC
Connectors 1 x 12-pin DC, URSA Mini (pigtail)
2 x DC, D-Tap
1 x DC, 5 VDC
1 x DC, 7.4 VDC
1 x DC, 12 VDC
1 x DC, 15 VAC
1 x USB, charging port
Dimensions 14.6 x 8.3 x 3.2 cm
Weight 283 g

In The Box

  • Lanparte ABP-04 Gold Mount Battery Pinch for URSA Mini
  • AC adaptor
  • 4 x DC cables
  • 1 x DC cable
  • D tap 4-pin xlr power adapter cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Lanparte ABP-04 Gold Mount Battery Pinch for URSA Mini
  • Manufacturer: Lanparte
  • Model: ABP-04
  • SKU: ABP-04
  • RM Product #: 58142
  • Warranty: 1 year manufacturer warranty
