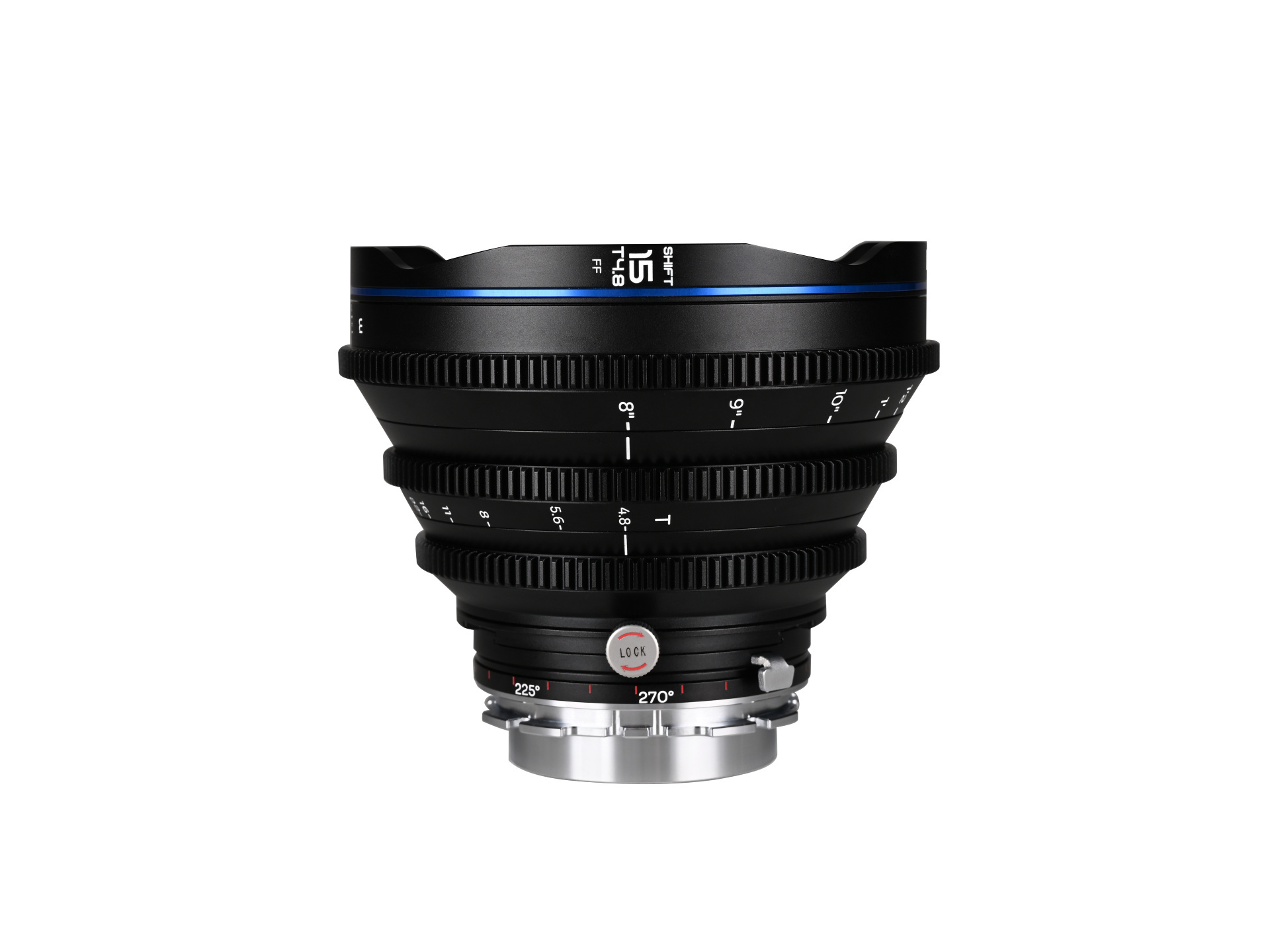

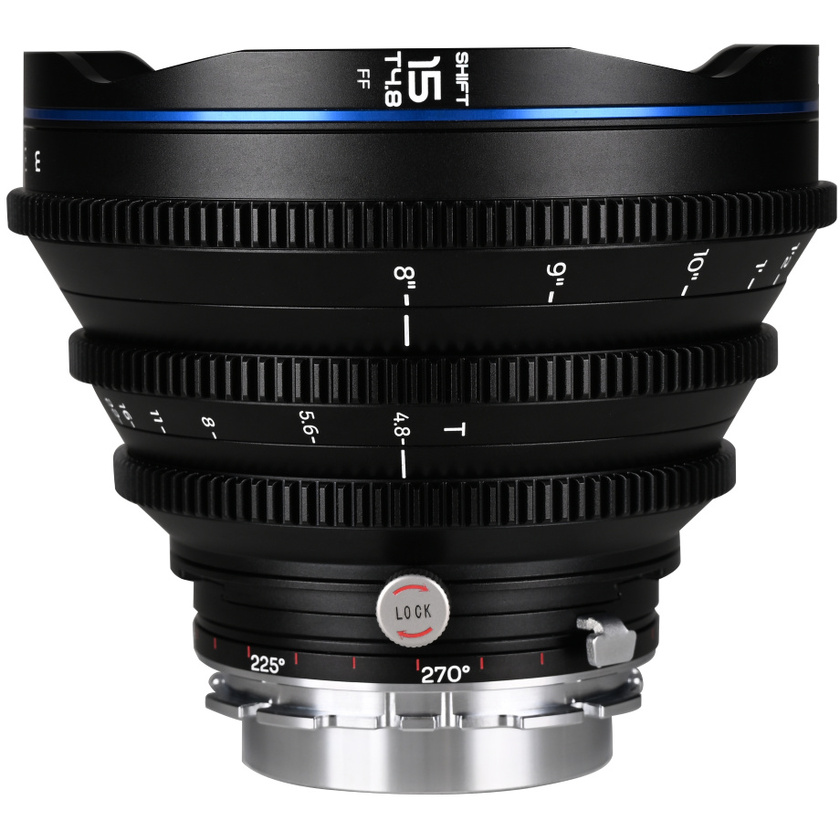

Laowa 15mm T4.8 Zero-D Shift Cine Lens (ARRI PL)

Product #120795 | SKU VE1548PL | Laowa
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $3,959
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • Full Frame & VV | T4.8 to T22 Aperture
  • ±11mm Shift Function
  • Zero-D Design, 65.2mm Image Circle
  • 130.4° FOV with Shift, 14-Blade Aperture
  • 17 Elements to 11 Groups
  • 7.9" Minimum Focusing Distance

Description

Capture wide-angle shots with the Laowa 15mm T4.8 Zero-D Shift Cine Lens. The 15mm lens can be used with ARRI PL mount cameras sporting full-frame or VisaVision image sensors thanks to its 65.2mm image circle, making it compatible with the RED V-RAPTOR 8K VV, the ARRI ALEXA, and the Blackmagic URSA cine cameras. The lens features a ±11mm shift capability on VistaVision sensors, which helps cinematographers correct converging lines and maintain straight architecture/interiors.

The lens construction consists of 17 elements in 11 groups, a 14-blade aperture, and an aperture range of T4.8 to T22. Its compact focal length and 130.4° shifted FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 7.9" away with ease. The lenses in the series feature interchangeable lens mounts and include a shim set for calibration. Transport it all with the included hard case.

Specifications

Maximum Aperture T4.8
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Vista Vision
Image Circle 65.2 mm
Angle of View Full Frame
Horizontal: 130.4°
Horizontal: 110°
Focus Scales Metric, Imperial
Optical Design 17 Elements in 11 Groups
Filter Thread 114 mm
Minimum Focus Distance 7.9" / 20 cm
Diaphragm Blades 14
Image Stabilisation No
Lens Mounting No
Gear Standard 0.8 MOD
Gear Rotation Not Specified by Manufacturer
Electronic Communication No
Coating No
Environmental Resistance No
Diameter 4.7" / 119.2 mm
Length 3.7" / 93.4 mm
Weight 2.54 lb / 1.15 kg

In The Box

  • Laowa 15mm T4.8 Zero-D Shift Cine Lens (ARRI PL)
  • Shim Set
  • Screwdriver
  • Hard Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Laowa 15mm T4.8 Zero-D Shift Cine Lens (ARRI PL)
  • Manufacturer: Laowa
  • Model: VE1548PL
  • SKU: VE1548PL
  • RM Product #: 120795
  • Zoom or Prime Lens: Prime
  • Lens Mount: Arri PL
  • Maximum Aperture: T4.8
  • Focus Type: Manual Focus
  • Lens Type: Tilt Shift
  • Warranty: 1 year manufacturer warranty
