The Laowa Proteus 2x Anamorphic 28 & 100mm T2 Lens Bundle offers two cinema lenses specifically designed for capturing high-definition video with a 2x anamorphic squeeze on cameras equipped with S35+ sensors. This includes popular models like the ALEXA 35 and RED V-RAPTOR. These anamorphic primes feature interchangeable PL and EF lens mounts, focus marks in feet, a wide aperture range from T2 to T22, 10 iris blades, a 2x anamorphic squeeze, a 114mm outer diameter, a 105mm front filter thread, and the ability to produce silver lens flares. The lenses are compatible with ARRI PL lens mounts, which can be easily switched out for the included EF mount bayonet. To ensure safe storage and transportation, the lenses are packed in a durable hard case.

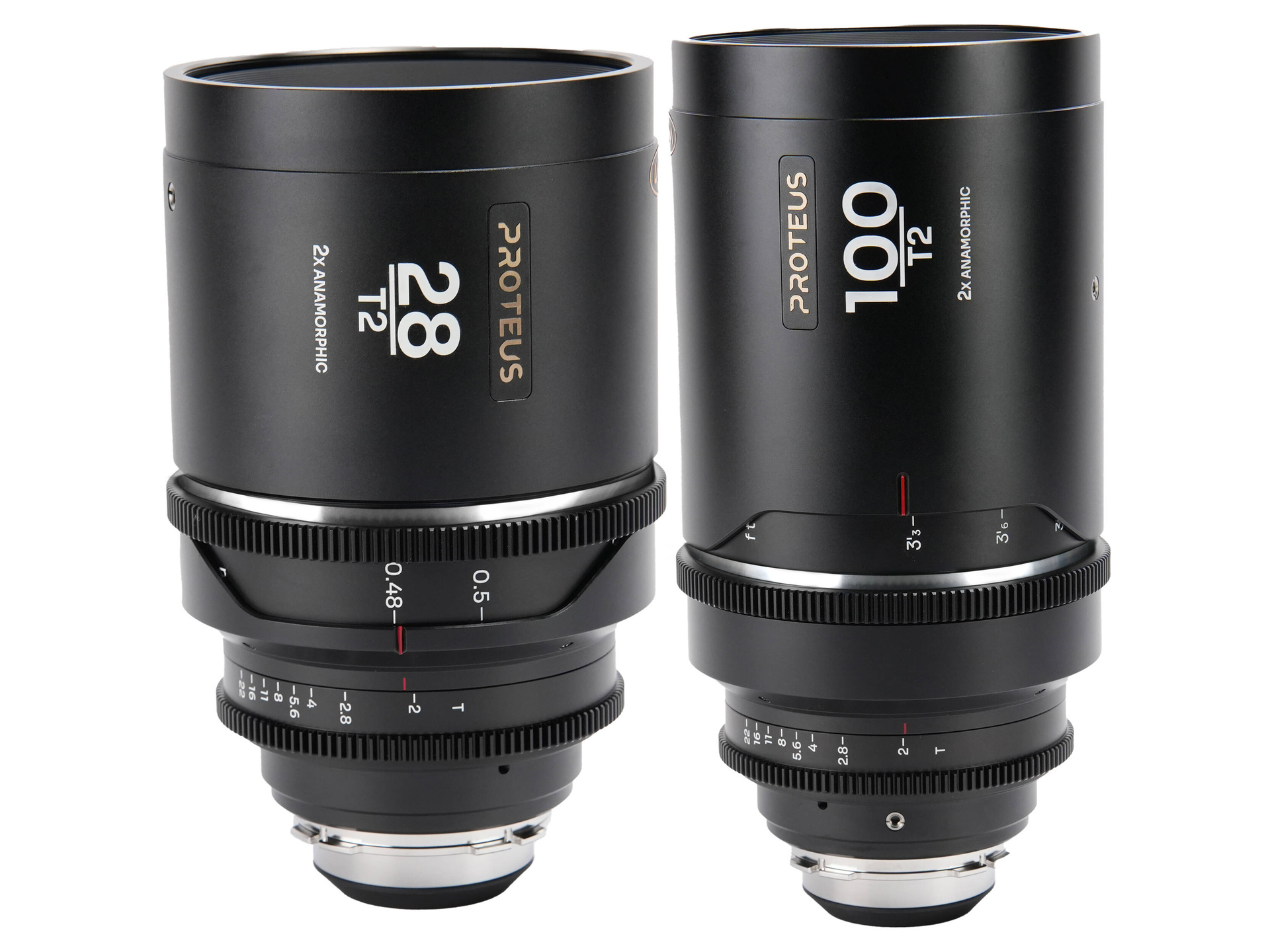

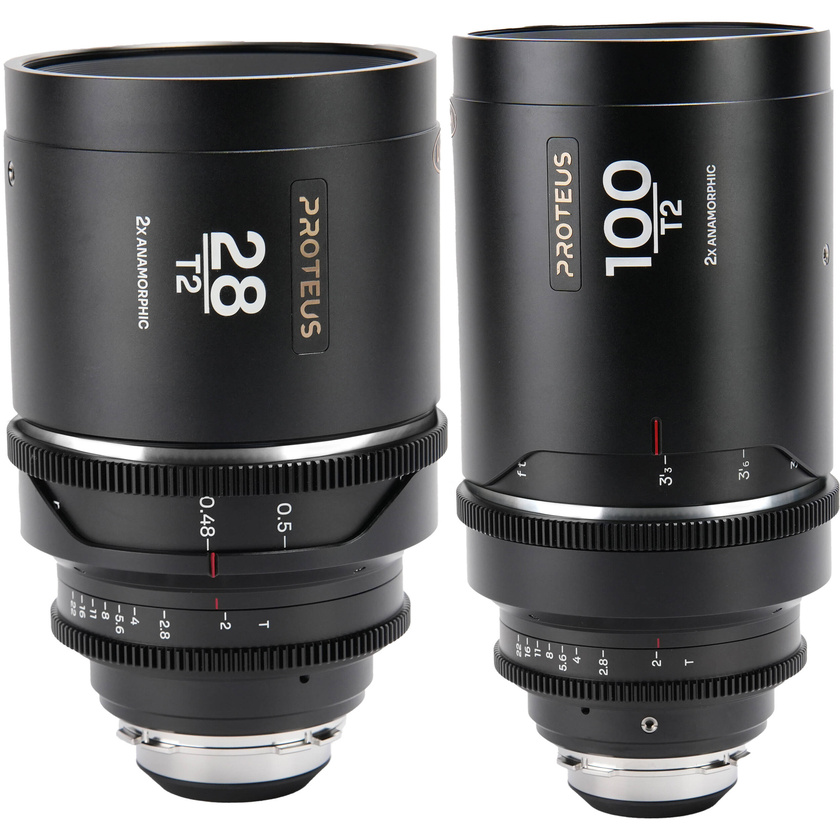

Laowa Proteus 2x Anamorphic 28 & 100mm T2 Lens Bundle (PL/EF, Feet, Silver Flare)
In Stock with Supplier
Usually ships in 2 - 3 weeks
Our Price
$18,349
In Stock with Supplier
Usually ships in 2 - 3 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 weeks.
Deliver to
Auckland
for $19
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 weeks
Click & Collect
Features
- Anamorphic 2-Lens Set for S35 Sensors
- 28 & 100mm Prime Lenses
- T2 to T22 Aperture Range
- Silver Anamorphic Lens Flares
- 2x Anamorphic Squeeze Ratio
- Focus Marks in Feet
Description
Specifications
Key Specs | |
Focal Length | 28mm |
Maximum Aperture | T2 |
Lens Mount | ARRI PL Canon EF with Included Adapter |
Lens Format Coverage | Super35/APS-C |
Filter Thread | 105 mm |
Image Stabilisation | No |
Electronic Communication | No |
Maximum Aperture | T2 |
Minimum Aperture | T22 |
Lens Mount | ARRI PL Canon EF with Included Adapter |
Interchangeable Mount | Yes |
Lens Format Coverage | Super35/APS-C |
Image Circle | 25.9 mm |
Angle of View | Super 35 Horizontal: 85.6 to 42.2° |
Focus Scales | Imperial |
Optical Design | 17 Elements in 15 Groups |
Filter Thread | 105 mm |
Minimum Focus Distance | From Unspecified Point in Lens: 18.9" / 48 cm |
Maximum Magnification Ratio | Not Specified by Manufacturer |
Diaphragm Blades | 10 |
Image Stabilisation | No |
Lens Mounting | 1x 3/8"-16 (via Included Support Foot) |
Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD |
Gear Rotation | Focus: 300° Iris: 60° |
Electronic Communication | No |
Diameter | Front: 4.5" / 114 mm Maximum: 4.7" / 119.6 mm |
Length | 7.2" / 182 mm |
Weight | 5.3 lb / 2.4 kg |
Key Specs | |
Focal Length | 100mm |
Maximum Aperture | T2 |
Lens Mount | ARRI PL Canon EF with Included Adapter |
Lens Format Coverage | Super35/APS-C |
Filter Thread | 105 mm |
Image Stabilisation | No |
Electronic Communication | No |
Maximum Aperture | T2 |
Minimum Aperture | T22 |
Lens Mount | ARRI PL Canon EF with Included Adapter |
Interchangeable Mount | Yes |
Lens Format Coverage | Super35/APS-C |
Image Circle | 25.9 mm |
Angle of View | Super 35 Horizontal: 29.1 to 12.3° |
Focus Scales | Imperial |
Optical Design | 18 Elements in 14 Groups |
Filter Thread | 105 mm |
Minimum Focus Distance | From Unspecified Point in Lens: 39.0" / 99 cm |
Maximum Magnification Ratio | Not Specified by Manufacturer |
Diaphragm Blades | 10 |
Image Stabilisation | No |
Lens Mounting | 1x 3/8"-16 (via Included Support Foot) |
Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD |
Gear Rotation | Focus: 300° Iris: 60° |
Electronic Communication | No |
Diameter | Front: 4.5" / 114 mm Maximum: 4.6" / 116 mm |
Length | 9.4" / 240 mm |
Weight | 6.2 lb / 2.8 kg |
In The Box
- Venus Optics Laowa Proteus 2x Anamorphic 28mm T2 Lens (PL/EF, Feet, Silver Flare)
- Venus Optics Laowa Proteus 2x Anamorphic 100mm T2 Lens (PL/EF, Feet, Silver Flare)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Laowa Proteus 2x Anamorphic 28 & 100mm T2 Lens Bundle (PL/EF, Feet, Silver Flare)
- Manufacturer: Laowa
- Model: VE28100PLEFS
- SKU: VE28100PLEFS
- RM Product #: 118677
- Lens Type: Anamorphic
- Maximum Aperture: T2.0
- Lens Mount: Arri PL
- Zoom or Prime Lens: Prime
- Warranty: 1 year manufacturer warranty
