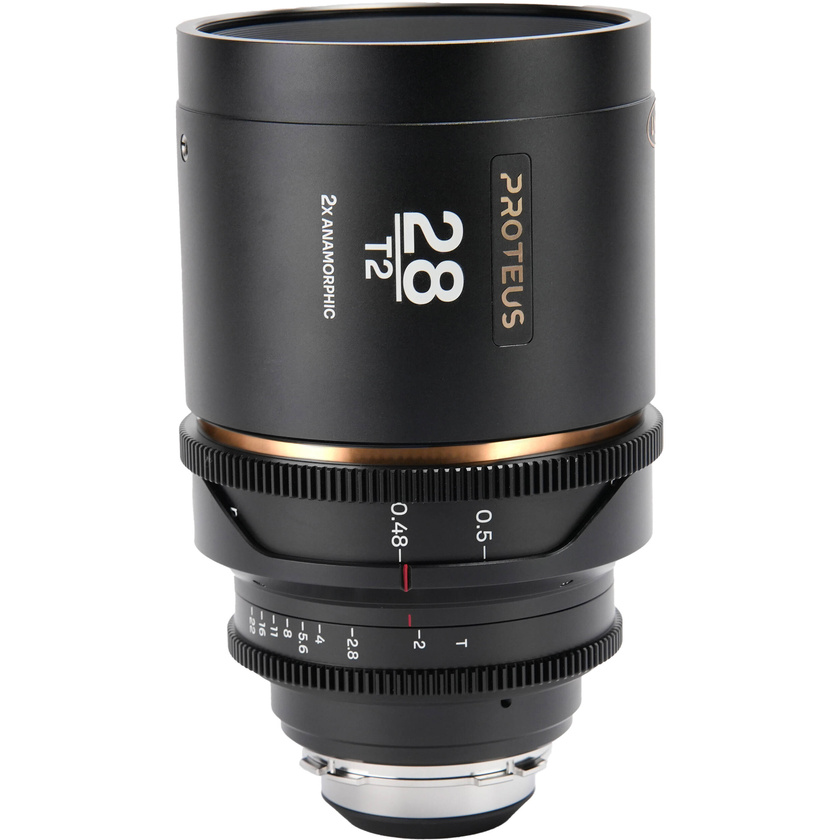

Laowa Proteus 2x Anamorphic 28mm T2 Lens (PL/EF, Feet, Amber Flare)

Product #118672 | SKU VE2820PLEFA | Laowa
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
Our Price $8,349
In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • Compact Anamorphic Lens for S35 Sensors
  • T2 to T22 Aperture Range
  • 2x Anamorphic Squeeze Ratio
  • Amber Anamorphic Lens Flares
  • 114mm Front Diameter
  • Interchangeable PL and EF Mounts

Description

The Laowa Proteus 2x Anamorphic 28mm T2 Lens is a compact and slender anamorphic lens that is designed to capture high-definition video with a 2x anamorphic squeeze. It is compatible with cameras that have S35+ sensors like the ALEXA 35 and RED V-RAPTOR. With a focal length of 100mm, this lens offers interchangeable PL and EF lens mounts, allowing for versatility in mounting options. Its aperture range from T2 to T22 provides a deep depth of field, while the 10 iris blades create a shallow depth of field and soft bokeh effect. The 2x anamorphic squeeze adds a vintage, cinema-style anamorphic look to your footage. Additionally, by using an optional 1.4x full-frame expander adapter, the Proteus lenses can cover a full-frame sensor.

This 28mm prime lens boasts a minimum focus distance of 18.9 inches and possesses anamorphic characteristics like high contrast, amber lens flares, and an expansive 85.6° horizontal field of view. It also offers measurement markings in feet, 0.8 MOD cine gears on the focus and aperture rings for precise control, a 114mm front diameter, and a 105mm filter thread. The lens comes with both PL and EF mounts, a hard case for protection and transport, a support foot, and a tool kit for convenience.

Specifications

Key Specs
Focal Length 28mm
Maximum Aperture T2
Lens Mount ARRI PL
Canon EF with Included Adapter
Lens Format Coverage Super35/APS-C
Filter Thread 105 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T2
Minimum Aperture T22
Lens Mount ARRI PL
Canon EF with Included Adapter
Interchangeable Mount Yes
Lens Format Coverage Super35/APS-C
Image Circle 25.9 mm
Angle of View Super 35
Horizontal: 85.6 to 42.2°
Focus Scales Imperial
Optical Design 17 Elements in 15 Groups
Filter Thread 105 mm
Minimum Focus Distance From Unspecified Point in Lens: 18.9" / 48 cm
Maximum Magnification Ratio Not Specified by Manufacturer
Diaphragm Blades 10
Image Stabilisation No
Lens Mounting 1x 3/8"-16 (via Included Support Foot)
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 300°
Iris: 60°
Electronic Communication No
Diameter Front: 4.5" / 114 mm
Maximum: 4.7" / 119.6 mm
Length 7.2" / 182 mm
Weight 5.3 lb / 2.4 kg

In The Box

  • Laowa Proteus 2x Anamorphic 28mm T2 Lens (PL/EF, Feet, Amber Flare)
  • EF-Mount Bayonet
  • 3/8"-16 Support Foot
  • Tool Kit
  • Front Cap
  • Rear Cap
  • Hard Case
