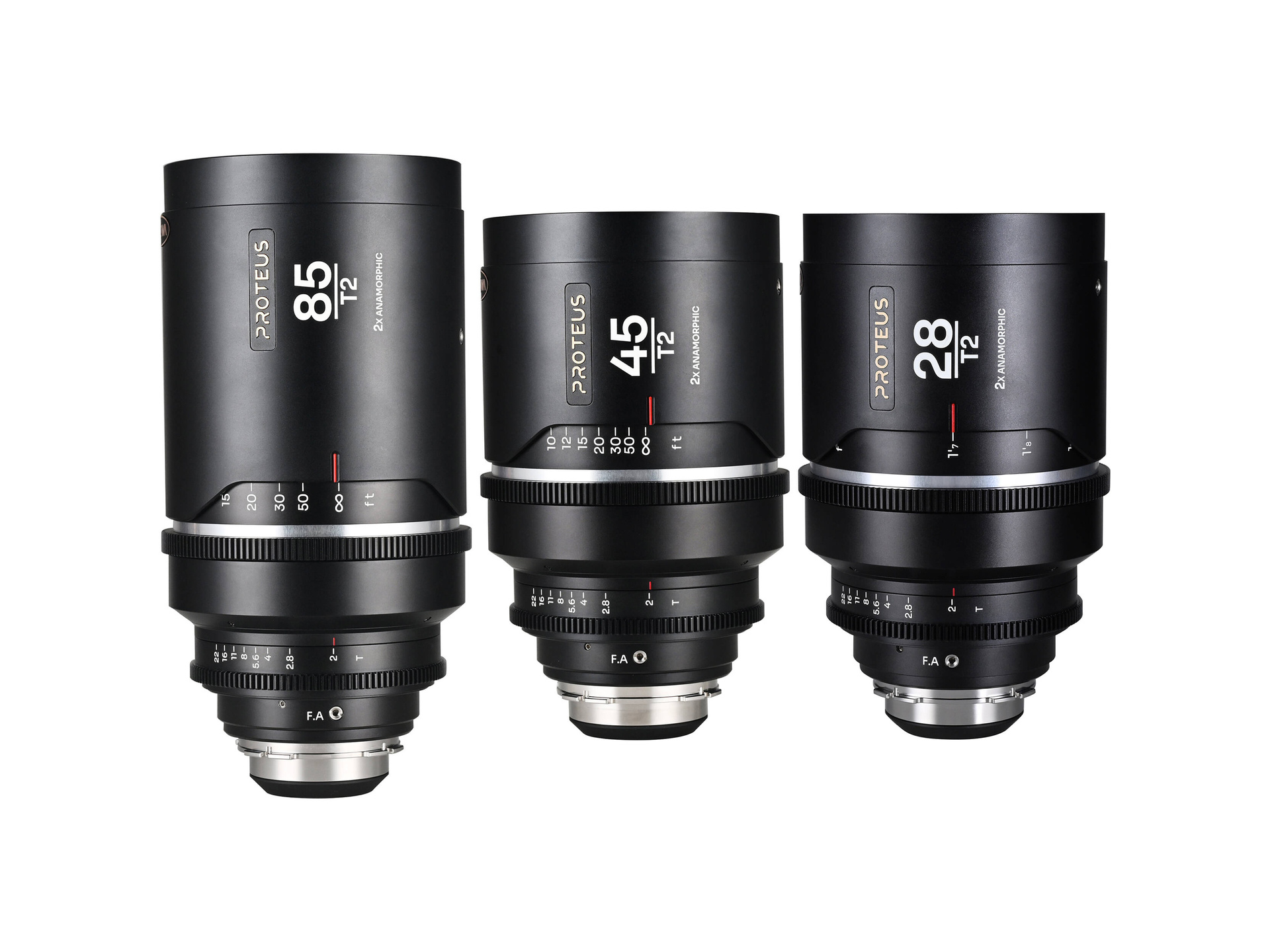

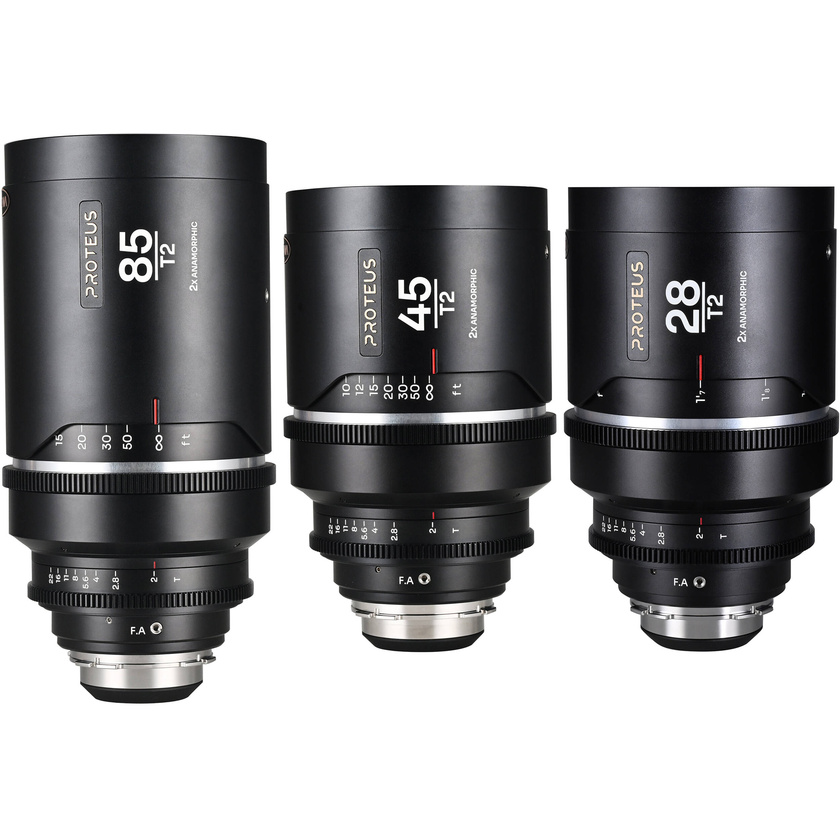

Laowa Proteus Flex 28mm/45mm/85mm 2X Anamorphic 3-Lens Bundle (PL/EF Mount, Feet)

Product #117995 | SKU VE284585PLEF-F | Laowa
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $48,599
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $26 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Patented anamorphic design
  • Constant 2X squeeze ratio
  • T2 Large Aperture
  • Outstanding sharpness
  • Close focusing distance
  • Pleasant oval bokeh

Description

Introducing the Laowa Proteus Flex 28mm/45mm/85mm 2X Anamorphic 3-Lens Bundle. This unique lens bundle offers a user interchangeable flare feature, making it highly flexible and economical for any production. With its modular design, the Proteus Flex provides 4 different flare options - amber, silver, blue, and clear - to suit your specific needs. By default, the lens comes in silver flare.

In addition to the colored flare versions, the Proteus Flex also includes a new flare coating called Clear Flare. This coating produces minimal horizontal flare, perfect for cinematographers desiring a cleaner and more elegant look. The flare module can be effortlessly installed, swapped, and screw-locked into the precision crafted main Proteus body. This interchangeable process takes just 10 minutes and does not require any further optical calibration.

Specifications

Laowa Proteus Flex 28mm T2 2X Anamorphic Lens (PL/EF Mount, Metres)
Focal length 28mm
Aperture range T2-22
Format Super35
Image circle 25.92 x 21.6mm
AoV (Horizontal) 85.6°
AoV (Vertical) 42.2°
Lens structure 17 elements in 15 groups
Aperture blades 10 blades
Flange distance ARRI PL: 52mm
Canon EF: 44mm
Focus throw 300°
Aperture throw 60°
Minimum focusing distance 48cm
Focus indicator Imperial
In-focus driving mode Manual (MF)
Gear mod 0.8m
Dimensions for filter thread 105mm
Front diameter 114mm
Flare colour Amber/Blue/Silver/Clear
Dimensions 119.6 x 182mm
Weight 2.4kg
Mounts ARRI PL (Interchangeable EF bayonet included)
Laowa Proteus Flex 45mm T2 2X Anamorphic Lens (PL/EF Mount, Metres)
Focal length 45mm
Aperture range T2-22
Format Super35
Image circle 25.92 x 21.6mm
AoV (Horizontal) 59.8°
AoV (Vertical) 27°
Lens structure 17 elements in 14 groups
Aperture blades 10 blades
Flange distance ARRI PL: 52mm
Canon EF: 44mm
Focus throw 300°
Aperture throw 60°
Minimum focusing distance 55cm
Focus indicator Imperial
In-focus driving mode Manual (MF)
Gear mod 0.8m
Dimensions for filter thread 105mm
Front diameter 114mm
Flare colour Amber/Blue/Silver/Clear
Dimensions 119.6 x 182mm
Weight 2.4kg
Mounts ARRI PL (Interchangeable EF bayonet included)
Laowa Proteus Flex 85mm T2 2X Anamorphic Lens (PL/EF Mount, Metres)
Focal length 85mm
Aperture range T2-22
Format Super35
Image circle 25.92 x 21.6mm
AoV (Horizontal) 33.9°
AoV (Vertical) 14.5°
Lens structure 18 elements in 13 groups
Aperture blades 10 blades
Flange distance ARRI PL: 52mm
Canon EF: 44mm
Focus throw 300°
Aperture throw 60°
Minimum focusing distance 82cm
Focus indicator Imperial
In-focus driving mode Manual (MF)
Gear mod 0.8m
Dimensions for filter thread 105mm
Front diameter 114mm
Flare colour Amber/Blue/Silver/Clear
Dimensions 116 x 240mm
Weight 2.95kg
Mounts ARRI PL (Interchangeable EF bayonet included)

In The Box

  • Laowa Proteus Flex 28mm T2 2X Anamorphic Lens (PL/EF Mount, Feet)
  • Laowa Proteus Flex 45mm T2 2X Anamorphic Lens (PL/EF Mount, Feet)
  • Laowa Proteus Flex 85mm T2 2X Anamorphic Lens (PL/EF Mount, Feet)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Laowa Proteus Flex 28mm/45mm/85mm 2X Anamorphic 3-Lens Bundle (PL/EF Mount, Feet)
  • Manufacturer: Laowa
  • Model: VE284585PLEF-F
  • SKU: VE284585PLEF-F
  • RM Product #: 117995
  • Zoom or Prime Lens: Prime
  • Lens Type: Anamorphic
  • Lens Mount: Arri PL
  • Maximum Aperture: T2.0
  • Focus Type: Manual Focus
  • Warranty: 1 year manufacturer warranty
