Logitech TAP Cat5e & Rally Bar - Graphite

Product #95727 | SKU TAP-RBG | Logitech
In stock Ships tomorrow
Our Price $11,299.00
In stock Ships tomorrow
- +

this item may be nonreturnable
Shipping & Availability
Ships tomorrow. Deliver to Auckland for $15.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Related Products

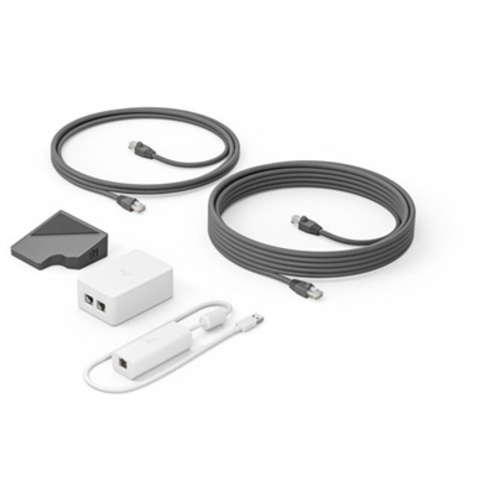

Logitech Tap Cat5e Extender / POE Kit Logitech Tap Cat5e Extender / POE Kit

Features

  • TAP Screen with Cat5e Connection
  • Natively Supports Zoom & Teams

Description

Logitech TAP Cat5e & Rally Bar - Graphite

Rally Bar Video Conferencing System. Built in compute natively supports Zoom and Teams, bundled with TAP Screen with Cat5e connection.

Specifications

Logitech Rally Bar All-In-One-VC System - Graphite
Camera
Resolution 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan Motorized ±25°
Tilt Motorized ±15°
Zoom 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal Field of View 90°
Horizontal Field of View 82.1°
Vertical Field of View 52.2°
Total Room Coverage 132.1° Horizontal x 82.2° Vertical
Speakers
Drivers 2x 70mm / 2.7 in
Output 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity 90+/-3dB SPL at 1W, ½ meter
THD 1kHz < 2%
Speaker Sampling Rate 48 kHz
Microphones
Frequency Response 90Hz – 16kHz
Sensitivity >-36dBFS +/-1dB @ 1Pa
Microphone Data Rate Output 48 kHz
Pickup Range 4.5m / 15 ft
Beamforming Elements Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio Processing AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise Suppression AI filter
Add-on Mics Supports up to 3 additional Rally Mic Pods for larger conference rooms
Interfaces
HDMI Out 2
HDMI In 1
USB 3.0 3x Type A, 1x Type C
Network 10/100/1G Ethernet
WiFi 802.11a/b/g/n/ac (MIMO)
External Mic Input Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control Bluetooth® Low Energy
Power & Cables
Power Supply Auto-sensing
Operating Voltage/Power 100-240V, 19V, 4.74A
Power Supply Dimensions 127mm x 51mm x 30mm
DC Cable 1.5m
AC Cable 1m
HDMI 1.4 Cable 2m
USB A to USB C 3.0 Cable 2.2m
Certifications & Compatibility
Certifications Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
Compatibility Plug and play USB connectivity with virtually any video conferencing application
Appliance Mode Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
Dimensions
Height 164 mm
Width 910 mm
Depth 130.5 mm
Lens Depth 28.8 mm
Weight 7.08 kg
Logitech TAP
Touch Screen 10.1” diagonal screen with 14° display angle Oleophobic and anti-glare coating 1280 x 800 resolution.
General Internal cable retention and strain relief system
Integrated ultrasonic speaker
Integrated PIR Motion Sensor
100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
Kensington Lock slots (2)
Ports & Interfaces USB 2.0/3.0/3.1 Type C (to meeting room host system)
USB 2.0 Type A (for accessory connection)
HDMI input (for 1080p video + audio content sharing)
3.5 mm 4 pole Headset Jack
Dimensions (mm) 58 (H) x 244 (W) x 179 (D)
Weight 1.25kg

In The Box

Logitech Rally Bar

  • Rally Bar
  • Power supply
  • AC power cord
  • HDMI cable
  • USB cable
  • Remote control
  • Lens caps for main camera and AI Viewfinder

Logitech TAP

  • TAP Touch Controller
  • HDMI 1.4a cable 2.0 m
  • VESA Mounting Screws (4)
  • Microfiber Cloth
  • Logitech Tap Receiver
  • Dongle Transceiver
  • 100-240v Power Supply with International Adaptor Set
  • 2.97 m Cat5e Cable
  • 7.0 m Cat5e Cable
  • Documentation

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Logitech TAP Cat5e & Rally Bar - Graphite
  • Manufacturer: Logitech
  • Model: TAP-RBG
  • SKU: TAP-RBG
  • RM Product #: 95727
