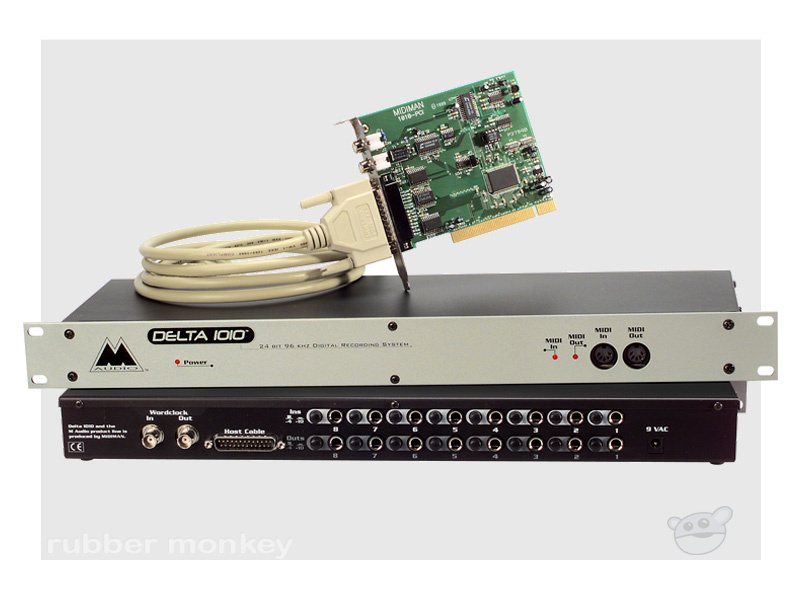

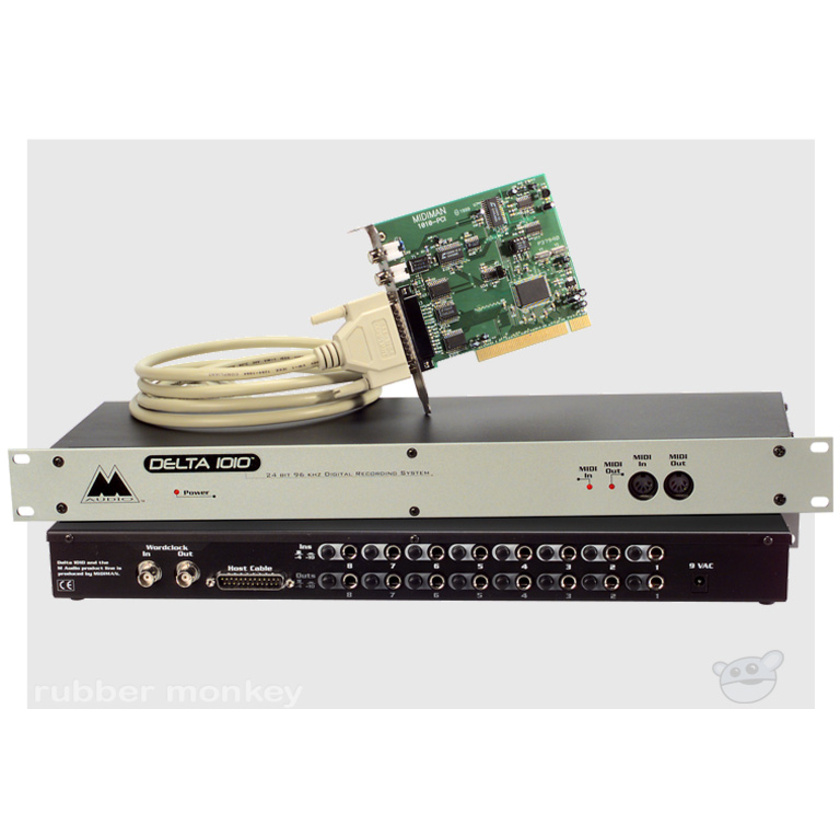

Recognized around the world as the top choice in host-based PCI digital audio solutions, the rack-mount Delta 1010 is designed to handle the needs of the most demanding project and professional studios. Superb engineering and ultra-high quality converters deliver fidelity surpassing systems that cost many times more. Multiple inputs accommodate recording numerous tracks simultaneously, including zero-latency monitoring for seamless overdubs. Multiple outs route individual tracks or soft synth/sampler timbres to a mixing console, or directly drive up to 7.1 surround sound systems. The analog outs also remain live for monitoring while mixing or transferring digital signals via S/PDIF. MIDI I/O rounds out everything you need to take advantage of today’s music software. Combine up to four Deltas* in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.
Key Features:
- 10 x 10 24-bit/96kHz full-duplex recording interface
- 8 x 8 analog I/O on balanced/unbalanced 1/4” TRS
- S/PDIF digital I/O (coaxial) with 2-channel PCM
- SCMS serial copy management control
- digital I/O supports surround-encoded AC-3 and DTS pass-through
- up to 24-bit/96kHz fidelity
- 1 x 1 MIDI I/O
- analog outs can directly drive up to 7.1 surround
- +4dBu/-10dBV operation individually switched on rack-mount unit
- word clock I/O for sample-accurate device synchronization
- software-controlled 36-bit internal DSP digital mixing/routing
- zero-latency monitoring
- Apple G5 compatible
- includes Ableton Live Lite music production software, so you can make music right away
Compatibility:
- ASIO 2
- MME
- Sound Manager
- OMS
- DirectX
- GSIF 2
- Mac OS X Core Audio / Core MIDI
System Requirements:
Mac:
- Windows 98SE*/Me*/2000 (SP4)*/XP** (SP2) / Vista SP2 (32Bit , 64 Bit) / Win7 (32Bit , 64 Bit)
- DirectX 9.0c
- Pentium III 500 MHz w/128MB RAM
* No ongoing updates/support for Windows 98SE, Me or 2000
** Home and Professional Edition only. Windows Media Center Edition is not supported.
*** Please check the minimum system requirements of your DAW software as they may be higher.
PC:
- OS 9.2.2* w/128MB RAM, Opcode OMS 2.3.8 for MIDI;
- Mac OS X 10.2.8, 10.3.8 w/256MB RAM
- Mac OS X 10.4.5, 10.5.1 w/512MB RAM
- G3/G4 500**
- G5 w/PCI-X expansion slots*** - Incompatible exceptions
* No ongoing updates/support for Mac OS 9 or Mac OS X 10.2.8
**G3/G4 accelerator cards not supported
***Intel based Mac Pro & DualCore G5 with PCI-Express expansion slots not supported
Please check the minimum system requirements of your DAW software as they may be higher.
More information about this product: (Click Here - M-Audio Website)
