Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet

Name: Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet
Brand: Midas
SKU: 123424
Price: 689.00 NZD
Availability: BackOrder

Product #123424 | SKU DN4816-O | Midas

| Write a review

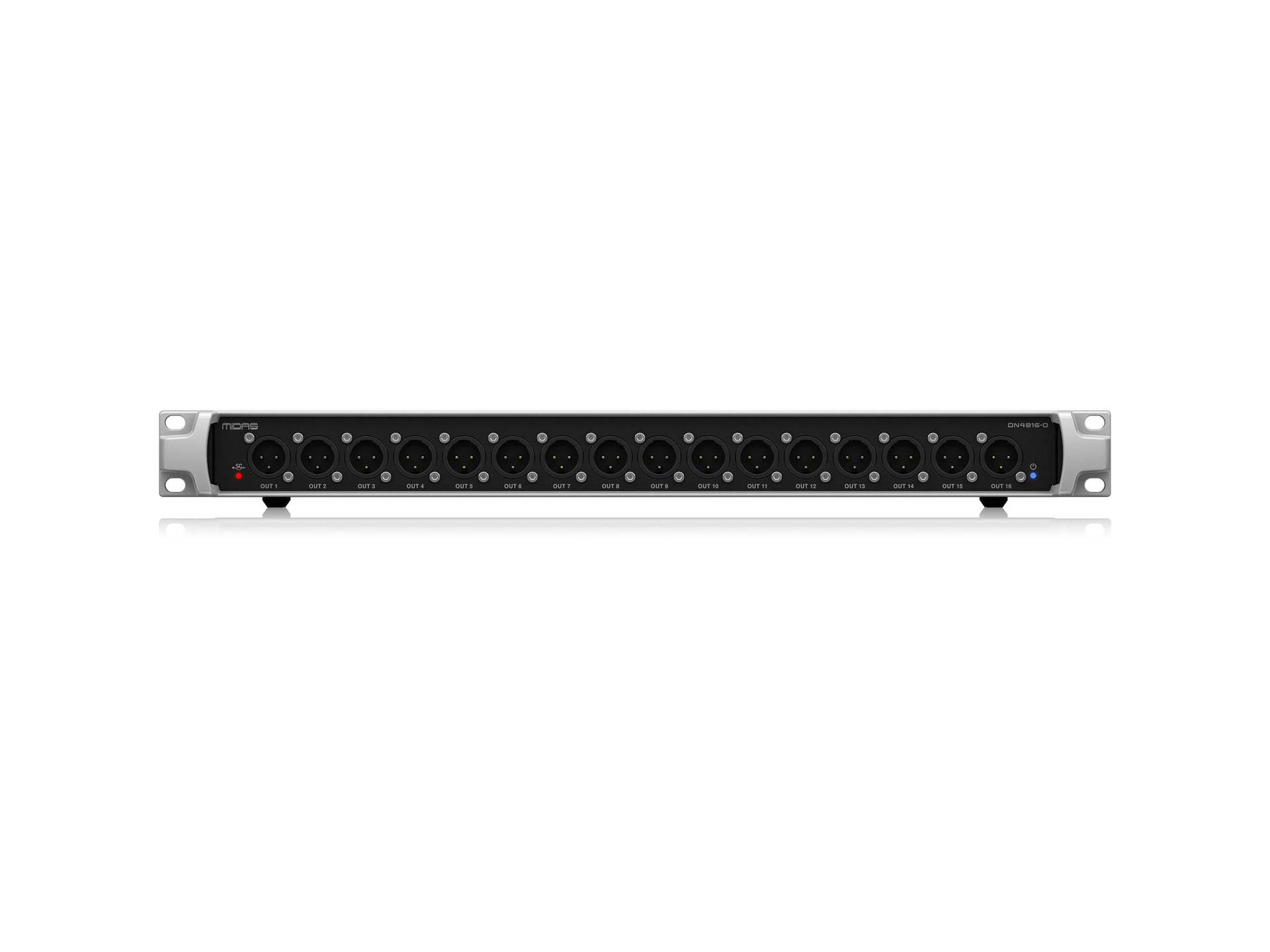

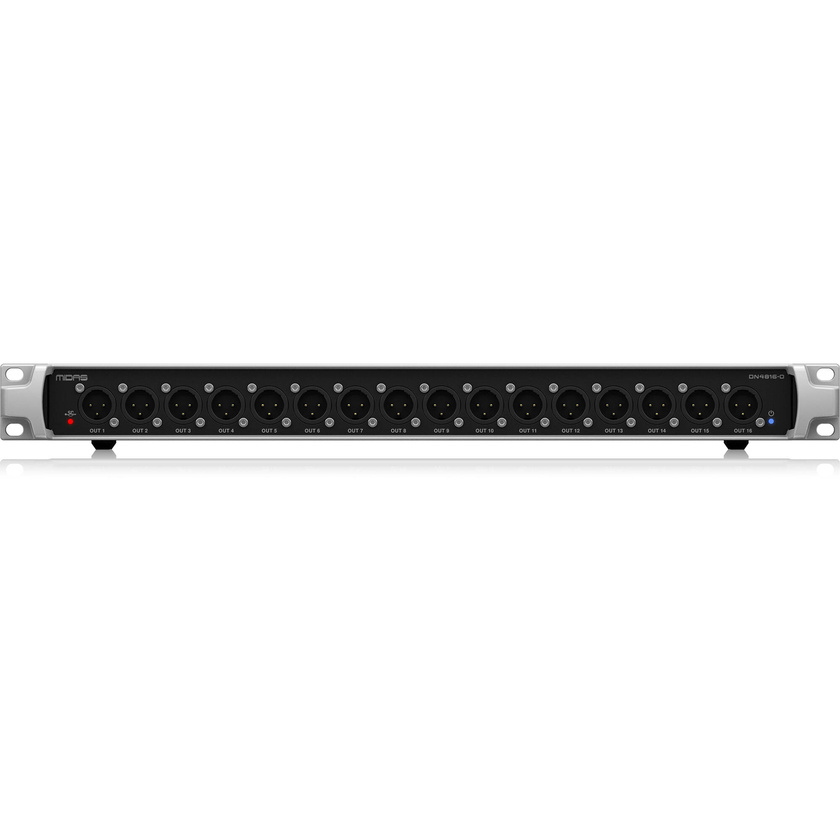

Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet

Our Price $689

Email me when stock arrives

Request price match

Talk to our experts

Features

Breakout Box with 16 Balanced XLR Out
Use with Other StageCONNECT Devices
32-Channel Audio Transmission
Uses Standard XLR Cables / DMX Cables
Low Latency, 24-Bit / 44.1/48 kHz PCM
Supports Bidirectional Audio

Description Specifications In The Box

Description

Enhance your audio setup by connecting extra line outputs to your monitor system or FOH (Front of House) console using the Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet. This 1 RU breakout box provides 16 analogue outputs, making it perfect for integrating wireless transmitters for in-ear monitoring.

StageConnect Interface and Connectivity

The StageConnect interface can link to additional StageConnect devices through a single XLR cable, enabling seamless multi-channel audio transmission. With a variety of input and output options, you benefit from scalable connectivity to suit the needs of any venue or production. Devices within the DN48XX Series can be conveniently daisy-chained, and they will automatically negotiate their respective channels to ensure optimal connectivity for your audio system.

Specifications


General
Compatibility	Midas StageConnect
Frequency Response	20 Hz to 20 kHz ±0.2 dB
Dynamic Range	110 dB
Crosstalk	110 dB (at 1 kHz, Adjacent Channels)
Noise	-90 dBu (20 Hz to 20 kHz Bandwidth)
Distortion	0.004% / 1 kHz / 0 dBu Out
Inputs / Outputs
USB I/O	1 x USB-B Female Input/Output
Audio I/O	16x XLR 3-Pin Line Output
Impedance	Output Unbalanced: 100 Ohms Balanced: 200 Ohms
Maximum Output Level	+21 dBu
Digital I/O	Ultranet: 2 x RJ45 Shielded Cat 5e Cable Maximum Length: 246.1' / 75 m StageConnect: 1 XLR Male, 1 XLR Female Shielded Balanced 110-Ohm DMX Cable: 131.2' / 40 m Maximum
Power
Power Source	AC Adapter with Power Brick (Included)
DC Input Power	12 VDC at 1.5 A
Power Consumption	9 W
Environmental
Environmental Resistance	No
Operating Temperature	41 to 113°F / 5 to 45°C
Physical
Dimensions	19 x 6.7 x 1.9" / 48.3 x 17 x 4.8 cm
Weight	4.9 lb / 2.2 kg

In The Box

Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet
12 VDC Power Adapter

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Midas DN4816-O Bus-Powered StageCONNECT Interface with 16 Outputs and Ultranet
Manufacturer: Midas
Model: DN4816-O
SKU: DN4816-O
RM Product #: 123424
Warranty: 1 year manufacturer warranty (Excluding CAT5EM which has a 1 year manufacturer warranty) view terms
