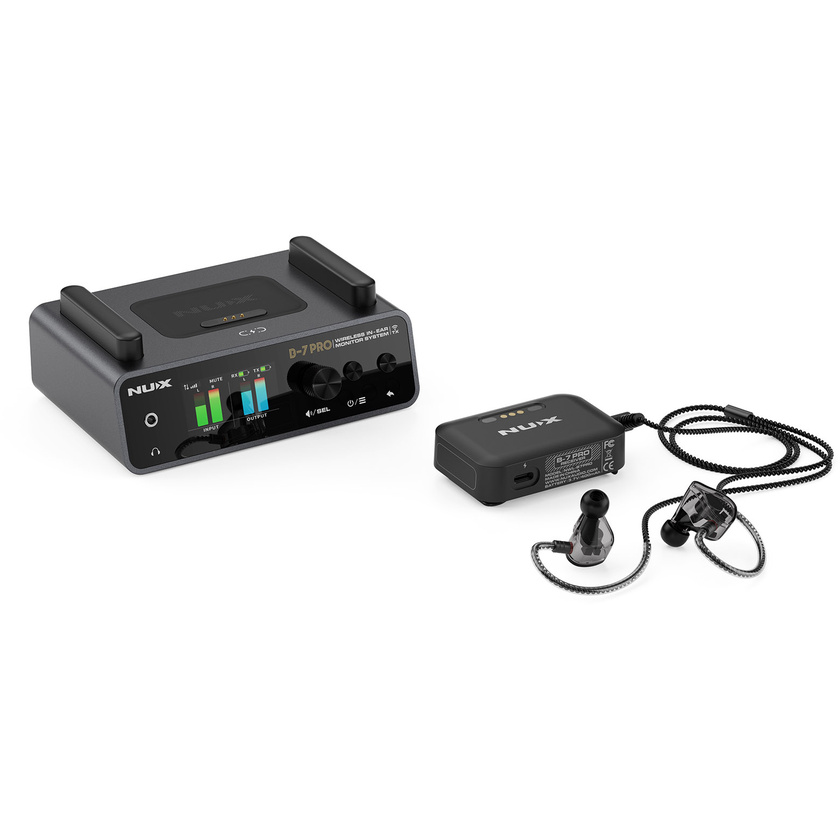

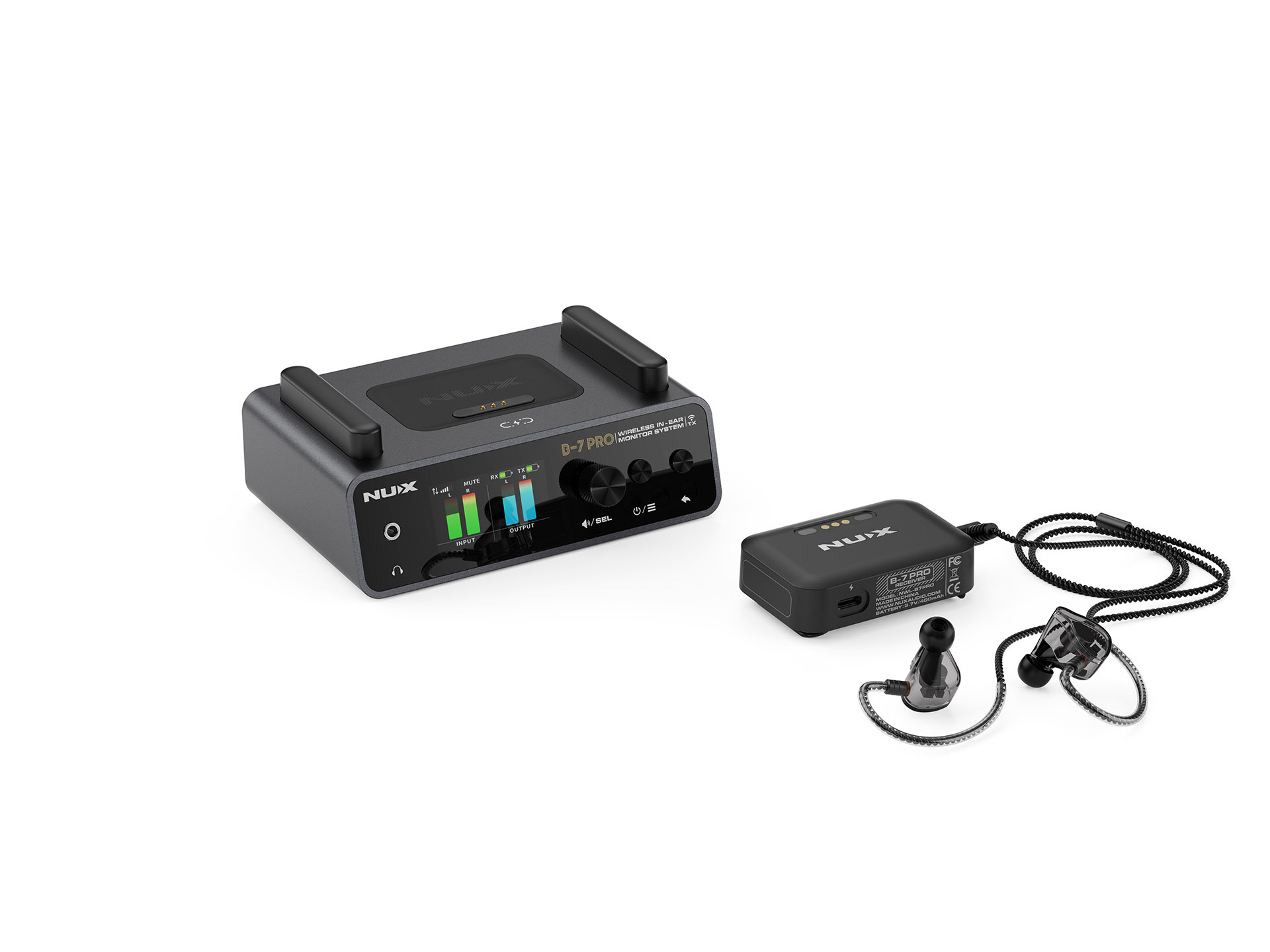

NUX B-7 PRO Wireless In-Ear Monitor System

Product #123188 | SKU B-7PRO | NUX
In stock Ships Monday
Our Price $699
In stock Ships Monday
- +

Shipping & Availability
Ships Monday. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 working days
Click & Collect

Features

  • Delivers 24-bit/48kHz sound
  • Latency as low as 7.3ms
  • Operates up to 50 meters
  • Customizable Color LCD Display

Description

The NUX B-7 PRO Wireless In-Ear Monitor System is a personal wireless in-ear monitor system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality stereo audio. The operation range is up to 50 meters (165 feet) with very low latency wireless transmitting.

B-7 PRO personal wireless in-ear monitor system delivers stereo audio signal on 2.4 GHz frequency range. That’s a global interference-free broadcasting range you can use everywhere without a signal break. With the 24-bit 48 kHz audio quality you will never experience unwanted sound degradation.

The user-friendly matching system makes it easier to use, just turn on the TX & RX and they will be paired with each other within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs.

Specifications

Operating Frequency Band 2400-2483.5MHz
Transmit Mode Frequency Hopping
RF Output Power 10mW E.l.R.P. max
Audio Quality 24bit/48kHz
Frequency Response 20Hz-20kHz
Latency 7.33ms(low latency setting)-10.85ms(default)-14.33ms(safe setting)
Unbalanced Input lmpedance 10kΩ
Balanced Input lmpedance 20kΩ
AUX Input Level 2.1 Vrms(8.7dBu) max
Balanced Input Level 9.8 Vrms(22dBu)max
Headphone output Impedance Minimum 13Ω
Headphone Maximum output power per channel 57mW (THD<0.1% RLOAD=16Ω,1kHz)
Channel separation -105dB
THD+N <0.01% typical
Dynamic Range 110dB A-weighted
Output level Adjustment Range Mute -86dB~+12dB
Auto-off It automatically turns off after 10 minutes of no connection or if the connection is lost
Built-in Battery Capacity Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, receiver 3.7V/400mAh)
Battery Lifetime TX: Up to 6 hours/ RX: Up to 6 hours
Power Requirements DC 9V, 1A min, negative tip power supplies(Transmitter)
Operation Range Up to 50m (165 feet) maximum
TX Dimesions 140mm97mm53mm (LWH)
TX Weight 525g
RX Dimensions 47mm71mm22mm (LWH)
RX Weight 51g

In The Box

  • NUX B-7 PRO Wireless In-Ear Monitor System
