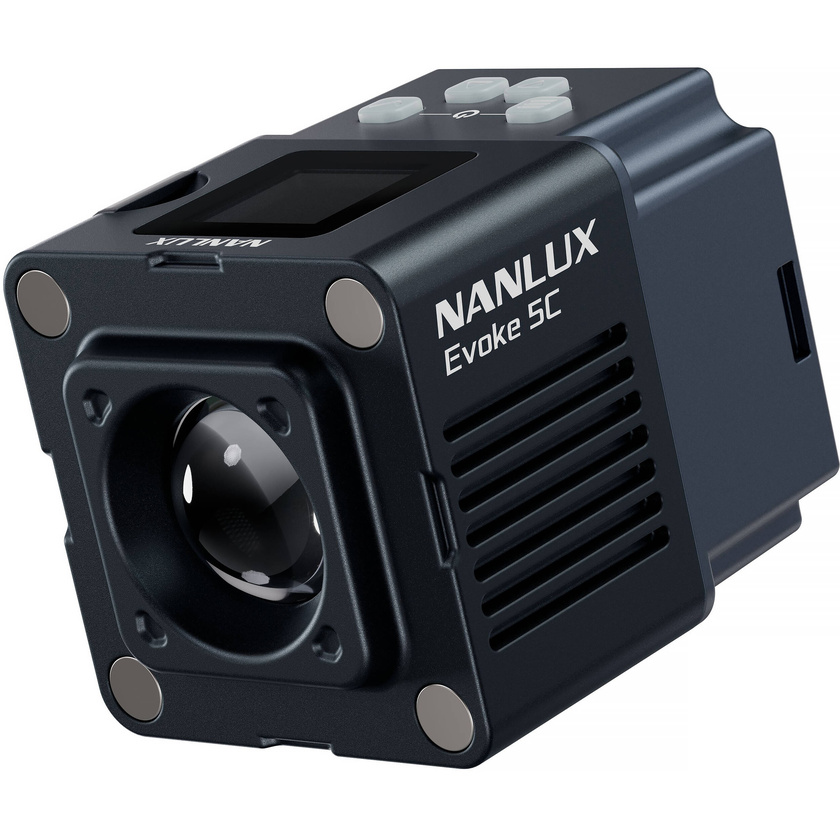

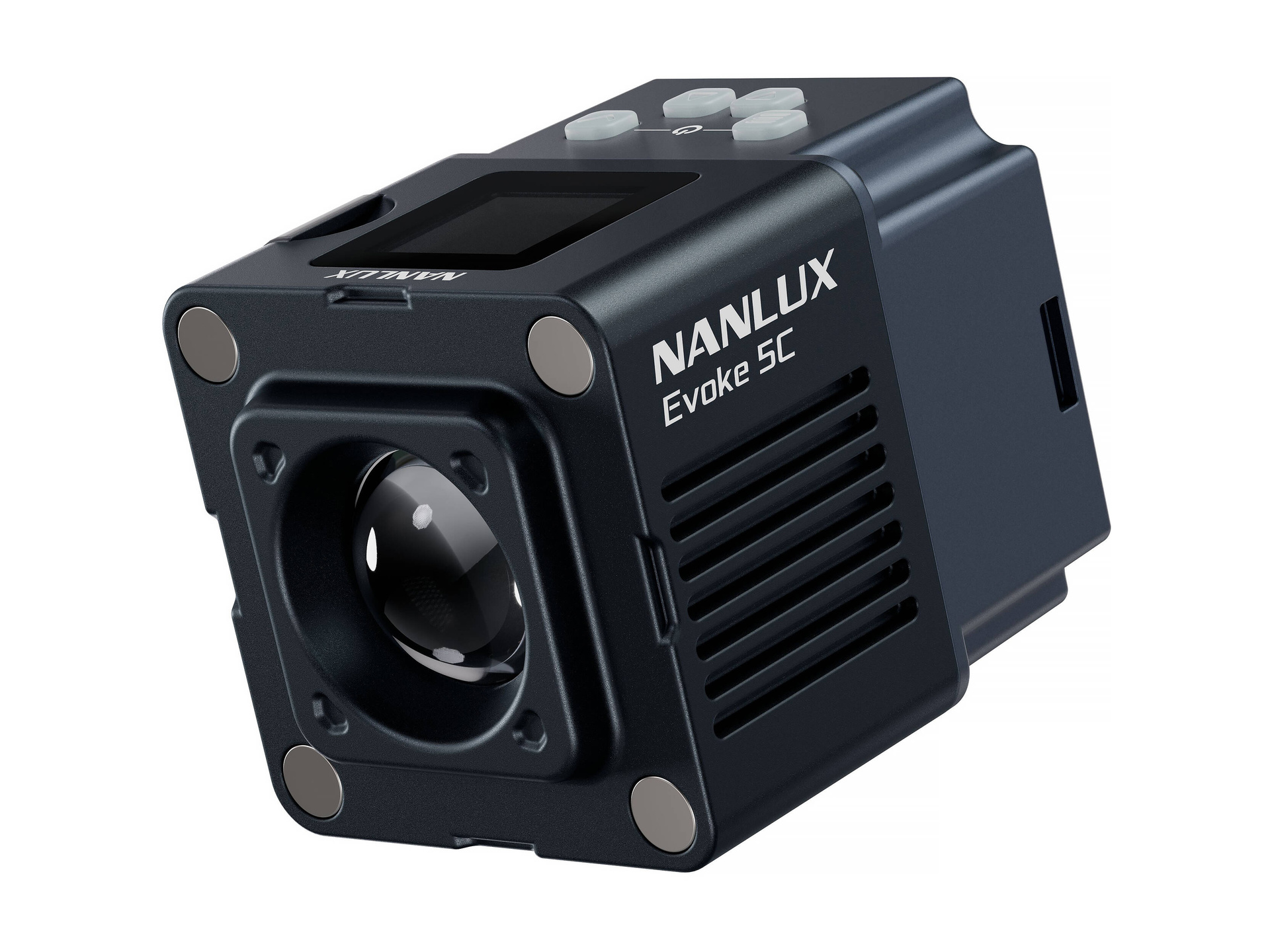

Nanlux Evoke 5C RGB LED Spotlight (8-Light Kit)

Product #125449 | SKU EV5C8KIT | NanLite
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $5,749
A deposit of $690.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • 8 Lights, Magnetic Accessories & Case
  • Output: 496 Lux at 3.3' per Light
  • 1000-20,000K CCT; Full RGB Colour Control
  • +/- 200 Green/Magenta Tint Adjustment
  • Nebula C8 Light Engine
  • Onboard, App, DMX/RDM, CRMX; NFC Control

Description

Light up your scene with the Nanlux Evoke 5C RGB LED Spotlight (8-Light Kit). This versatile kit brings together eight compact fixtures, each delivering a full-colour output and a remarkably wide 1000-20,000K CCT range. The Evoke 5C 6W lights feature extensive green/magenta tint-shifting and advanced control options, ensuring precise adjustments for any lighting requirement. A robust protector case is included for charging, storage, and transportation, and the kit boasts an assortment of magnetic modifiers and accessories. With a weatherproof IP67 rating and a complete magnetic accessory ecosystem, the Evoke 5C kit is designed for durability and convenience.

Nanlux supplies additional accessories with each kit, such as barndoors, diffusers, soft domes, snoots, and thermal shields. The comprehensive package also features yokes, E27 socket adapters, CRMX modules, 15-35° projection attachments, gobos, and more. Leveraging Nanlux's Nebula C8 technology, each ultracompact Evoke 5C emits vibrant colours—including red, deep red, amber, lime, green, cyan, blue, and indigo—all housed within a 2.2 x 1.7 x 1.7" form factor and weighing just 5.6 oz. These features combine to make the Evoke 5C lights highly capable, easily modifiable, and portable for any on-the-go lighting application.

Specifications

Light Fixture
Item Type 8x LED Spot Light
Included Light Modifier 8x Diffuser
4x Dome
4x Barndoors
4x Snoot
6x Lens
2x Projection Lens
8x Gobo
Included Storage Case Yes
Photometrics 3200K:
41 fc / 448 Lux at 3.3' / 1 m (Unmodified)
509 fc / 5480 Lux at 1' / 0.3 m (Unmodified)
170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified)
5600K:
46 fc / 496 Lux at 3.3' / 1 m (Unmodified)
554 fc / 5970 Lux at 1' / 0.3 m (Unmodified)
188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified)
3200K:
1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)
20 fc / 220 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser)
5600K:
1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)

22 fc / 242 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser)

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 1000 to 20,000K +/- 200K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 98
TLCI 98
SSI 78 at 5600K
SSI 86 at 3200K
TM-30 Rf 96
TM-30 Rg 100
Dimming App-Controlled / Built-In Dimmer / DMX / RDM
 • 0 to 100%
Beam Angle 25°
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Lens
Lens Type Fresnel
Connectivity
Wireless Remote Control Type Bluetooth
CRMX *Adapter Required (Included)
Mobile App Compatible Yes: Android & iOS
App Name: Nanlink
Functionality: Remote Control
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs Light Fixture
1x USB-C Female Power/DMX Input
*Adapter Required (Not Included)
(5 VDC at 2 A)
Power Supply/Controller
1x powerCON TRUE1 Male AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x D-Tap Female Battery Input (14.4 to 28 VDC)
1x USB-C Female Power Input (15 to 48 VDC)
2x USB-A Female Power Output
Battery 1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In)
 • Up to 50-Minute Runtime at Maximum Brightness
 • Up to 156-Minute Runtime at Minimum Brightness
Battery Charging 1x Charging Case (Included)
Input Power 5 VDC at 2 A
Included Adapter / Cable 1x USA Type-A/B Plug to powerCON TRUE1 Female Cable (14.8' / 4.5 m)
1x D-Tap Male to D-Tap Male Cable
Power Pass-Thru No
Power Consumption 6 W
Mounting
Included Light Stand / Mount 4x Handgrip
Fixture Mounting 1x 1/4"-20 Female Thread
Magnetic
Included Adapter 4x Swivel Mount: 1/4"-20 Female Thread to Proprietary
4x Non-Swivel Mount: 5/8" Stud to 1/4"-20 Male Screw
General
Display Yes
Environmental Resistance Dust/Weather/Water-Resistant (IP67)
Operating Conditions -4 to 104°F / -20 to 40°C
Certifications BIS, COE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA
Dimensions 2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture)
Weight 5.6 oz / 160 g (Fixture)

In The Box

  • Nanlux Evoke 5C RGB LED Spotlight (8-Light Kit)
  • 8 x Magnetic Diffuser
  • 4 x Magnetic Soft Dome
  • 8 x Magnetic CRMX Module
  • 8 x Magnetic Thermal Shield
  • 4 x Magnetic Barndoors
  • 4 x Magnetic Snoot
  • 4 x Magnetic Fresnel Lens
  • 4 x Magnetic Battery Grip
  • 4 x 5/8" Baby Pin with 1/4"-20 Thread
  • 4 x Magnetic E27 Socket Adapter
  • 4 x Magnetic Yoke
  • 2 x Projection Attachment (15-35°)
  • 8 x Gobo
  • 2 x Magnetic Spot Beam Lens
  • AC Power Cable (4.9')
  • D-Tap Cable
  • GUTEK T-230 Charging Protector Case (Black)
