Nanlux Evoke 5C RGB LED Spotlight Kit

Product #125448 | SKU EV5CKIT | NanLite
Coming Soon ETA to be confirmed
NEW
Our Price $489
Coming Soon ETA to be confirmed
NEW
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • Light with Fresnel, Battery Grip & Case
  • Output: 496 Lux at 3.3' (Bare, 5600K)
  • 1000-20,000K CCT; Full RGB Colour Control
  • +/- 200 Green/Magenta Tint Adjustment
  • Nebula C8 Light Engine
  • Onboard, App, DMX/RDM, CRMX; NFC Control

Description

Compact and powerful, the Nanlux Evoke 5C RGB LED Spotlight Kit is designed to deliver exceptional versatility in an ultralight and portable package. With a 6W fixture, the Evoke 5C offers full-colour output and features a remarkable 1000-20,000K CCT range, allowing for outstanding white balance control and extensive green/magenta tint shifting for fine-tuning your lighting. The advanced control options make it easy to adjust the light for a variety of production needs.

Magnetic Accessory Ecosystem

To further enhance usability, the kit includes a set of magnetic accessories that snap into place effortlessly. Alongside the light itself, you'll find a magnetic Fresnel lens and magnetic battery grip for extra convenience. The wide selection of compatible accessories ensures you have everything you need for creative lighting manipulation—this includes magnetic barndoors, a diffuser, a soft dome, a snoot, and a thermal shield.

Weatherproof and Robust

The Evoke 5C is engineered for durability with a weatherproof IP67 rating, giving you peace of mind even in harsh outdoor conditions.

Complete Kit Contents

Nanlux provides a comprehensive kit to get you started. Included are a 3.3' long USB-C cable for easy charging and a sturdy carry bag, making storage and transport hassle-free.

Nebula C8 Colour Technology

Thanks to Nanlux’s Nebula C8 technology, the Evoke 5C can generate red, deep red, amber, lime, green, cyan, blue, and indigo colours. All of this is packed into a remarkably compact housing measuring just 2.2 x 1.7 x 1.7 inches and weighing only 5.6 ounces, ensuring this light is easy to carry and quick to deploy.

Versatile and Travel-Ready

With its innovative design, wide range of included accessories, and advanced colour performance, the Nanlux Evoke 5C RGB LED is a capable lighting solution you can confidently modify to suit any situation and take with you wherever your work leads.

Specifications

Light Fixture
Item Type 1x LED Spot Light
Included Light Modifier 1x Diffuser
1x Dome
1x Lens
1x Barndoors
1x Snoot
Included Storage Case Yes
Photometrics 3200K:
41 fc / 448 Lux at 3.3' / 1 m (Unmodified)
509 fc / 5480 Lux at 1' / 0.3 m (Unmodified)
170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified)
5600K:
46 fc / 496 Lux at 3.3' / 1 m (Unmodified)
554 fc / 5970 Lux at 1' / 0.3 m (Unmodified)
188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified)
3200K:
1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)
20 fc / 220 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser)
5600K:
1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)

22 fc / 242 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser)

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 1000 to 20,000K +/- 200K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 98
TLCI 98
SSI 78 at 5600K
SSI 86 at 3200K
TM-30 Rf 96
TM-30 Rg 100
Dimming App-Controlled / Built-In Dimmer / DMX / RDM
 • 0 to 100%
Beam Angle 25°
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Lens
Lens Type Fresnel
Connectivity
Wireless Remote Control Type Bluetooth
CRMX *Adapter Required (Not Included)
Mobile App Compatible Yes: Android & iOS
App Name: Nanlink
Functionality: Remote Control
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs 1x USB-C Female Power/DMX Input
*Adapter Required (Not Included)
(5 VDC at 2 A)
Battery 1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In)
 • Up to 50-Minute Runtime at Maximum Brightness
 • Up to 156-Minute Runtime at Minimum Brightness
Battery Charging 1x Charging Cable (Included)
Input Power 5 VDC at 2 A
Included Adapter / Cable 1x USB-C Male to USB-C Male Cable (14.8' / 4.5 m)
Inline Switch No
Power Pass-Thru No
Power Consumption 6 W
Mounting
Included Light Stand / Mount 1x Handgrip
Fixture Mounting 1x 1/4"-20 Female Thread
Magnetic
Included Adapter 1x Swivel Mount: 1/4"-20 Female Thread to Proprietary
General
Display Yes
Environmental Resistance Dust/Weather/Water-Resistant (IP67)
Operating Conditions -4 to 104°F / -20 to 40°C
Certifications BIS, COE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA
Dimensions 2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture)
5.31 x 2.95 x 1.97" / 13.49 x 7.49 x 5 cm (Included Storage Case)
Weight 5.6 oz / 160 g (Fixture)

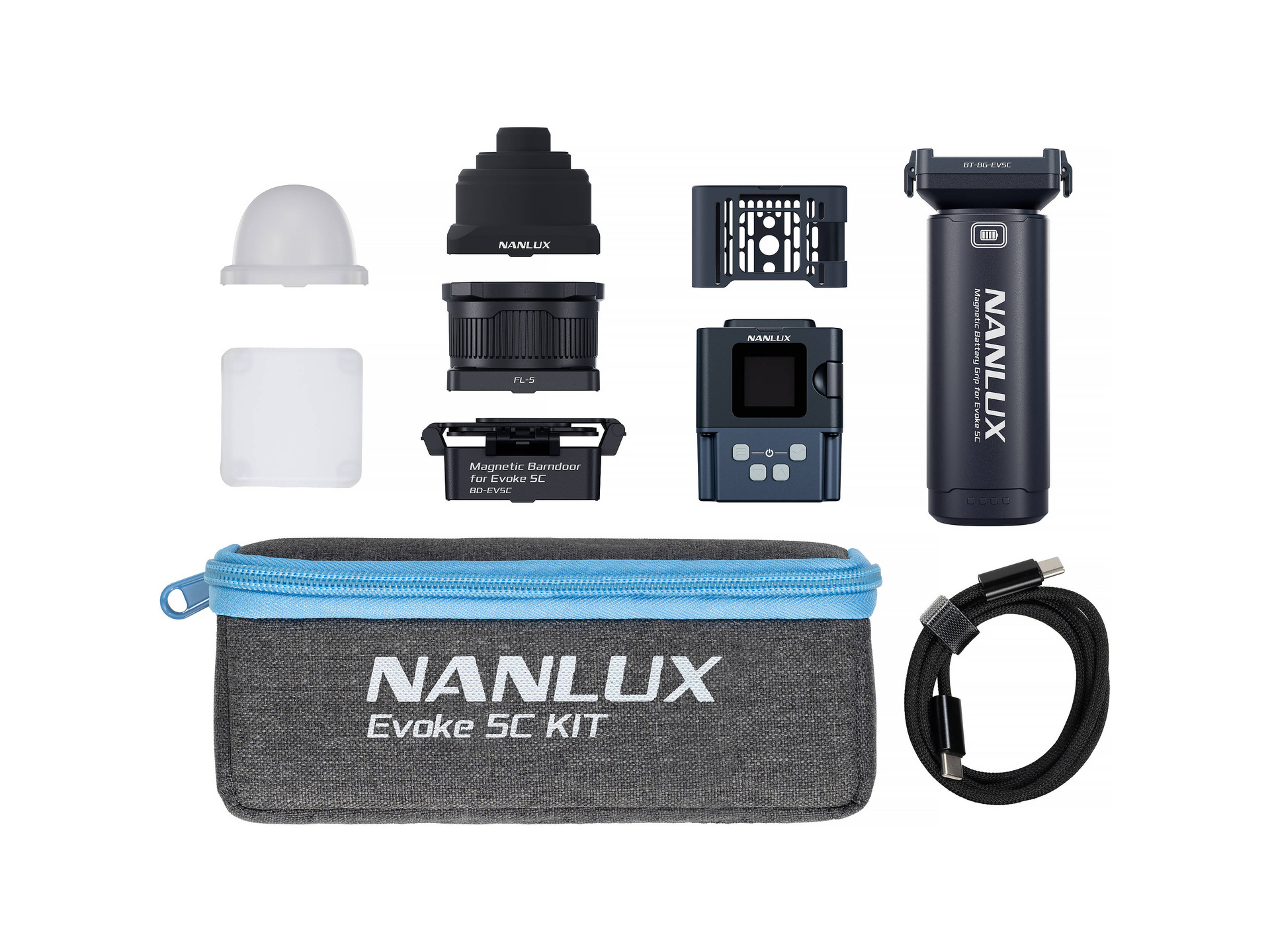

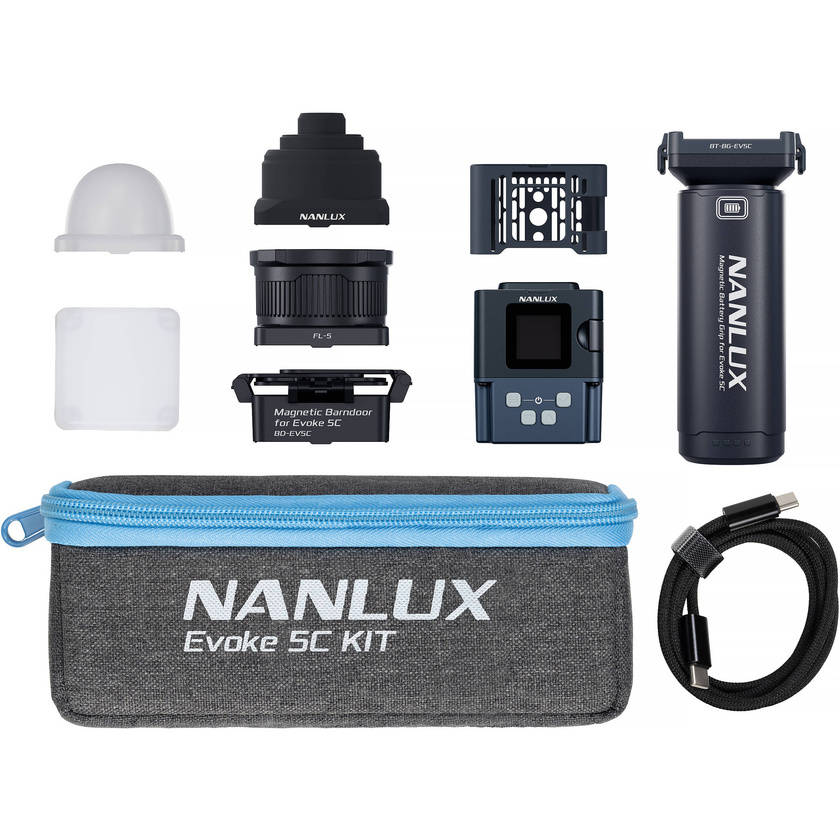

In The Box

  • Nanlux Evoke 5C RGB LED Spotlight Kit
  • USB-C Cable (3.3')
  • Magnetic Fresnel Lens
  • Magnetic Battery Grip
  • Magnetic Thermal Shield
  • Magnetic Diffuser
  • Magnetic Soft Dome
  • Magnetic Barndoors
  • Magnetic Snoot
  • Carry Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Nanlux Evoke 5C RGB LED Spotlight Kit
  • Manufacturer: NanLite
  • Model: Evoke 5C
  • SKU: EV5CKIT
  • RM Product #: 125448
  • Colour Temperature: 1000 to 20,000K
  • Warranty: 1 year manufacturer warranty
