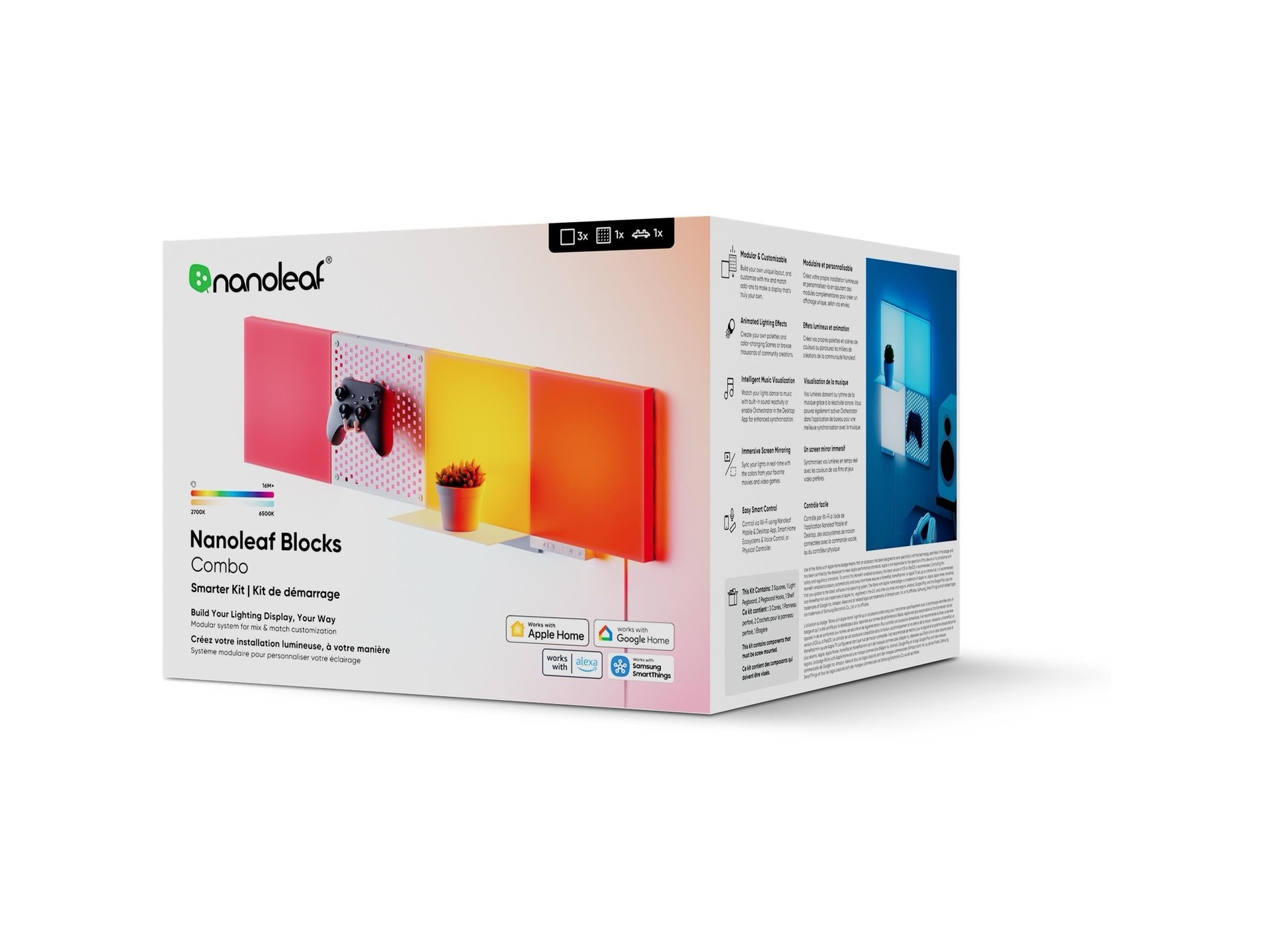

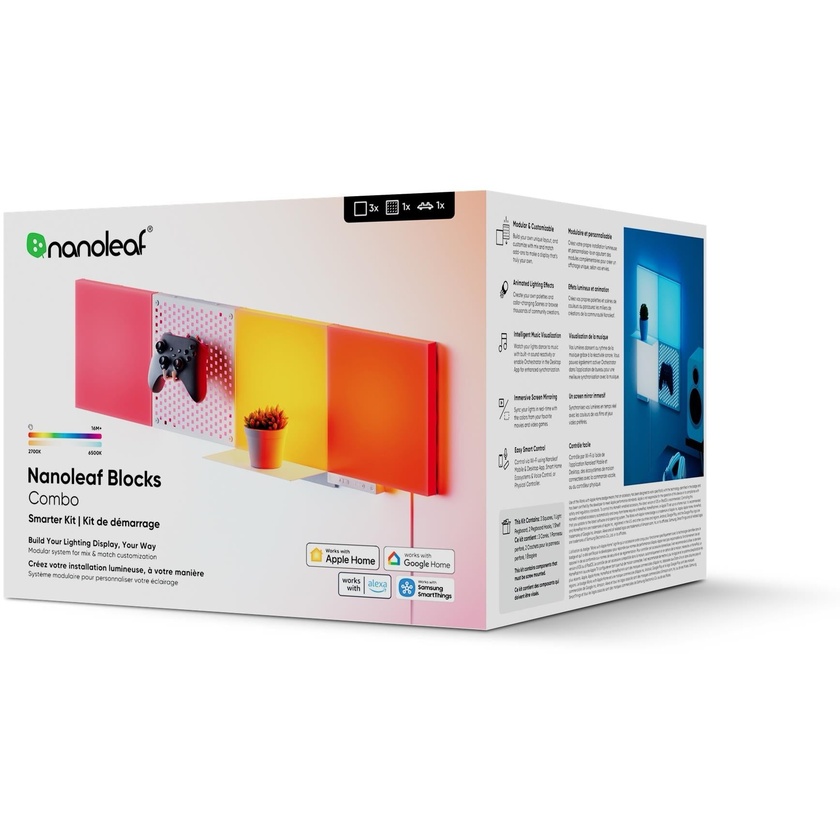

Nanoleaf Blocks Combo Starter Kit

Product #118217 | SKU N8100K05-5CL | Nanoleaf
In stock Ships Monday
Our Price $309
In stock Ships Monday
- +

Shipping & Availability
Ships Monday. Deliver to Auckland for $94 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Edge to edge illumination
  • Includes Light Pegboard & Shelf
  • App, voice, manual control
  • Shelf weight limit: 1.5kg
  • Pegboard weight limit: 3kg

Description

Build your lighting display YOUR way with the Nanoleaf Blocks Combo Starter Kit! Create your one-of-a-kind illuminated display with different panel styles and add-ons. Customise with colours and lighting effects, and utilise the new Shelves and Pegboards to show off your favourite items that make you YOU - like your gaming accessories, collectibles, plants, and more!

With modular light panels, pegboards, and shelves that can be mixed and matched, you have total design freedom to create a statement lighting piece that doubles as a versatile display and storage solution.

Mix and match from 5 Blocks styles for a lighting layout that's totally unique to you. Take customisation one step further by creating your own colour palettes and animated Scenes.

Sleek square panels with even edge-to-edge lighting give you complete creative flexibility to go ultra minimalistic or take it to the max.

Note: This kit contains components that must be screw-mounted onto the wall.

Specifications

Dimensions
Squares 231x 231 x 29mm
Light Pegboard 231 x 231 x 29mm
Pegboard Hook 79.5 x 76.6 x 5.5mm
Shelves 229.6 x 70 x 129mm
Shelf Cover 5.5 x 79.7 x 76.6mm
Cable Length 2m
Controller 230 x 35 x 29mm
Weight
Squares (Per Panel) 550g
Light Pegboard (Per Panel) 900g
Pegboard Hook 26g
Shelf 227.5g
Shelf Cover 26g
PSU 205g
Controller 40g
Shelf Load Bearing Capacity 1.5kg
Light Pegboard Load Bearing Capacity 3kg
Features
Screen Mirror Yes
Rhythm Music Visualizer Yes
Sync+ Yes
Connect+ Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes
Touch Control No
General
Luminous Per Display Squares: 320 lumens
Light Pegboard: 62 lumens
Communication Protocol WiFi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.
Dimmability Yes (via Nanoleaf App, Voice, Controller)
Mounting Type Squares: Double-sided mounting tape (included)
Light Pegboard: Must be screw mounted (screws provided)
Shelves: Must be screw mounted (screws provided)
The Nanoleaf App Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
Thread Compatibility Can act as a Thread Border Router with a future firmware update
Compatibility Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma
Colour
Colour Temperature 1200K-6500K
Colour Channel Configuration RGBW
Max Colours More than 16 million
Colour Rendering Index (CRI) 80
Power
Voltage 100 - 240V AC
Max Panels per Power Supply (42W) Squares: 17
Light Pegboard: 17
Textured Squares: 17
Small Squares: 60
Max Panels per Controller 500
Individual Power Consumption Values Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU:
Squares: 3W
Light Pegboard: 3W
Textured Squares: 3W
Small Squares: 0.8W
Use environment
Lifetime 25,000 hrs
Operating temperature range 0 to 40C
Usage Scenario Indoor
IP Rating IP20

In The Box

  • 3 x Squares
  • 1 x Light Pegboard
  • 2 x Pegboard Hooks
  • 1 x Shelf
  • 1 x Shelf Cover
  • 1 x Controller
  • Mounting Plates & Tapes
  • Screws
  • Rigid Linkers
  • 100VAC-240VAV Power Supply
