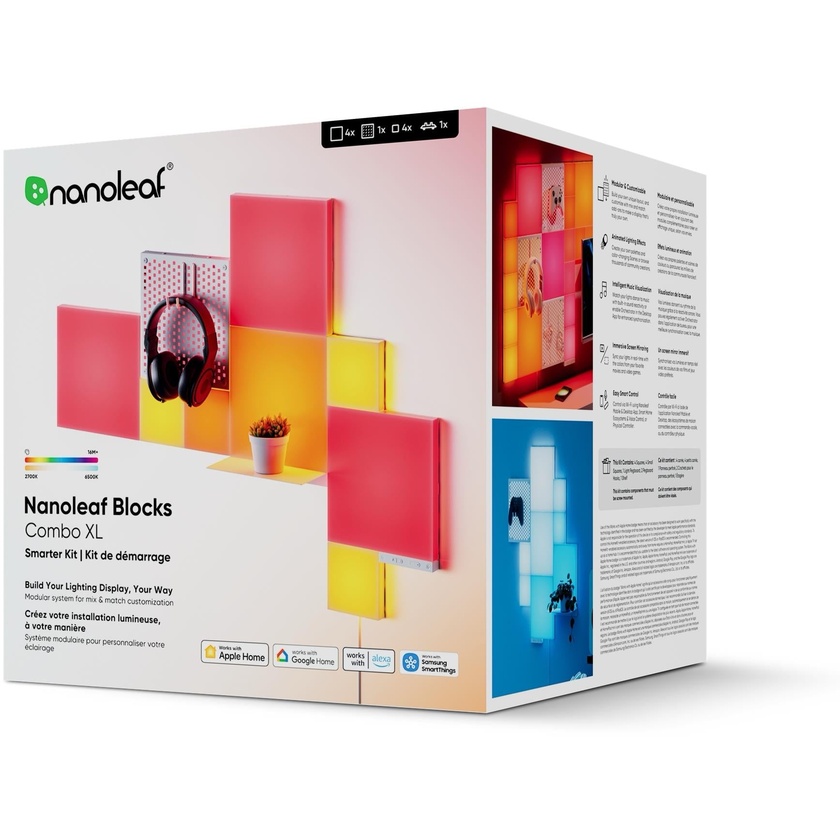

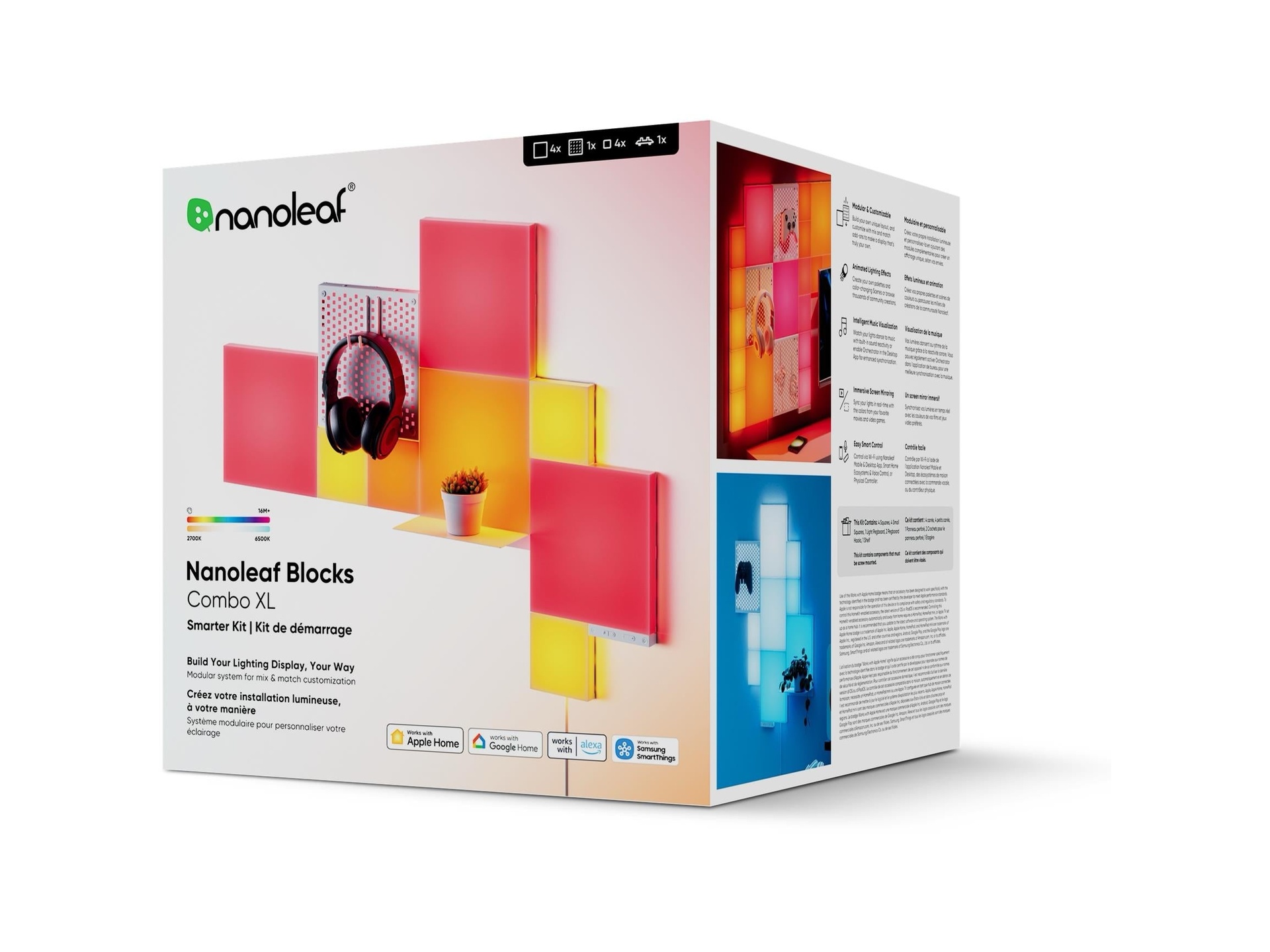

Build your lighting display YOUR way with the Nanoleaf Blocks Combo XL Starter Kit! Create your one-of-a-kind illuminated display with different panel styles and add-ons.
Customise with colours and lighting effects, and utilise the new Shelves and Pegboards to show off your favourite items that make you YOU-like your gaming accessories, collectibles, plants, and more!
This kit contains components that must be screw-mounted onto the wall.
| Dimensions | |
| Squares | 231 x 231 x 29mm |
| Small Squares | 115.5 x 115.5 x 29mm |
| Light Pegboard | 231 x 231 x 29mm |
| Pegboard Hook | 79.5 x 76.6 x 5.5mm |
| Shelves | 229.6 x 70 x 129mm |
| Shelf Cover | 5.5 x 79.7 x 76.6mm |
| Cable Length | 2m |
| Controller | 230 x 35 x 29mm |
| Weight | |
| Squares (Per Panel) | 550g |
| Small Squares (Per Panel) | 135g |
| Light Pegboard (Per Panel) | 900g |
| Pegboard Hook | 26g |
| Shelf | 227.5g |
| Shelf Cover | 26g |
| PSU | 205g |
| Controller | 40g |
| Shelf Load Bearing Capacity | 1.5kg |
| Light Pegboard Load Bearing Capacity | 3kg |
| Features | |
| Screen Mirror | Yes |
| Rhythm Music Visualizer | Yes |
| Sync+ | Yes |
| Connect+ | Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes |
| Touch Control | No |
| General | |
| Luminous Per Display | Squares: 320 lumens Small Squares: 70 lumens Light Pegboard: 62 lumens |
| Communication Protocol | WiFi (2.4 GHz b/g/n) NOTE: 5 GHz networks are not compatible with Nanoleaf products. |
| Dimmability | Yes (via Nanoleaf App, Voice, Controller) |
| Mounting Type | Squares: Double-sided mounting tape (included) Small Squares: Double-sided mounting tape (included) Light Pegboard: Must be screw mounted (screws provided Shelves: Must be screw mounted (screws provided) |
| The Nanoleaf App | Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac). |
| Thread Compatibility | Can act as a Thread Border Router with a future firmware update |
| Compatibility | Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma |
| Colour | |
| Colour Temperature | 1200K-6500K |
| Colour Channel Configuration | RGBW |
| Max Colours | More than 16 million |
| Colour Rendering Index (CRI) | 80 |
| Power | |
| Voltage | 100 - 240V AC |
| Max Panels per Power Supply (42W) | Squares: 17 Light Pegboard: 17 Textured Squares: 17 Small Squares: 60 |
| Max Panels per Controller | 500 |
| Individual Power Consumption Values | Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU: Squares: 3W Light Pegboard: 3W Textured Squares: 3W Small Squares: 0.8W |
| Use environment | |
| Lifetime | 25,000 hrs |
| Operating temperature range | 0 to 40C |
| Usage Scenario | Indoor |
| IP Rating | IP20 |
