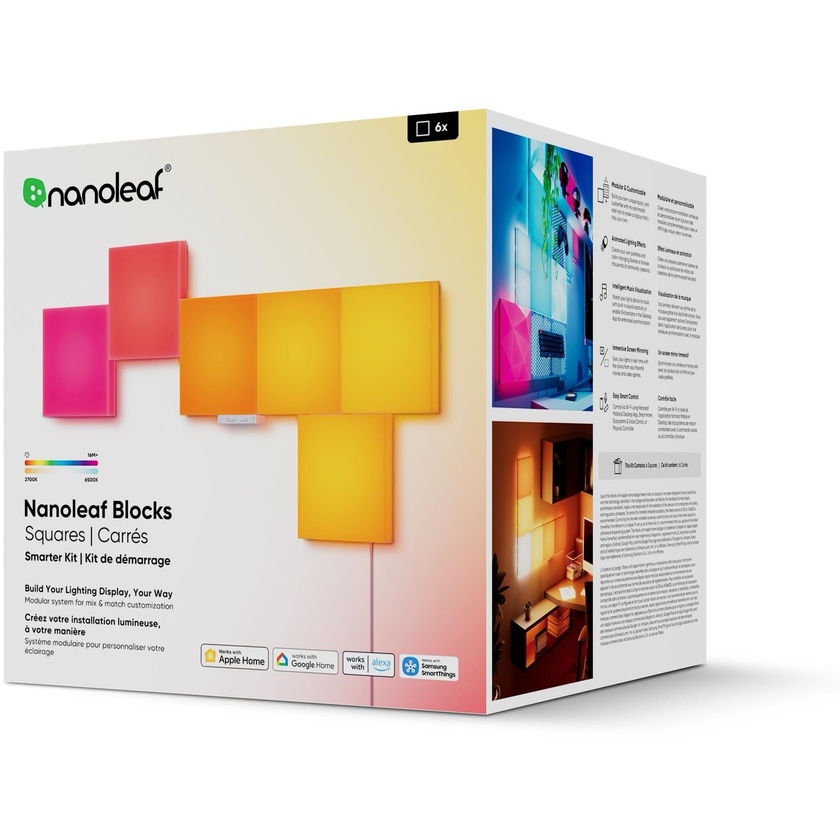

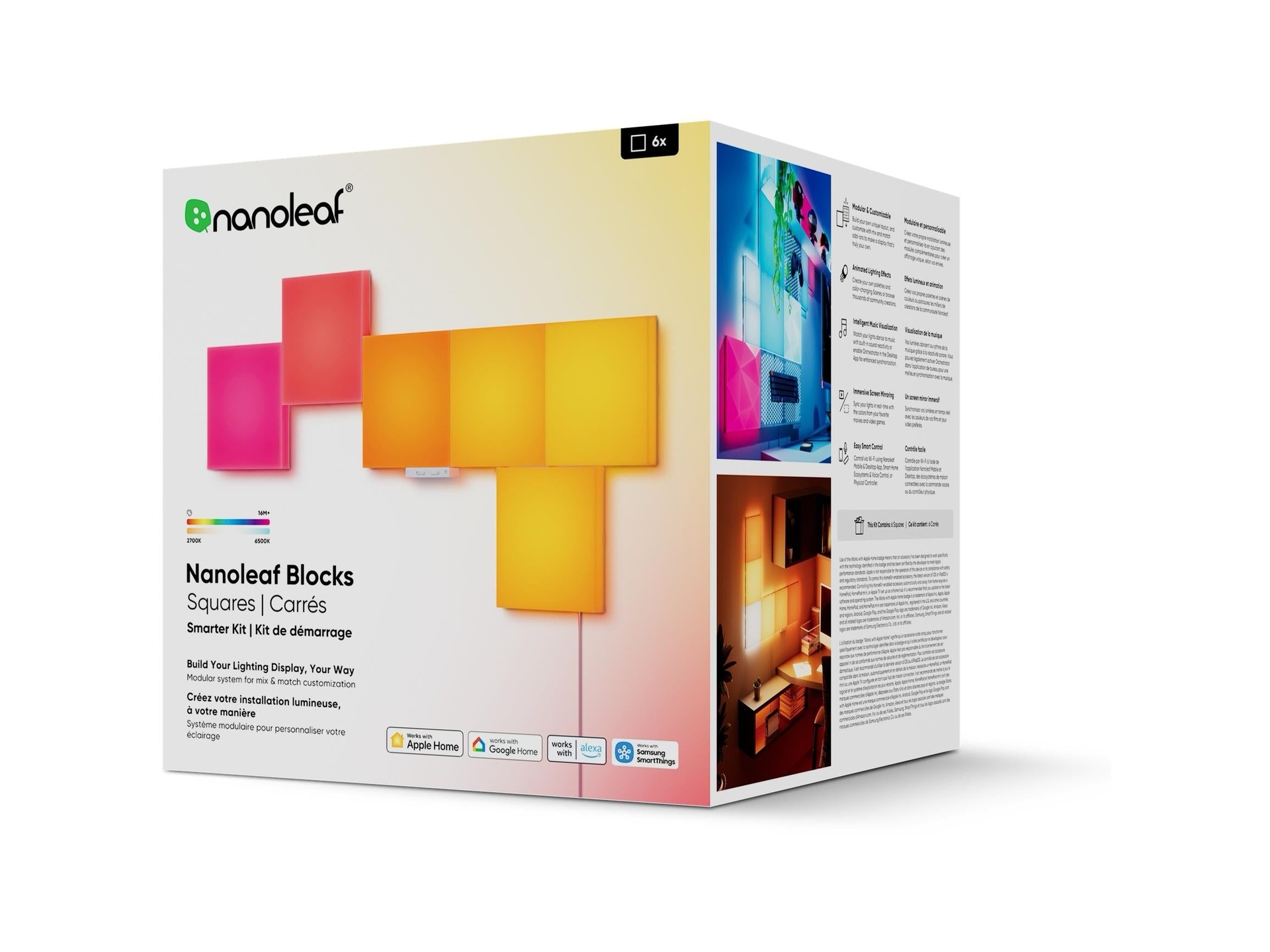

Build your lighting display YOUR way with Nanoleaf Blocks! This kit features large square light panels with edge to edge illumination, giving you the power to paint your world with vibrant colours and dynamic animated lighting effects.
With modular light panels, pegboards, and shelves that can be mixed and matched, you have total design freedom to create a statement lighting piece that doubles as a versatile display and storage solution.
| Dimensions | |
| Squares | 231 x 231 x 29mm |
| Cable Length | 2m |
| Controller | 230 x 35 x 29mm |
| Weight | |
| Squares (Per Panel) | 550g |
| PSU | 205g |
| Controller | 40g |
| Features | |
| Screen Mirror | Yes |
| Rhythm Music Visualizer | Yes |
| Sync+ | Yes |
| Connect+ | Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes |
| Touch Control | No |
| General | |
| Luminous Per Display | Squares: 320 lumens |
| Communication Protocol | WiFi (2.4 GHz b/g/n) NOTE: 5 GHz networks are not compatible with Nanoleaf products. |
| Dimmability | Yes (via Nanoleaf App, Voice, Controller) |
| Mounting Type | Squares: Double-sided mounting tape (included) |
| The Nanoleaf App | Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac). |
| Thread Compatibility | Can act as a Thread Border Router with a future firmware update |
| Compatibility | Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma |
| Colour | |
| Colour Temperature | 1200K-6500K |
| Colour Channel Configuration | RGBW |
| Max Colours | More than 16 million |
| Colour Rendering Index (CRI) | 80 |
| Power | |
| Voltage | 100 - 240V AC |
| Max Panels per Power Supply (42W) | Squares: 17 Light Pegboard: 17 Textured Squares: 17 Small Squares: 60 |
| Max Panels per Controller | 500 |
| Individual Power Consumption Values | Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU: Squares: 3W Light Pegboard: 3W Textured Squares: 3W Small Squares: 0.8W |
| Use environment | |
| Lifetime | 25,000 hrs |
| Operating temperature range | 0 to 40C |
| Usage Scenario | Indoor |
| IP Rating | IP20 |
