(Note: Enclosure only, Hard Drive/s not included)

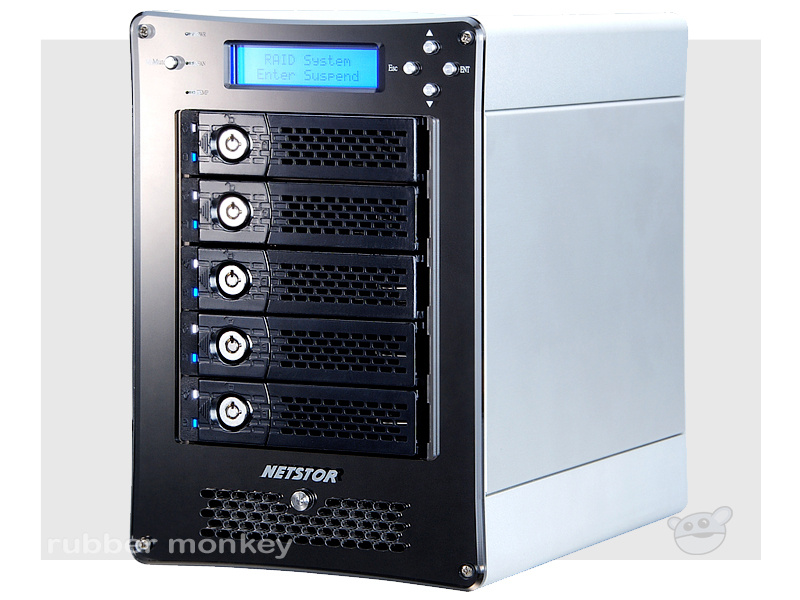

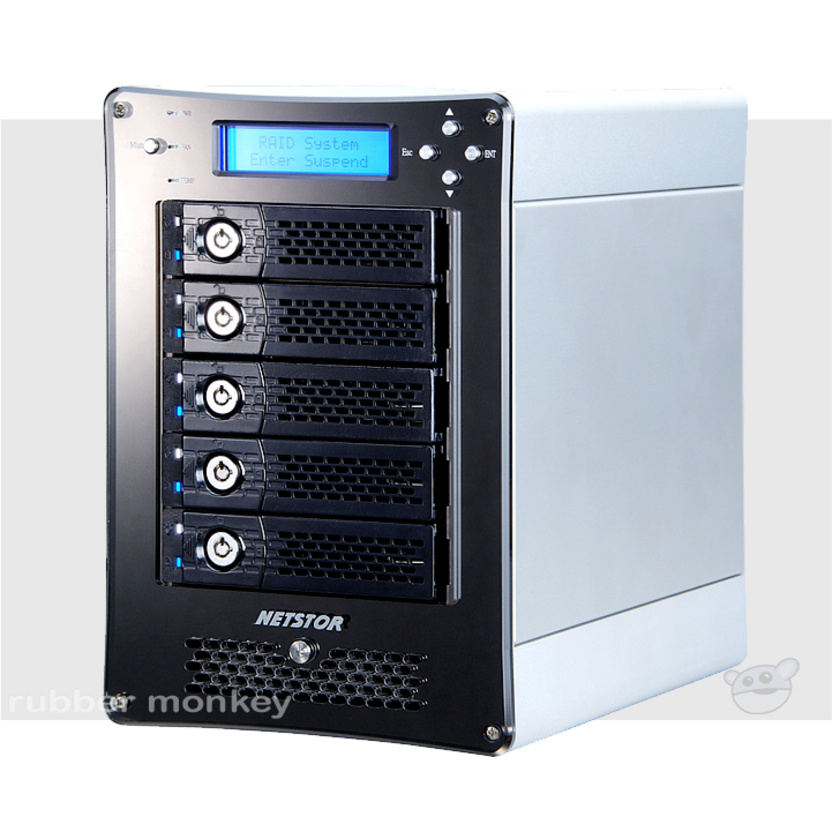

The Netstor 5-Bay External HDD Enclosure
5-bay Hard Drive Enclosure (Firewire 800/USB 2.0/eSATA/RAID 0/1/10/3/5)
The 5-drive Netstor features high efficiency with a built-in advanced hardware RAID processor, providing 0, 1, 3, 5 and 10 RAID levels. With the high performance interfaces of USB 3.0, eSATA, and FireWire 800, the NR710C is a great choice for video / audio editing professionals (SuperSpeed USB 3.0 connectivity delivers high-speed data transfer rate 5 Gbps, ten times the USB 2.0). RAID management can be configured completely by users in minutes using the comprehensive LCD control panel in front or through the user-friendly GUI on screen.
Features:
- Provides most high-speed combo interfaces of USB3.0, FW800 and eSATA
- Supports up to 5* SATA (3/6 Gbps) HDDs
- Built-in Hardware Raid processor providing Raid levels 0, 1, 3, 5 & 10
- Aluminum housing, anodized surface, benefits for cooling and durability
- Backplane design for five removable SATA drive trays
- Built-in thermal sensor for automatic fan speed controlled
- Individual key lock of each HDD tray for physical security
- User friendly GUI and front LCD control panel for setup, alarm mute and configuration
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm.
Specifications:
Host Interface: USB3.0/ FW800/ eSATA
HDD Interface: Any SATA Standard 3.5"drive
No. of Disk(s): Up to 5
RAID Levels: 0, 1, 3, 5 & 10
LED Display:
- White - Power on indicator
- Blue - Busy (HDD Accessing) indicator
- LED Display for Environmental Monitoring
- Power on LED - white
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 50°C – red
Physical Dimension: (D):230mm (W):157mm (H):229mm
Case Material: Anodized Aluminum with Mirror Acrylic plastic front panel & Plastic tray face
Power Supply: 220W (High reliability of IPC form-factor)
Universal Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling: 90 x 90 x 25 mm Cooling Fan x 1
O.S. support: OS Independent (Mac/PC/Linux etc)
GUI support: Windows (Available), Mac OS/Linux (Q4, 2010)
Package contents:
Netstor 5-bay External HDD Enclosure
HDD Tray x 5
USB 3.0 Cable x 1
FireWire800 Cable x 1
eSATA cable x1
Power Cord x 1
Manual & CD-ROM x1
Hard Disk Drive mounting screw x 20
Key for HDD tray x 2
2 year warranty
Other Models Available:
Netstor 5TB (5x1TB) (NR710C-5000)
Netstor 7.5TB (5x1.5TB) (NR710C-7500)
Netstor 10TB (5x2TB) (NR710C-10T)
