(Note: Enclosure only, Hard Drive/s not included)

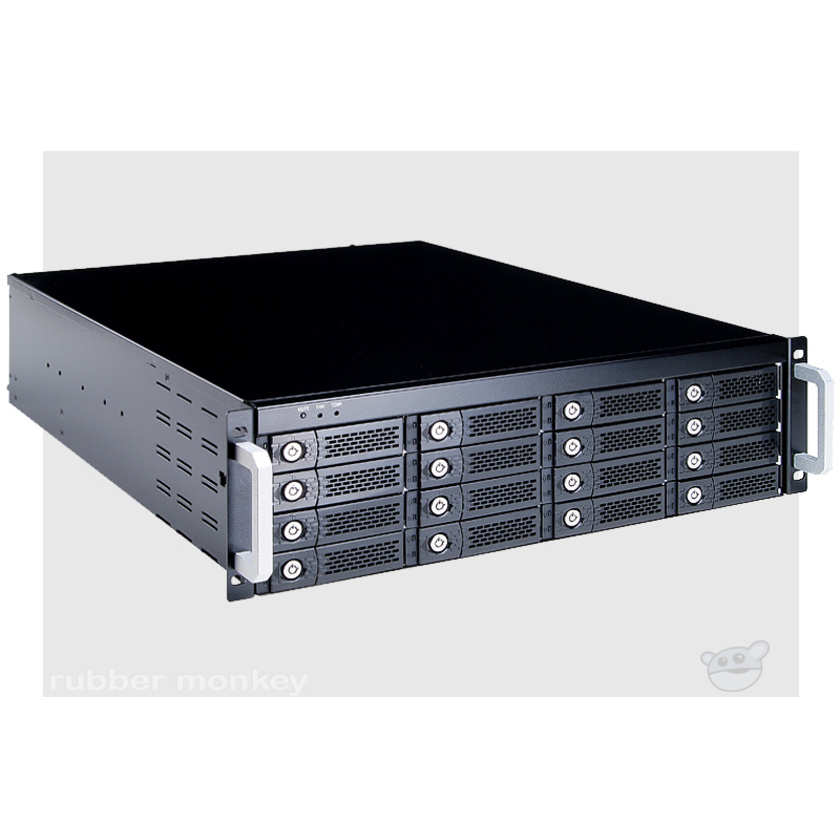

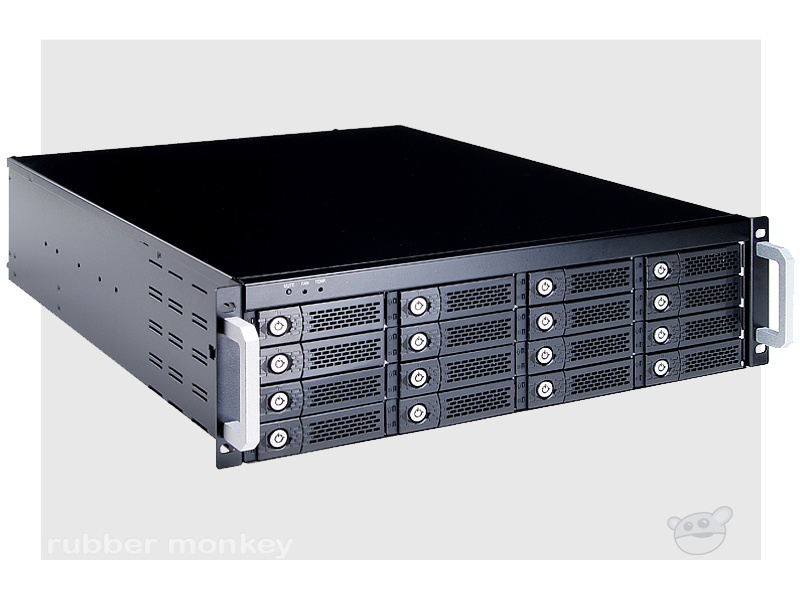

The Netstor NA331A External HDD Enclosure
16-bay 3U Rackmount Hard Drive Enclosure (4x ext miniSAS/hotswappable)
Netstor's NA331A is an external 3U-16 Bay Hot-Swap SAS/SATA rackmount Enclosure. It provides users a big storage capacity expansion solution for up to 16 SAS or SATA HDD and high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform.
This 3U external SAS/SATA JBOD is designed with 4 high bandwidth of External miniSAS (SFF8088) interface and it can be connection with different host servers to configure the chassis to Raid subsystem while connected with Host Raid Card(s) that brings users easy installation and fast data transmission.
Features:
- External 3U-16 bay Rackmount Chassis
- 4 x External miniSAS Host Interface
- Supports SAS/SATA (3Gbps)
- Up to 16 Removable SAS/SATA Drive Trays
- LED Indicators for Power and Activity on each HDD Tray
- Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm
Specifications:
Host Interface: 4 x External miniSAS
HDD Interface:
- SAS/SATA
- SAS/ SATA 3 Gbps
LED Display:
- White - Power on indicator
- Blue - Busy (HDD Accessing) indicator
- LED Display for Environmental Monitoring
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 55°C – red
Material: Heavy-duty cold-rolled steel
Power Supply: 400W Single PSU
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling: Three set of 8 x 8 x 2.5 cm Hot-Swappable Fans
O.S. support: OS Independent
Dimensions: 482mm x 136mm x 456mm (3U)
Package contents:
NA331A HDD Enclosure
HDD Tray x 16
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
2 year warranty
Other Models Available:
Netstor 16TB (16 x 1TB) (NA331A-16T)
Netstor 24TB (16 x 1.5TB) (NA331A-24T)
Netstor 32TB (16 x 2TB) (NA331A-32T)
