(Note: Enclosure only, Hard Drive/s not included)

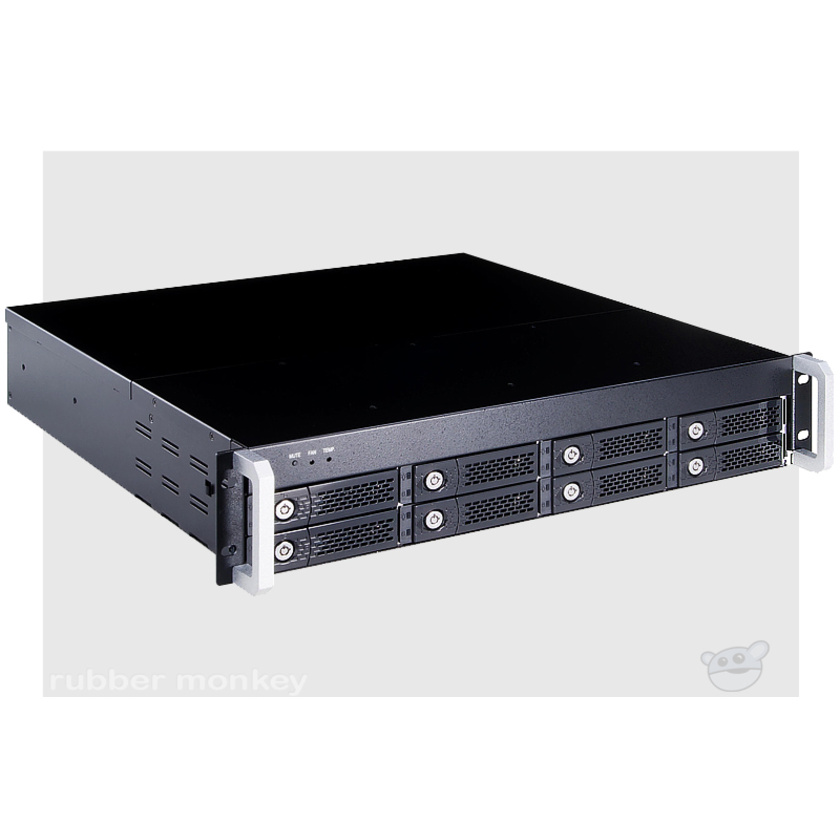

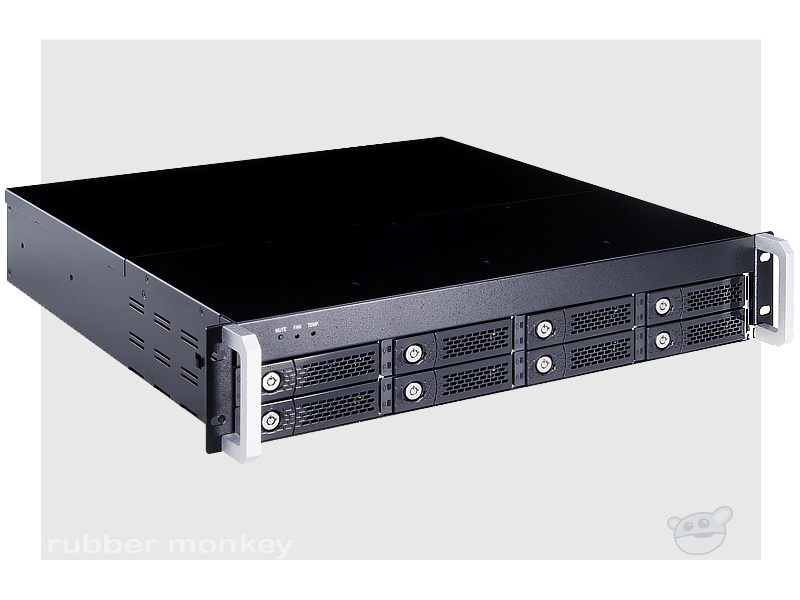

The Netstor NA341A External HDD Enclosure
8-bay 2U Rackmount Hard Drive Enclosure (2x ext miniSAS/hotswappable)
NA341A is an external 2U 8-Bay Hot-Swap SAS/SATA HDD Rackmount. It provides users a flexible solution with up to 8 SAS or SATA HDD and a high performance external data storage solution for HD (1080i Video Editing) or any high resolution video platform. This 2U 8 Bay external SAS/SATA JBOD is designed with the convenience of two External miniSAS (SFF8088) interfaces which brings users easy installation and fast data transmission.
Features:
- Supports SAS/SATA (3Gbps)
- 2 x miniSAS interface for easy connection
- Backplane design for up to 8 removable SAS/SATA drive trays
- Fan cooler for self-contained ventilation
- Individual key lock of each HDD tray for physical security
- LED indicators for power and activity on each HDD tray
- Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm
Specifications:
Host Interface: SAS/SATA (Two miniSAS connector)
External Connection Type: External miniSAS(SFF8088) x 2
HDD Interface: SAS / SATA
Data Transfer Rate: SAS 3Gbps & SATA 1.5/3 Gbps
Hot-Swap: Both on Host and Device
LED Display:
- White - Power on indicator
- Blue - Busy (HDD Accessing) indicator
- LED Display for Environmental Monitoring
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 55°C – red
Dimensions: (W):48.2 cm (H):8.85 cm (D):45.6 cm
Material: Heavy-duty cold-rolled steel
Power Supply:
- 300W Single PSU
- Input: 90 – 230 VAC 50- 60 Hz
- Output: +5V and +12V DC
Cooling: Two set of 6 x 6 x 2.5 cm
Package contents:
External Storage x 1
HDD Tray x 8
mini SAS Cable x 2 (Optional)
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
2 year warranty
Other Models Available:
Netstor 8TB (8 x 1TB) (NA341A-8000)
Netstor 12TB (8 x 1.5TB) (NA341A-12T)
