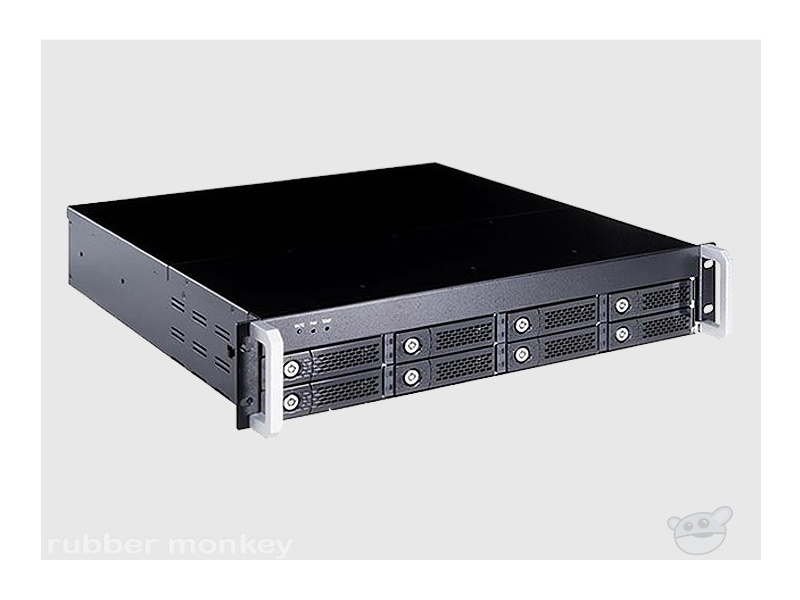

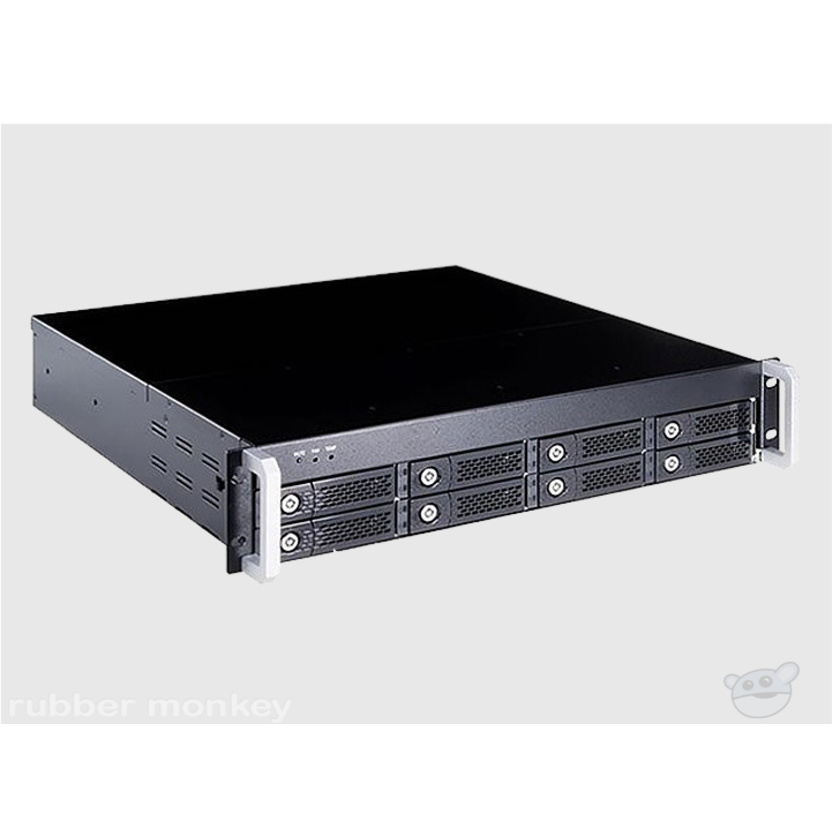

The Netstor NR340A 12TB External HDD
8-bay, 8x 1.5TB, 2U Rackmount Hard Drive (Dual Giga Port/iSCSI/RAID/hotswappable)
Netstor's NR340A is a cost-effective 2U-8 bay iSCSI-to-SATA IP Raid storage with built-in dual Gigabit Ethernet ports for convenient connectivity and fast data transfer by networking infrastructure. It provides a simple to use GUI and a fashion-blue color LCD for ease-of-control and operation in setting, a server-grade 300W universal power supply for running reliability and dual Gigabit iSCSI ports for high speed data transfer rate and sharing.
SATA Storage Hareware Raid Integrated
Netstor's NR340A uses Intel 331, 64-bit Xscale processor to as a core engine that can deliver the performance while running by dual Gigabit iSCSI channel. Also supports the hareware Raid levels from Raid 0, 1, 0+1, 3, 5, 6 & JBOD in wide range Raid function selection for data protection.
Features:
- Backplane desing supports 8 x SATA II 3Gbps drives
- Front-end Dual Gigabit Ethernet TCP/IP offload device
- Hardware RAID Intel IOP 331 64-bit processor
- Supports Raid levels 0, 1, 0+1, 5, 6, 50, 60 & JBOD
- Bulit-in LCD panel for easy control & operation
- Online volume expansion & migration
- Supports MPIO in Windows 2000 & Windows 2003 Server system
- Event notification via Email, SNMP trap, Windows & bower
Specifications:
Hard drive size: 12TB (8x 1.5TB)
Host Interface: Dual port iSCSI Gigabit Ethernet
HDD Interface: SATA II
No. of Disk(s): Up to 8
CPU & Memory: Intel IOP 331 & 512M DDR1
Raid function: RAID 0, 1, 0+1, 3, 5, 6, 50, 60 & JBOD
LED Display (for each Tray):
- White - Power On Indicator
- Blue - Busy(HDD Accessing) indicator
- LED Display for Environmental Monitoring
- POWER on LED - white
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 55°C – red
Material: Heavy-duty cold-rolled steel Housing
Dimension: 55.9(D) x 48.2(W) x 8.85(H) cm (2U)
Power Supply: Universal Single 300W (Server-grade) (Available in optional 400W Redundant)
Cooling: Two 7.5 x 7.5 x 2.8 cm Hot-Swappable Blowers
O.S. support: Supports VMware ESX3.5, Compatible with Windows, Linux & Mac system
Package contents:
NR340A 12TB HDD
HDD Tray x 8
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screw x 32
Key for HDD tray x 2
Optional Dual Power Supply
1 year warranty
Other Models Available:
Netstor enclosure (NR340A)
Netstor 8TB (8 x 1TB) (NR340A-8000)
