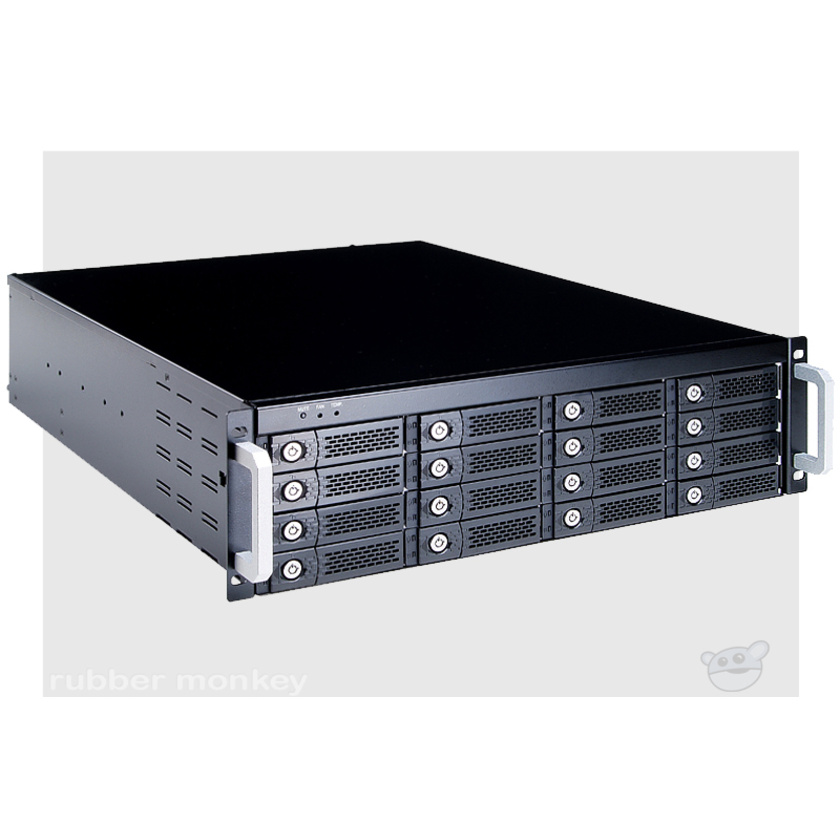

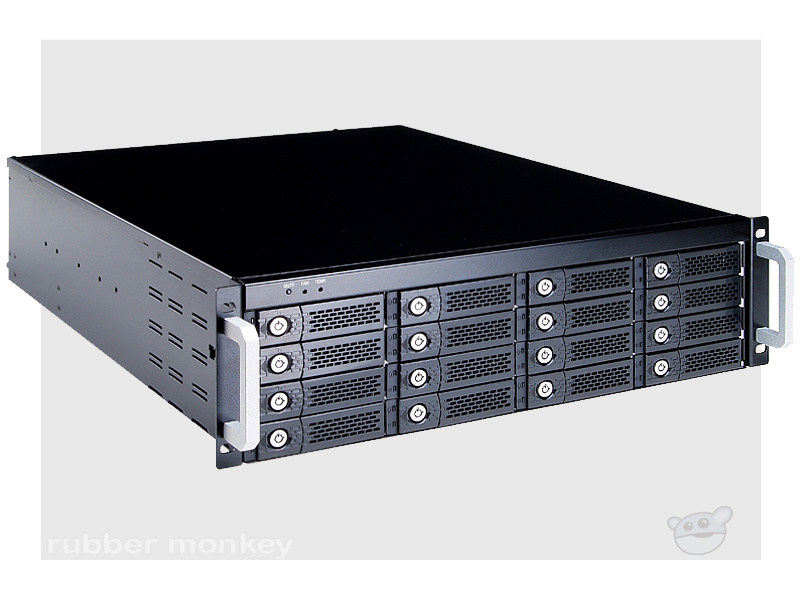

The Netstor NS330S-FC 24TB External HDD
Need more space? Not anymore. With Netstors most powerful external hard drive available you'll never run out of room.
Netstor's NS330S-FC, 3U 16-bay Fibre to SAS/SATA disk array, features two 4Gb Fibre Channel host interface ports for high capability and outstanding performance. Sustaining a data throughput over 600MBps (MPIO); exceeds the requirement from the most speed demanding application such as audio/video streaming and data intensive application. The NS330S-FC is designed to provide the flexibility of accepting both high-reliability SAS drives and cost-effective SATA drives. The core engine adopts the cutting edge 64-bit storage processor of Intel IOP341, making the system provide the highest data protection level of Raid 6 technology and present unparalleled performance.
Features:
- Backplane design supports sixteen (16) SAS/SATA II 3Gbps drives
- Dual 4Gb Fibre Channel host ports for failover
- Hardware RAID Intel IOP 341 800MHz processor
- Supports Raid levels 0, 1, 0+1, 3, 5, 6, 30, 50, 60 & JBOD
- Provides extra miniSAS port for SAS JBOD expansion up to 122 devices
- Supports online array roaming, online Raid level/stripe size migration and online capacity expansion
- Easy RAID management through front LCD control panel, RS-232 port or Ethernet port.
- Event notification via Email, SNMP trap, Windows & bower
Specifications:
Hard Drive Size: 24TB (16x 1.5TB hard drive trays)
Host Interface: Dual 4Gb Fibre Channel
HDD Interface: SAS/SATA II (3Gbps)
No. of Disk(s):
- Up to 16 (NS330S-FC)
- Up to 122 (Using Expander JBOD of NS330S-8020)
Expansion Port: One miniSAS connector for Expander JBOD Chassis
CPU & Memory: Intel 800MHz IOP341 & 512M DDR2-533(upgradable to 4GB)
Raid function: RAID 0, 1, 10, 3, 5, 6, 30, 50, 60 or JBOD
Control Interface: LCD panel, RS-232, RJ-45 Ethernet
LED Display for each Tray:
- White - Power On Indicator
- Blue - Busy(HDD Accessing) indicator
- LED Display for Environmental Monitoring
- POWER on LED - white
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 50°C – red
Material: Heavy-duty cold-rolled steel Housing
Power Supply: Redundant 400W (Server-grade)
Cooling: Two 7.5 x 7.5 x 2.8 cm Hot-Swappable Blowers
O.S. support: OS Independent
Dimensions: 55.9(D) x 48.2(W) x 13.1(H) cm
Package contents:
NS330S-FC 24TB HDD
HDD Tray x 16
Power Cord x 2
Manual CD-ROM x1
Hard Disk Drive mounting screw x 64
Key for HDD tray x 2
2 year warranty
Other Models Available:
Netstor Enclosure (NS330S-FC)
Netstor 16TB (16 x 1TB) (NS330S-FC-16T)
Netstor 32TB (16 x 2TB) (NS330S-FC-32T)
