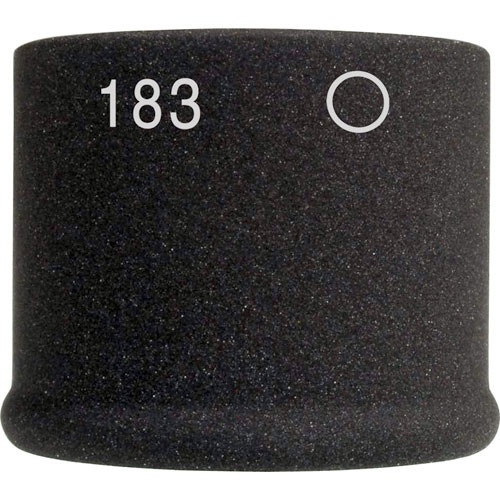

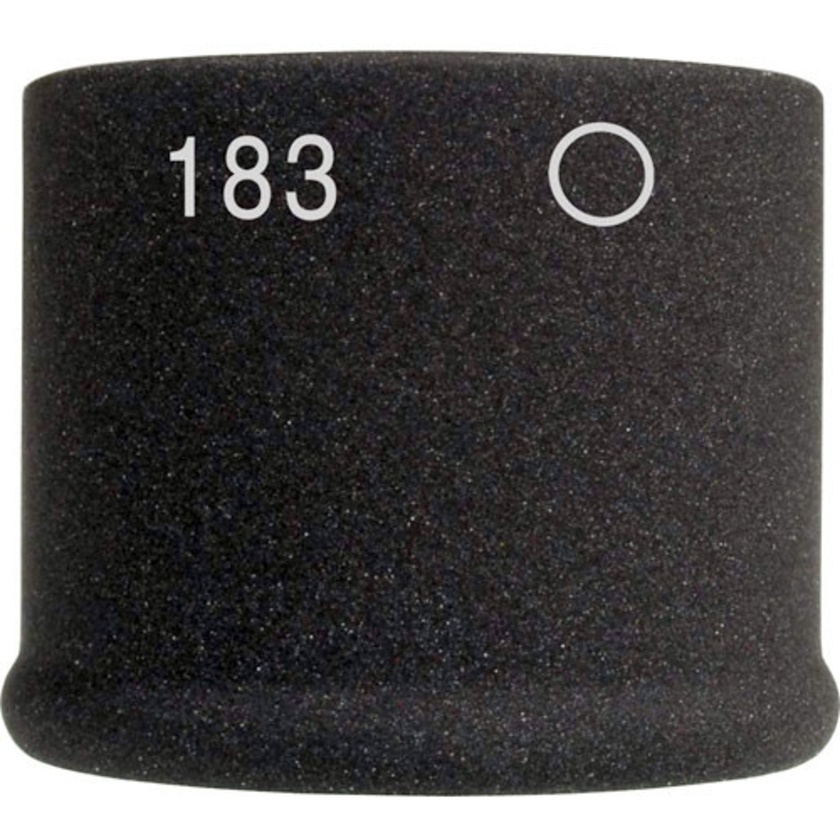

Neumann KK 183 NX Capsule Head (Nextel Black)

Product #89359 | SKU 008567 | Neumann
Special Order Usually ships in 8 - 12 weeks what does this mean?
Our Price $1,579
Special Order Usually ships in 8 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 8 - 12 weeks. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 8 - 12 weeks
Click & Collect

Features

  • Omnidirectional Polar Pattern
  • User Installable
  • Non-reflective Finish

Description

The Neumann KK 183 NX Capsule Head (Nextel Black) is the omnidirectional capsule for the KM series digital microphone. The omnidirectional polar pattern features a uniform frequency response and pick up area at the frontal and off-axis sections of the capsule. The KK183 is user installable and features a non-reflective finish.

Key Features:

  • Omnidirectional Polar Pattern
  • User installable
  • Non-reflective finish

Specifications

Transducer Pressure Condenser
Polar Pattern Omnidirectional
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 124 dB
Signal-to-Noise Ratio Signal-to-noise ratio, A-weighted: 81dB, 81dB, 79dB according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
Maximum Input Sound Level 137 dB @ 0 dBFS
Power Requirements Power supply (phantom power complying with AES 42)Supply voltage range: +7V to +10.5V
Output Impedance 50 Ohms

In The Box

  • KK 183 nx Capsule Head
  • Wooden Box

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Neumann KK 183 NX Capsule Head (Nextel Black)
  • Manufacturer: Neumann
  • Model: 008567
  • SKU: 008567
  • RM Product #: 89359
