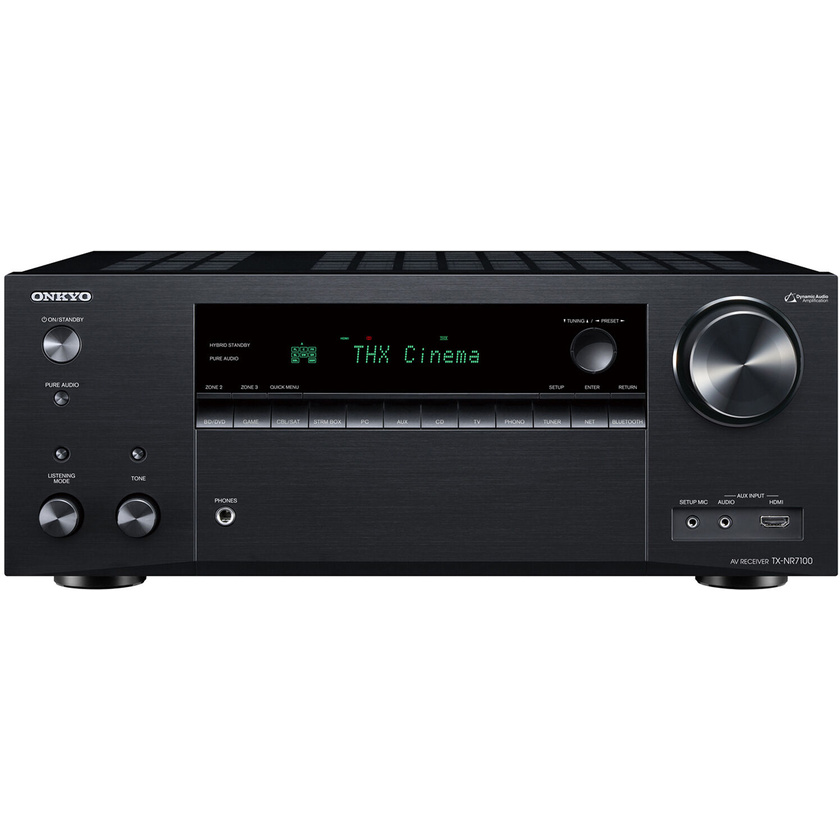

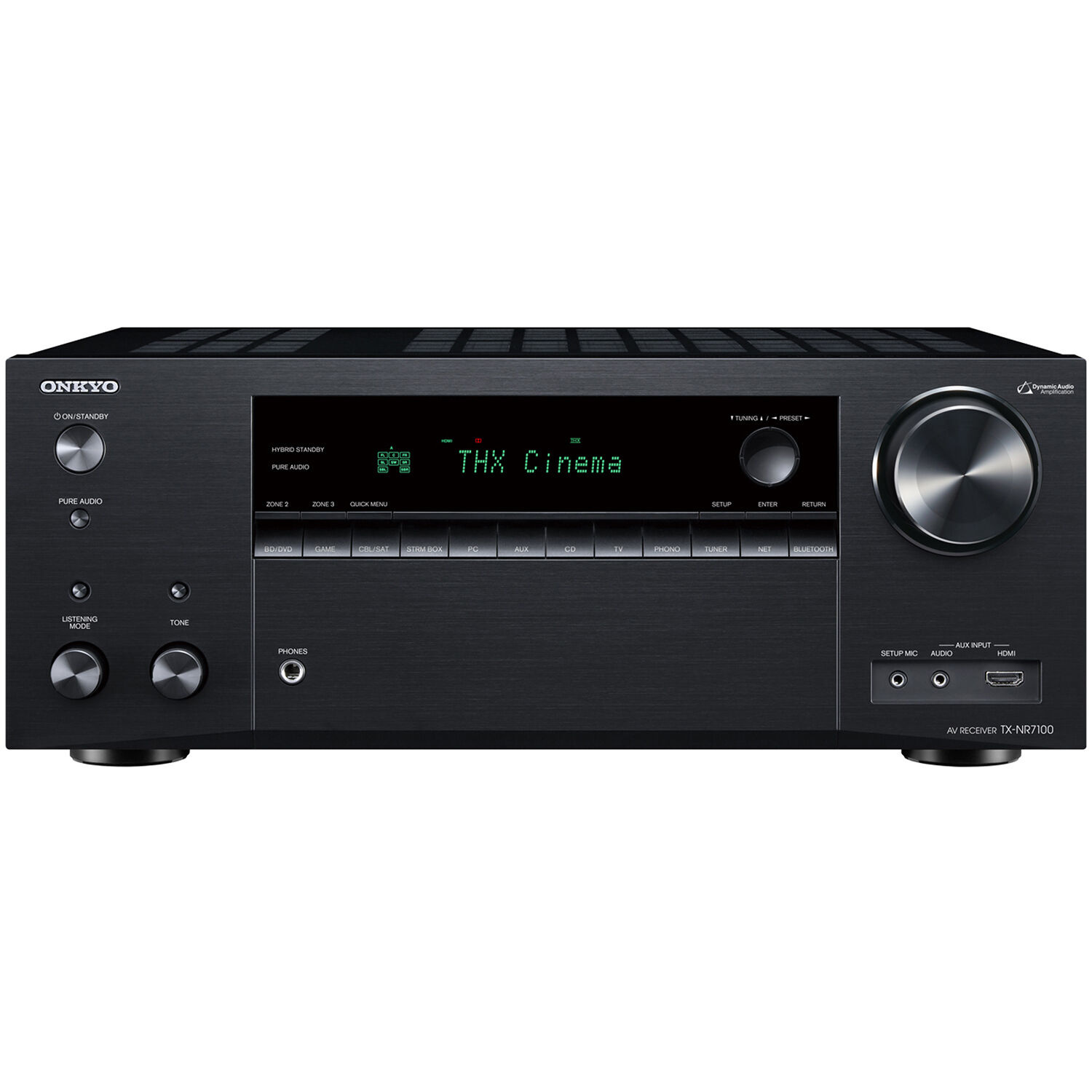

Onkyo TX-NR7100 9.2-Channel THX-Certified Network AV Receiver

Product #106723 | SKU TXNR7100B | Onkyo
Contact us for an ETA what does this mean?
Our Price $2,519
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • Up to 100W per Channel at 8 Ohms
  • 9.2-Channel Dolby Atmos, DTS:X Support
  • THX Certified with 4 x Listening Modes
  • 6 x HDMI Rear & 1 x HDMI Front Inputs
  • DIRAC Room Calibration
  • Klipsch Optimise Mode & Sonos Certified

Description

With 9 channels and built-in, ready-to-use Dirac Live® Room Correction, the Onkyo TX-NR7100 9.2-Channel THX-Certified Network AV Receiver brings new meaning to the phrase, “home movie night”. The Dirac Live® Room Correction offers improved musical staging, clarity, dialog, and deeper bass, while the additional two channels create a 5.1.4 Dolby Atmos® immersive surround sound experience.

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

Set up different high-definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver when the kids don’t feel like partaking in whatever you like or vice versa.**

State-of-the-art Dirac Live Room Correction technology unlocks your loudspeakers' full potential, improving audio performance across the full frequency band without additional upgrades. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or virtually wireless with the Dirac Live PC or MacOS* application and a 3rd party USB mic (not included). Now, you'll get a more accurate measurement of your surround sound system's positioning to be more precise and balanced, providing a better result with the increased upper limit of delay time from 20 to 50 milliseconds.

In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

Specifications

Amplifier
Channels 9.2
Power Output per Channel 1-Channel Driven:
220 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven:
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel 250 W at 3 Ohms (Front)
220 W at 4 Ohms (Front)
130 W at 8 Ohms (Front)
Frequency Response 10 Hz to 100 kHz +1/-3 dB (Direct, Pure Mode)
THD+N 0.08% (20 Hz to 20 kHz, Half Power)
Speaker Impedance 4 to 16 Ohms
Tone Control Bass (20 Hz): ±10.0 dB
Treble (20 Hz): ±10.0 dB
Audio Processing
DTS Compatibility DTS:X, IMAX Enhanced
Dolby Compatibility Dolby Atmos
Auro 3D Support No
Video
HDR Compatibility HDR10
Pass-Through Support 4K120p
Upscaling None
Connectivity
Rear A/V Inputs 6 x HDMI
1 x Digital Coaxial
1 x Optical TOSLINK
1 x RCA Component
2 x RCA Composite
1 x Stereo RCA (Phono) with Ground Screw
6 x Stereo RCA
Rear A/V Outputs 1 x HDMI Zone 2
1 x HDMI
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 / Zone B Line-Out
Front I/O 1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
1 x HDMI Input
Other Rear I/O 1 x RJ45 (Ethernet) Input/Output
1 x USB-A Input
1 x AM Block Input
1 x FM Coaxial F-Type Input
1 x DE-9 (RS-232C) Input
1 x 1/8" / 3.5 mm (12 V Trigger) Output
Speaker I/O 9 x Binding Post Pairs (Front, Centre, Height, Rear, Rear Surround)
HDCP Support Yes, Version 2.3
HDMI Compression Modes 4K120AB / 8K60B
Audio Return Channel (ARC) ARC, eARC
HDMI CEC Yes
Input Impedance Line, Phono (MM): 47 Kilohms
Input Sensitivity Line: 200 mVrms
Phono (MM): 3.5 mVrms
Rated Output / Impedance Subwoofer Pre-Out: 1 Vrms / 470 Ohms
Zone B / 2 Line-Out: 200 mVrms / 470 Ohms
Signal to Noise Ratio Line: 106 dB (IHF-A)
Phono: 80 dB (IHF-A)
Wireless Connectivity
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth None
Supported Audio Codecs AAC, aptX, aptX HD, SBC
Wireless Audio Protocols AirPlay, AirPlay 2, Chromecast built-in, DTS Play-Fi
Control
Mobile App Compatible Yes
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Tuner Section
Tuner Type AM, FM
Number of Tuner Presets 40 Stations
Radio Frequencies AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz
Power
AC Input Power 120 VAC, 60 Hz
Power Consumption Active: 750 W
No Sound: 75 W
Standby: 0.1 W
Physical
Dimensions (W x H x D) 17.1 x 6.8 x 14.9" / 435.0 x 173.5 x 379.5 mm
Weight 22.9 lb / 10.4 kg

In The Box

  • Onkyo TX-NR7100 9.2-Channel THX-Certified Network AV Receiver
  • Remote Control with Batteries
  • Power Cord
  • Indoor FM Antenna
  • AM Loop Antenna
  • Speaker Setup Microphone
