PTZOptics MiniJoy Controller

Product #128202 | SKU PT-MINIJOY-G1 | PTZOptics
| Write a review
Pre-Order ETA to be confirmed what does this mean?

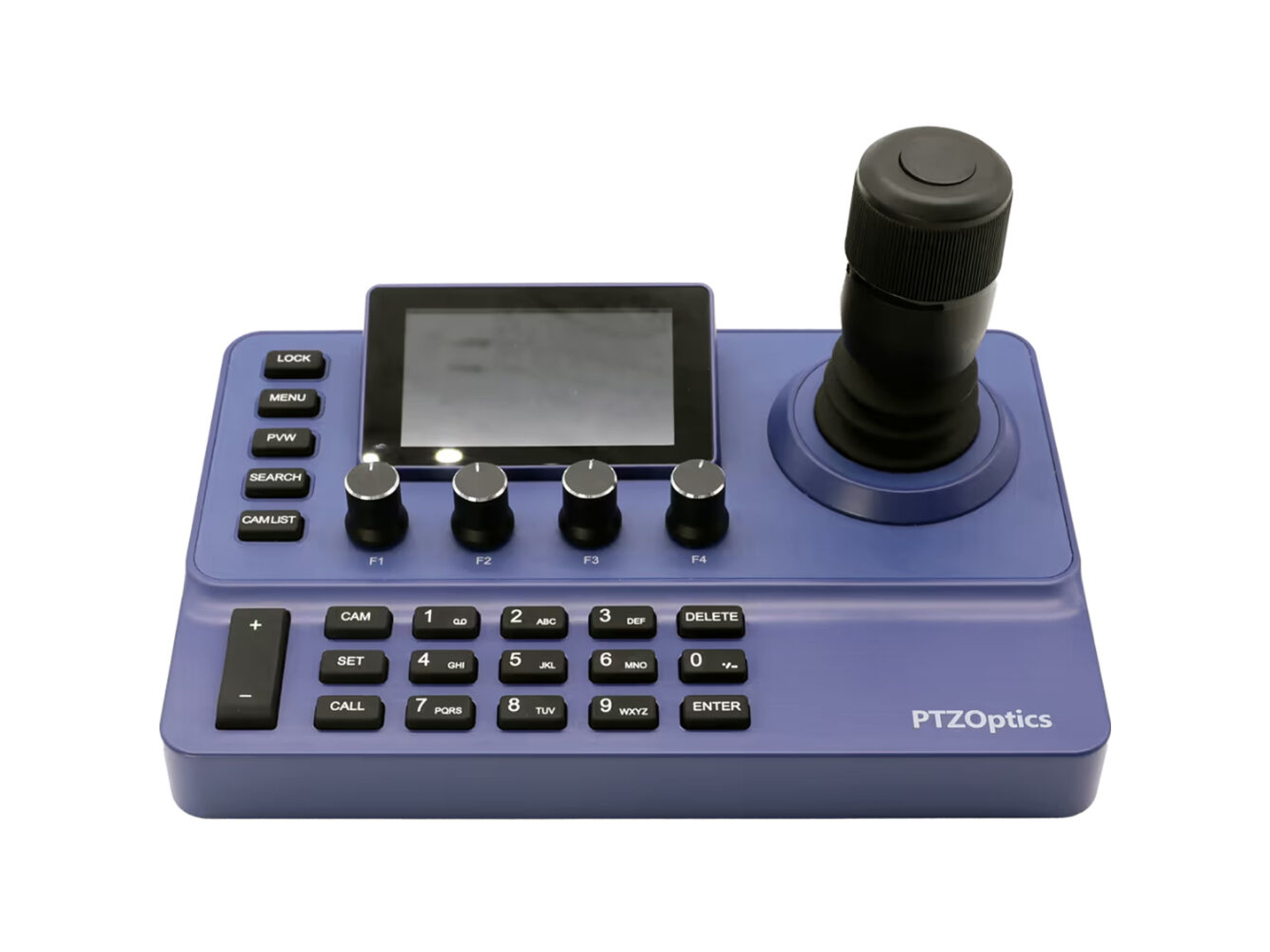

PTZOptics MiniJoy Controller
Pre-order
$1,929
A deposit of $195.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
- +
Delivery Options
Calculate Shipping
FREE Pickup
View stock availability
Email me when stock arrives
Have a question about this product? Send us a message
Request price match
View our returns policy

Features

  • Compact PTZ control for tight spaces
  • Discovers cameras with live video preview
  • 24 customizable controls across six pages
  • Integrated 3-inch display with NDI®
  • 4K30 HDMI with PoE or DC
  • Supports IP, serial, VISCA, ONVIF

Description

The PTZOptics MiniJoy Controller combines professional IP and serial PTZ camera control in a remarkably compact design. Discover cameras across your network, preview NDI® and RTSP video, and access camera movement, presets and production commands from one intuitive interface. With flexible customization and integrated video monitoring, MiniJoy simplifies control for productions of every size.

Features
  • Network camera discovery and configuration through a browser-based interface
  • Integrated 3-inch display with NDI® and RTSP video preview
  • 24 customizable control slots across six pages with an extensive PTZOptics command library
  • 4K30 HDMI output with flexible PoE or DC power options

Specifications
Number of Supported Cameras 1000 Channels
Video
Internal Recording No
Video Output via HDMI
3840 x 2160 at 30.00 fps
IP Streaming NDIHX and RTSP: UHD 4K at 30p
Interface
Controls 1x 3-Axis Joystick
1x Zoom Rocker
4x Knob
Video I/O 1x RJ45 LAN Input/Output
1x HDMI 2.0 Output
Control I/O 1x Block 5-Pin (RS-422/RS-485)
Embedded Audio No
Power I/O 1x Barrel (12 VDC) Input
Media/Memory Card Slot No
Wireless No
Compatibility Universal
Protocols
Supported Protocols NDI/ONVIF/Pelco-D/Pelco-P/RS-422/RS-485/TCP/VISCA
Presets 255
Baud Rate 115,200 / 38,400 / 19,200 / 9600 / 4800 / 2400 b/s
Integrated Display
Panel Type LCD
Display Size 3" / 8 cm
Touchscreen No
Power
PoE Support Yes: PoE 802.3af
Power Consumption 3 W
Input Power 12 VDC at 0.25 A
General
Operating Conditions 14 to 104°F / -10 to 40°C
Storage Conditions -4 to 140°F / -20 to 60°C
Security Lock Support No
Dimensions 8.3 x 5.4 x 4" / 210 x 138 x 101 mm
Weight 1.8 lb / 0.8 kg

In The Box

  • PTZOptics MiniJoy Controller

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: PTZOptics MiniJoy Controller
  • Manufacturer: PTZOptics
  • Model: PT-MINIJOY-G1
  • SKU: PT-MINIJOY-G1
  • RM Product #: 128202
  • Warranty: 5 Year Manufacturer warranty
