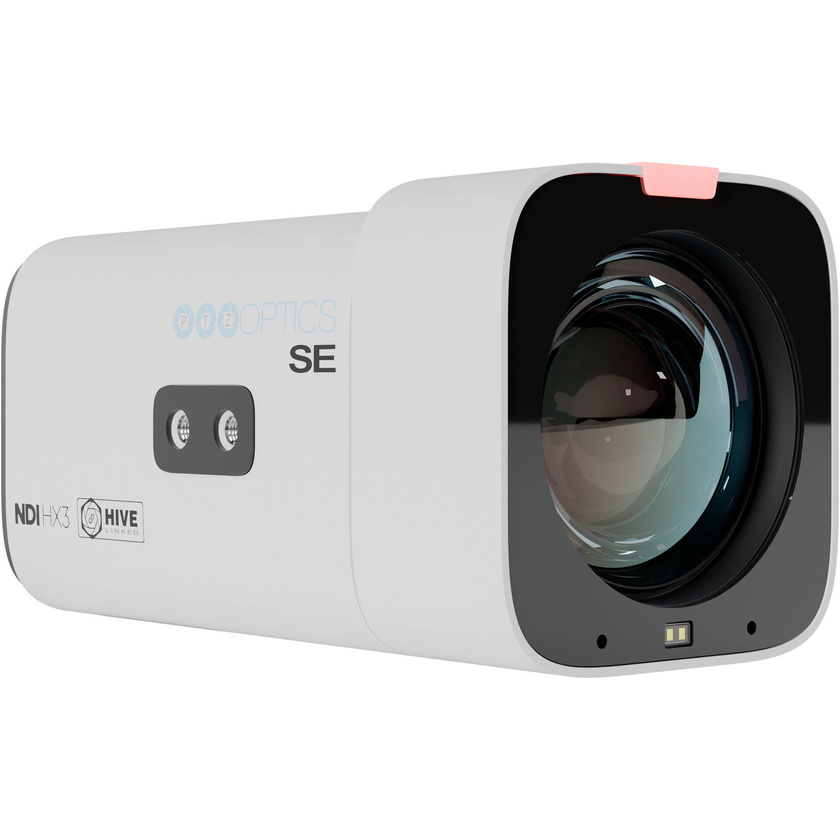

PTZOptics Studio SE Hive-Linked Camera with 12x Optical Zoom (White)

Product #122691 | SKU PT12X-STUDIO-SE-WH-G3 | PTZOptics
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $2,169
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Link to Easy Hive Studio Platform
  • Up to 1080p60 Video, 1/2.8" CMOS Sensor
  • 3G-SDI, HDMI & USB-C Outputs
  • IP & Native NDI HX3 Streaming
  • 12x Optical Zoom, 16x Digital Zoom
  • 72.5 to 6.9° Field of View

Description

Get remote camera control and future-proof connectivity for your content creation with the PTZOptics Studio SOE Hive-Linked Camera with 12x Optical Zoom (White). This compact camera features a 12x optical zoom and native NDI HX3, 3G-SDI, HDMI, USB-C, and IP outputs. Its Hive Studio link provides an instant connection to PTZOptic's easy online platform.

Designed for Content Creation

The Studio SE is a convenient content creation and livestreaming solution that uses a 1/2.8" CMOS sensor to support up to 1080p60 video capture. It features a 12x optical zoom, 72.5 to 6.9° field of view, front-tally light, built-in microphone, and line input and output.

Multiple Output Options Including NDI HX3

Simultaneously outputs:

  • HDMI or SDI + IP + RTMP + NDI
  • HDMI or SDI + USB
  • HDMI or SDI + IP + USB

The Studio SE camera comes native with NDI HX3, so no additional license is needed to access your camera over the network.

Control Options

The Studio SE offers flexible control via the included IR remote, a web UI, PTZ control app, USB port, PTZOptics joysticks, camera management platform, and Hive Studio.

Power Methods

Power the Studio SE camera using the included AC adapter or using PoE with a separate network switch.

Specifications

Inputs/Outputs
USB I/O 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output
1 x USB-A Female Input
Video I/O 1x RJ45 (NDI) Output
1x HDMI Output
1x BNC (3G-SDI) Output
Audio I/O 1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Line Output
Internal Storage Yes
Other Input/Output Control: 1 x RS485 3-Pin Block
Optical Zoom 12x
Field of View 72.5 to 6.9°
Power
Power Source AC Adapter with Power Brick (Included), PoE (Not Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Power Consumption 18 W (Maximum)
Operating Current 2 A (Maximum)
Physical
Mounting Top: 1x Shoe Mount
Bottom: 1x 1/4"-20 Thread
Colour White
Material of Construction Aluminium, Plastic
Operating Conditions 14 to 104°F / -10 to 40°C at 10 to 80% Humidity
Storage Conditions -40 to 140°F / -40 to 60°C at 10 to 80% Humidity
Dimensions 5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm
Weight 24 oz / 680 g

In The Box

  • PTZOptics Studio SOE Hive-Linked Camera with 12x Optical Zoom (White)
  • 12V, 2A International Power Supply
  • Lens Cap
  • USB-A to USB-C Cable
  • IR Remote
  • 2 x AAA Battery

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: PTZOptics Studio SE Hive-Linked Camera with 12x Optical Zoom (White)
  • Manufacturer: PTZOptics
  • Model: Studio SE Hive-Linked Camera 12X
  • SKU: PT12X-STUDIO-SE-WH-G3
  • RM Product #: 122691
  • Resolution: 1080P
  • Optical Zoom: 12.00000x
  • PoE Capable: Yes
  • Interface: HDMI
  • Interface: 3G-SDI
  • Interface: NDI
  • Warranty: 5 Year Manufacturer warranty
