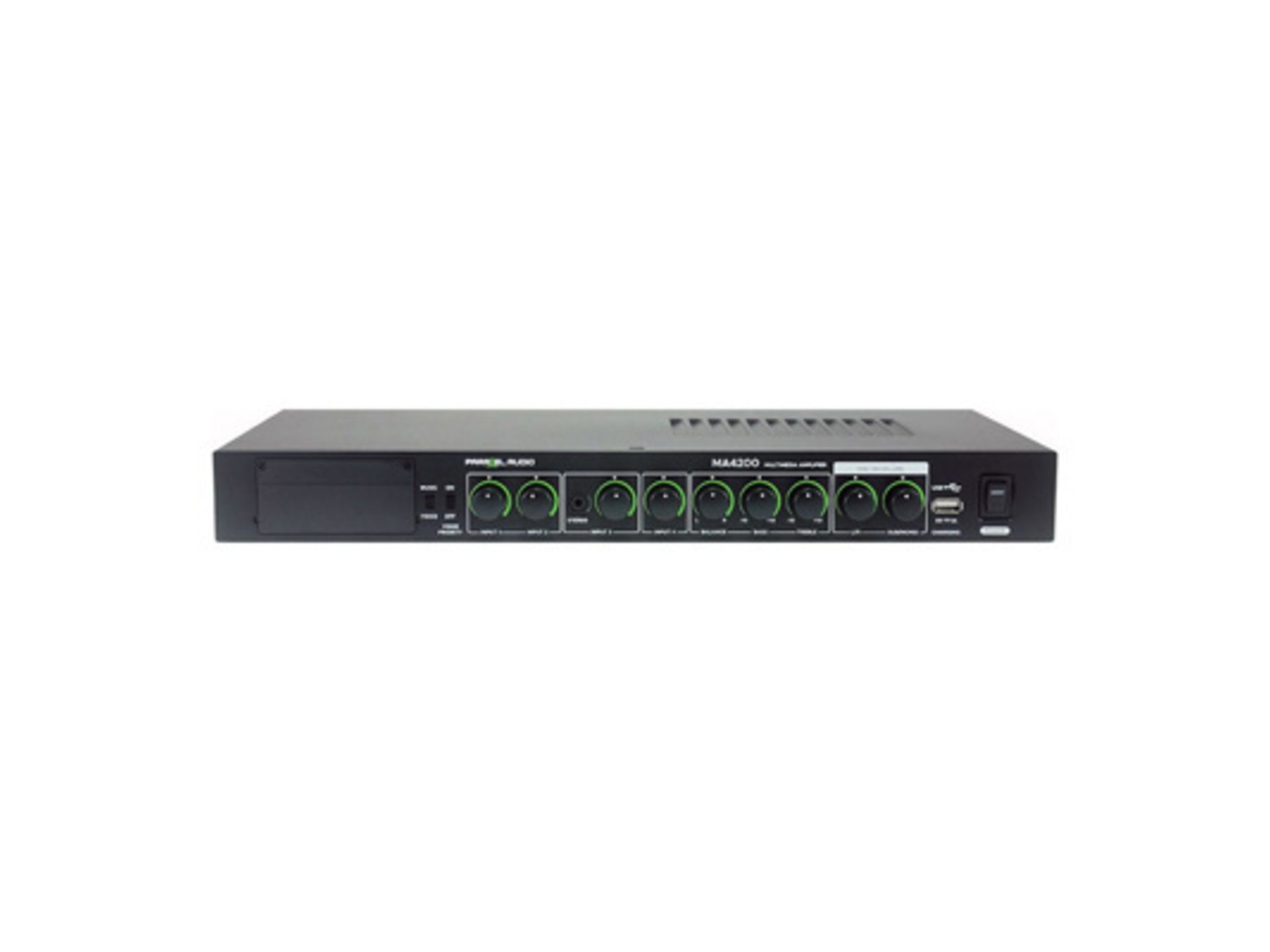

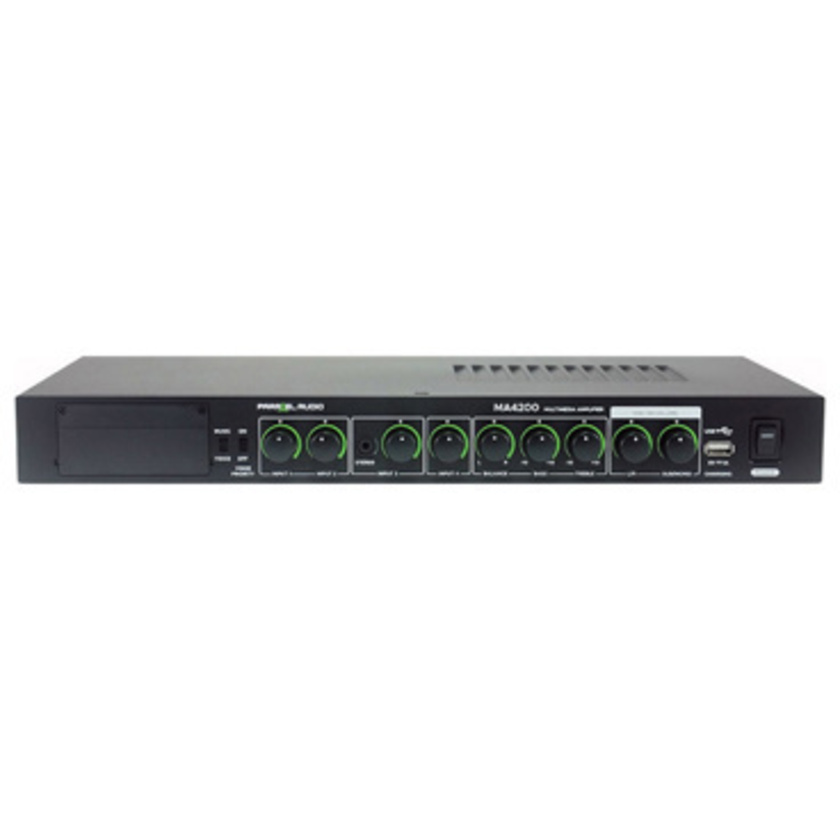

Parallel Audio 2.1 Channel 200W Mixer Amplifier

Product #116961 | SKU PA-MA4200 | Parallel Audio
Usually ships in 1 - 2 weeks what does this mean?
Our Price $1,049
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Class D audio amplifiers
  • Compact all-in-one design
  • Bass, treble and balance control
  • Low-pass control
  • Easy-to-use design
  • Plug and play

Description

The Parallel Audio 2.1 Channel 200W Mixer Amplifier offers a compact and efficient audio amplification solution. With its high-powered Class D amplifiers, it delivers impressive performance in a professional 1RU 19" metal chassis. Unlike other amplifiers, it is designed without noisy cooling fans, ensuring a silent operation. The mixer amplifier features bass, treble, and balance controls, as well as separate volume controls for left and right channels, along with a dedicated control for the subwoofer. It also includes two AUX inputs with individual volume control, supporting both RCA stereo and phone jack 3.5mm stereo connections. Additionally, it provides a MIC IN port that accepts both XLR and phone jack 6.3mm inputs. For output options, it offers AUX OUT with an RCA stereo connector for line level output, as well as an assistive listening device (ALD) output with volume control using a phone jack 3.5mm connector. The mixer amplifier also features a DC power output of 12V/200mA and a 5VDC output (USB A) for low power accessories. It incorporates VOICE PRIORITY & LOW CUT functionality that can be switched on or off for all MIC inputs. Furthermore, it is designed to be compatible with smartphone audio outputs, making integration seamless. Its user-friendly design allows for easy installation without requiring any technical background or specialized tools. Simply plug and play, and enjoy the convenience of this versatile mixer amplifier.

Specifications

Supply voltage 18~24VDC / 5A min. (by external switching power supply)
Power output All in all about 200W RMS
Frequency response L&R: 2020,000Hz ±3dB Subwoofer: 20250Hz ±3dB
Input wired microphone 1 x XLR phantom powered1 x Phone jack 6.3mm
All microphone inputs Voice priority and low cut switch on front panel
Input AUX 1 RCA (stereo) line level
Input AUX 2 Phone jack 3.5mm (stereo) line level
Output AUX RCA (stereo) line level (output of mixed signal)
Outputs L&R Phone jack 6.3mm (mono) & screw terminals 5.08mm
Output subwoofer Phone jack 6.3mm (mono) & screw terminals 5.08mm0ø/180ø phase switch provided on the rear side
200W RMS at 4ê (2x50W stereo output + 100W subwoofer channel)
Output ALD Phone jack 3.5mm (stereo) line level
Output USB Socket type A, for external low power devices (200mA max.)
Output DC About 12VDC/200mA for external low power devices
Dimensions (mm) 482 (W) x 200 (D) x 44 (H)
Weight (kg) 2.06

In The Box

  • Parallel Audio 2.1 Channel 200W Mixer Amplifier

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Parallel Audio 2.1 Channel 200W Mixer Amplifier
  • Manufacturer: Parallel Audio
  • Model: PA-MA4200
  • SKU: PA-MA4200
  • RM Product #: 116961
