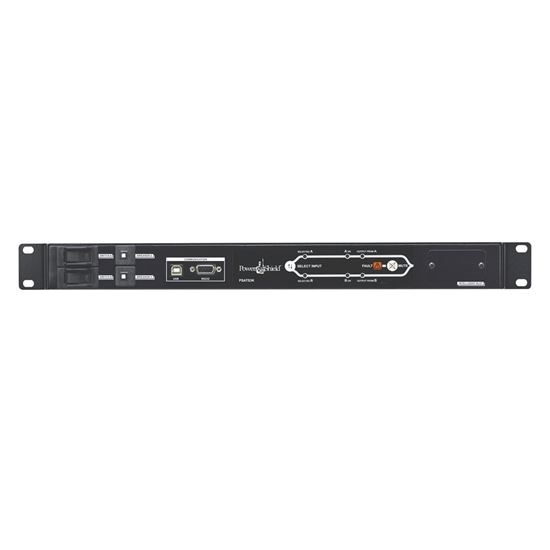

Powershield PSATS3K Automatic Transfer Switch

Name: Powershield PSATS3K Automatic Transfer Switch
Brand: Powershield
SKU: 102712
Price: 1269.00 NZD
Availability: InStock

Product #102712 | SKU PSATS3K | Powershield

| Write a review

In Stock Ships in 3 - 5 working days

Powershield PSATS3K Automatic Transfer Switch

Our Price $1,269

In Stock Ships in 3 - 5 working days

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships in 3 - 5 working days. Deliver to Auckland for $15 Change location

Click & Collect

Check availability

Features

User-selectable power source from the front panel
Dual power supply for redundancy
Provides seamless power switch for IT equipment
Built-in USB and RS232
AS400 dry contacts included
SNMP remote monitoring option available

Description Specifications In The Box

Description

The Powershield PSATS3K Automatic Transfer Switch is designed with two independent power inlets to supply power to the load from a primary or secondary power source. Should the primary power source fail, the secondary will automatically supply power to the connected equipment. The transfer time from one power source to the other is seamless to the connected equipment. PowerShield ATSAfter switching to a secondary power source, the ATS can also switch the power back to the primary input when power to the primary input is restored.

Specifications


Input
Input Voltage	220/230/240Vac
Acceptable Input Voltage	180 - 270Vac (selectable ranges)
Input Frequency	50Hz / 60Hz
Maximum Input Current	16A
Output
Output Voltage	220/230/240Vac
Transfer time	9 ms (typical)
Connection
Input	2 x 16A (C20)
Output	8 x 10A (C13), 1 x 16A (C19)
Communication Included	USB, RS232 and AS400
Communication Optional	SNMP card
Physical
Dimensions (D x W x H)	(330 x 483 x 44) mm
Net Weight	5kgs
