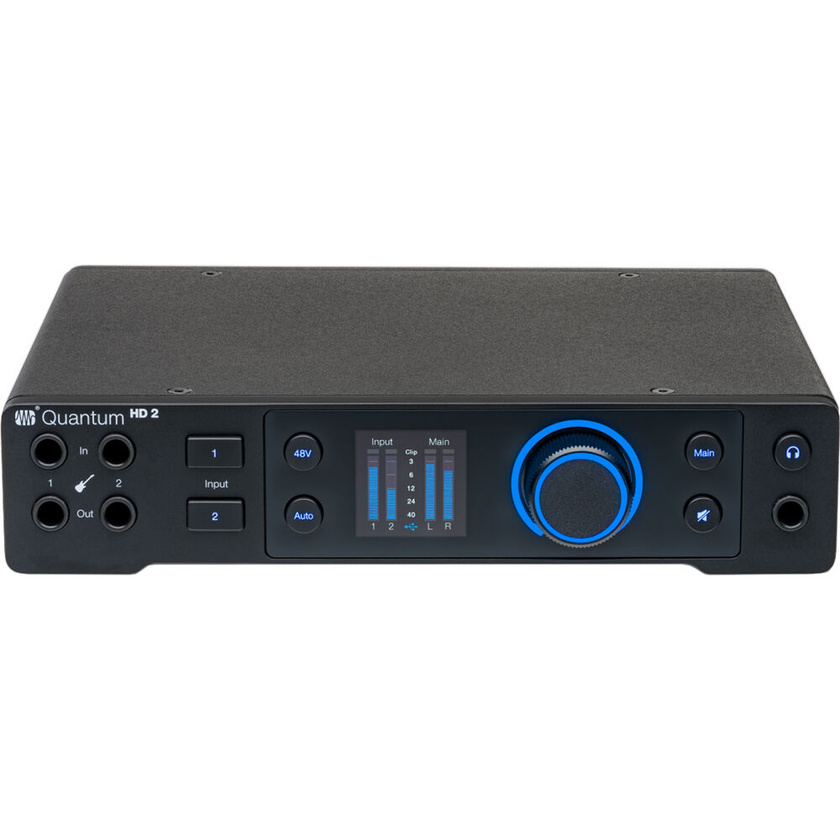

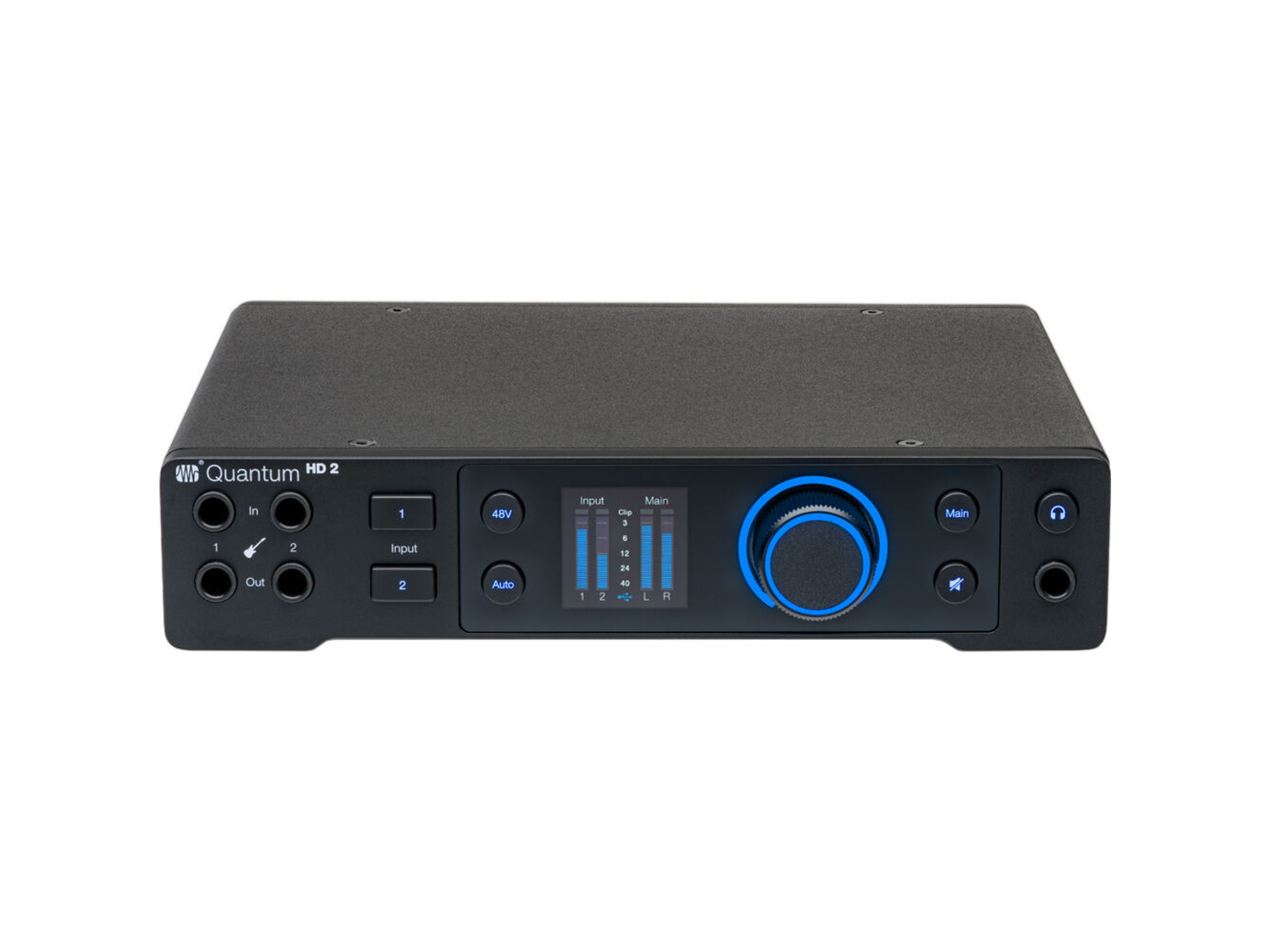

The PreSonus Quantum HD 2 USB-C Audio Interface is a top-notch desktop audio interface that combines 30 years of design experience to deliver high-quality audio and versatile connectivity options for studio or live performances. With its two high-definition MAX-HD mic preamps and +75 dB of gain, it's perfectly suited for today's popular microphones. Guitarists and bassists will appreciate the front-facing instrument inputs, developed in collaboration with Fender engineers. The Quantum HD 2 also features 32-bit / 192 kHz convertors with 124 dB dynamic range for exceptional audio fidelity. Whether recording on a computer or mobile device, this interface offers seamless integration and hassle-free operation. With its auto gain button, preamp outputs, built-in DSP monitor mixer, loopback audio, and ADAT I/Os, the Quantum HD 2 provides ample creative possibilities for both recording and streaming. The Universal control app allows for convenient remote control and mobile recording, making it a truly versatile tool for audio professionals. Plus, it comes with professional recording software so you can start producing right away.
PreSonus Quantum HD 2 USB-C Audio Interface has been discontinued, here are some related products you might like:
View PreSonus Quantum 2 22x24 Thunderbolt 2 Low-latency Audio Interface
PreSonus Quantum 2 22x24 Thunderbolt 2 Low-latency Audio Interface
$1,029
PreSonus Quantum HD 2 USB-C Audio Interface
This product is no longer available
Features
- For Producers, Musicians, Creators
- AC Powered, Mac/Windows/iOS/Android
- 2 Mic / Line / Hi-Z Preamp
- 2 Reamp Out, 4 Line Out, 1 Phone Out
- 32-Bit / 192 kHz AD/DA Conversion
- Auto Gain, Low Latency, 48V Phantom
Description
Specifications
| Key Specs | |
| Channels of I/O | 20 Inputs / 24 Outputs |
| Channels of I/O | Analogue: 2 Input / 6 Output ADAT: 16 Input / 16 Output at 48 kHz S/PDIF: 2 Input / 2 Output at Up to 192 kHz |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 2 |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced Mic/Line Input 2x 1/4" TS Unbalanced Hi-Z Input 4x 1/4" TRS Balanced Line/Monitor Output 2x 1/4" TS Unbalanced Hi-Z Output 1x 1/4" TRS Headphone Output |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input (S/MUX Support) 2x TOSLINK Optical ADAT Output (S/MUX Support) 1x RCA Coaxial S/PDIF Input (on Included Breakout Cable) 1x RCA Coaxial S/PDIF Output (on Included Breakout Cable) |
| Host Connection | USB-C |
| OS Compatibility | macOS Windows |
| Power Requirements | AC/DC Power Adapter (Included) |
| Channels of I/O | 20 Inputs / 24 Outputs |
| Channels of I/O | Analogue: 2 Input / 6 Output ADAT: 16 Input / 16 Output at 48 kHz S/PDIF: 2 Input / 2 Output at Up to 192 kHz |
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 2 |
| Built-In Microphone | No |
| Input Level Adjustment | via Software |
| Expansion Slots | No |
| Signal Processing | |
| Gain/Trim Range | Mic Inputs: 75 dB |
| Solo/Mute | Mute per Master |
| Connectivity | |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced Mic/Line Input 2x 1/4" TS Unbalanced Hi-Z Input 4x 1/4" TRS Balanced Line/Monitor Output 2x 1/4" TS Unbalanced Hi-Z Output 1x 1/4" TRS Headphone Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input (S/MUX Support) 2x TOSLINK Optical ADAT Output (S/MUX Support) 1x RCA Coaxial S/PDIF Input (on Included Breakout Cable) 1x RCA Coaxial S/PDIF Output (on Included Breakout Cable) |
| Host Connection | USB-C |
| Host Connection Protocol | Not Specified by Manufacturer |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | 1x DIN 5-Pin Input (on Included Breakout Cable) 1x DIN 5-Pin Output (on Included Breakout Cable) |
| Wireless | No |
| Performance | |
| Frequency Response | Mic, Line, Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB Line, Monitor Outputs: 20 Hz to 20 Hz ±0.2 dB Headphone Outputs: 20 Hz to 20 kHz ±0.3 dB |
| Maximum Input Level | Mic Inputs: +18 dBu Hi-Z Inputs: +21 dBu Line Inputs: +18 dBu |
| Maximum Output Level | Line/Main Outputs: +18 dBu Headphone Outputs: 11 dBu (at 50 Ohms) |
| Impedance | Mic Inputs: 1600 Ohms Hi-Z Inputs: 1 Megohm Line Inputs: 10 Kilohms Line/Main Outputs: 51 Ohms Headphone Outputs: 33 Ohms |
| Dynamic Range | Mic Inputs: 116 dBA Hi-Z Inputs: 111 dBA Line Inputs: 118 dBA Line/Monitor Outputs: 123 dBA Headphone Outputs: 118 dBA Digital AD/DA Convertors: 124 dB |
| THD | Mic Inputs: 0.002% Hi-Z Inputs: 0.003% Line Inputs: 0.001% Line/Monitor Outputs: 0.001% Headphone Outputs: 0.001% |
| EIN | -130 dBu A-Weighted |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 32-Bit |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| OS Compatibility | macOS Windows |
| Mobile App Compatible | Yes: Android & iOS App Name: Universal Control App Functionality: Adjust Settings, Remote Control |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC at 2 A |
| Physical | |
| Dimensions | 8.5 x 7.5 x 1.9" / 21.6 x 19.1 x 4.8 cm |
| Weight | 2.9 lb / 1.3 kg |
In The Box
- PreSonus Quantum HD 2 USB-C Audio Interface
- DB-9 Breakout Cable (MIDI and S/PDIF I/O)
- USB-C to USB-C Cable
- AC Power Adapter
