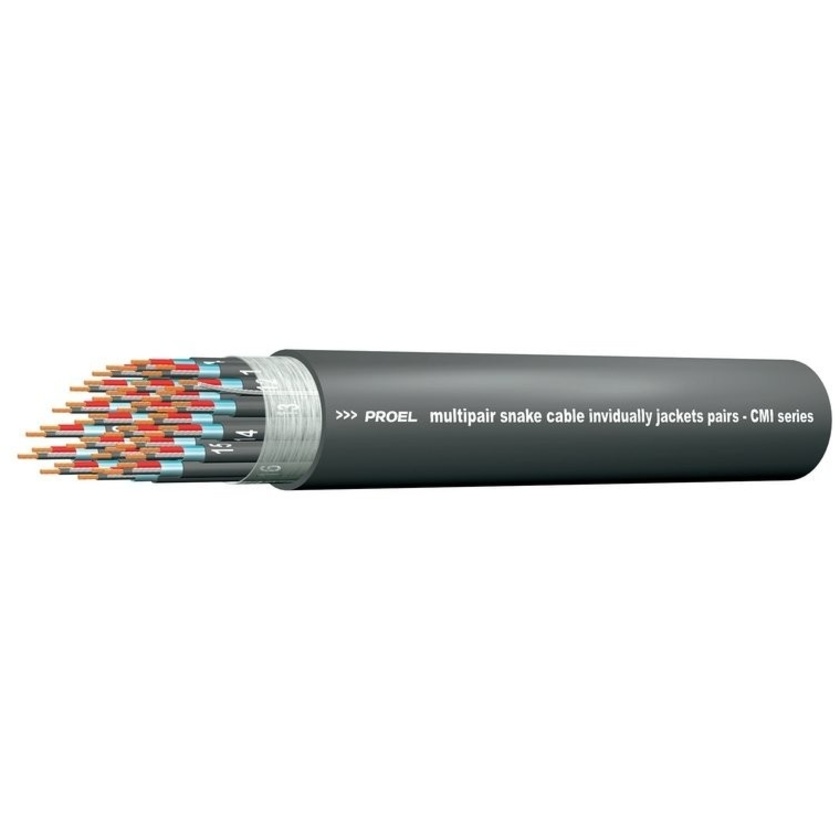

The Proel Bulk Signal Multicore 8 Way Cable consists of 100% shielded pairs (two insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects), individually number-printed and coloured to allow an easy identification (therefore reducing connection time). The PVC overall jacket offers a good flexibility even at high temperatures. The cable extreme flexibility allows an easy winding.
Note: Priced and sold by the Metre
| Application fields | Live events monitoring |
| Conductors | Bare copper |
| 24 AWG = 28 x 0.10 mm (0.22 mm²) | |
| Insulation | XLPE ø 1 mm |
| Display | CONDUCTORS |
| Aluminium-Mylar 100% | |
| CABLE | Cotton tape 100% |
| Drain wire | Tinned copper |
| 24 AWG = 7 x 0.18 mm (0.22 mm²) | |
| Jacket | PAIRS |
| PVC ø 2.80 mm | |
| CABLE | PVC 70 shore |
| ø 9.30 mm | |
| Conductor resistance | < 87 Ohm/Km @ 20°C |
| Conductor/conductor capacitance | 63 pF/mt @ 1 KHz |
| Conductor/shield capacitance | 107 pF/mt @ 1 KHz |
| Nominal Impedance | 80 Ohm ± 3 Ohm |
| Attenuation | 1 MHz = 2.10 dB/100 mt |
| 3 MHz = 3.60 dB/100 mt | |
| 6 MHz = 5.00 dB/100 mt | |
| 8 MHz = 5.80 dB/100 mt | |
| 10 MHz = 6.50 dB/100 mt | |
| Velocity of propagation | 66 % |
| Operating temperature | -20°C / +80°C |
| Working voltage | 700 V AC |
| 1000 V DC | |
| Minumum bending radius | 18x overall diameter |
| Weight | 164 kg/Km |
