The Proel Installation Microphone Cable Foil Shield (100m, White) is a balanced coaxial installation cable featuring two conductors of 0.22 mm² each, constructed with Oxygen-Free Copper (O.F.C.) to ensure optimal signal transmission. The cable is designed with a compact outer diameter and is equipped with an overall aluminium foil shield, providing effective protection against external electromagnetic interference.

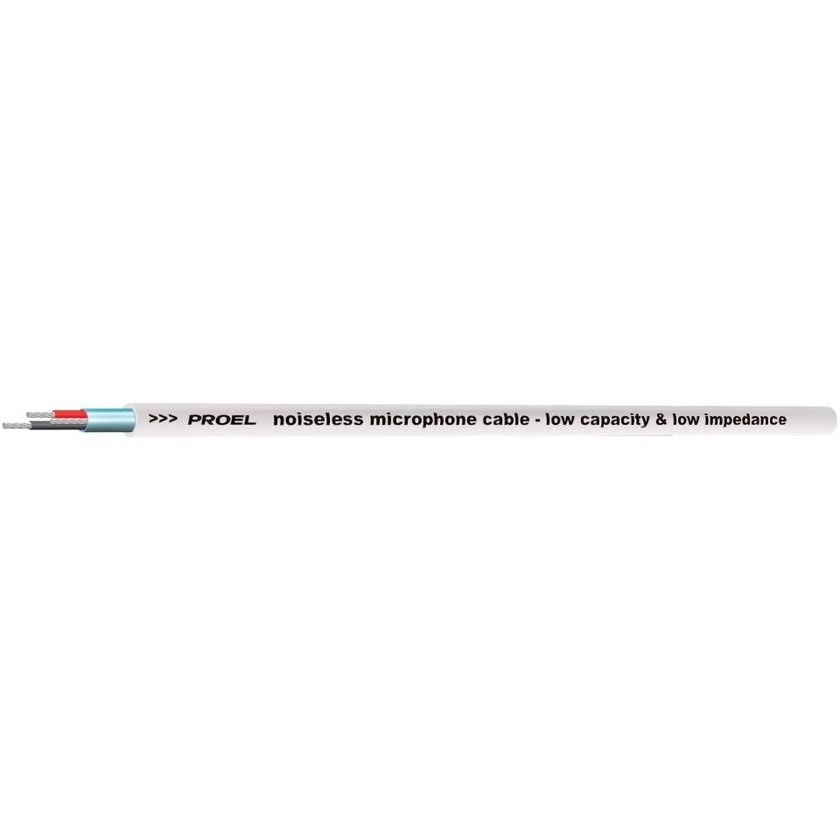

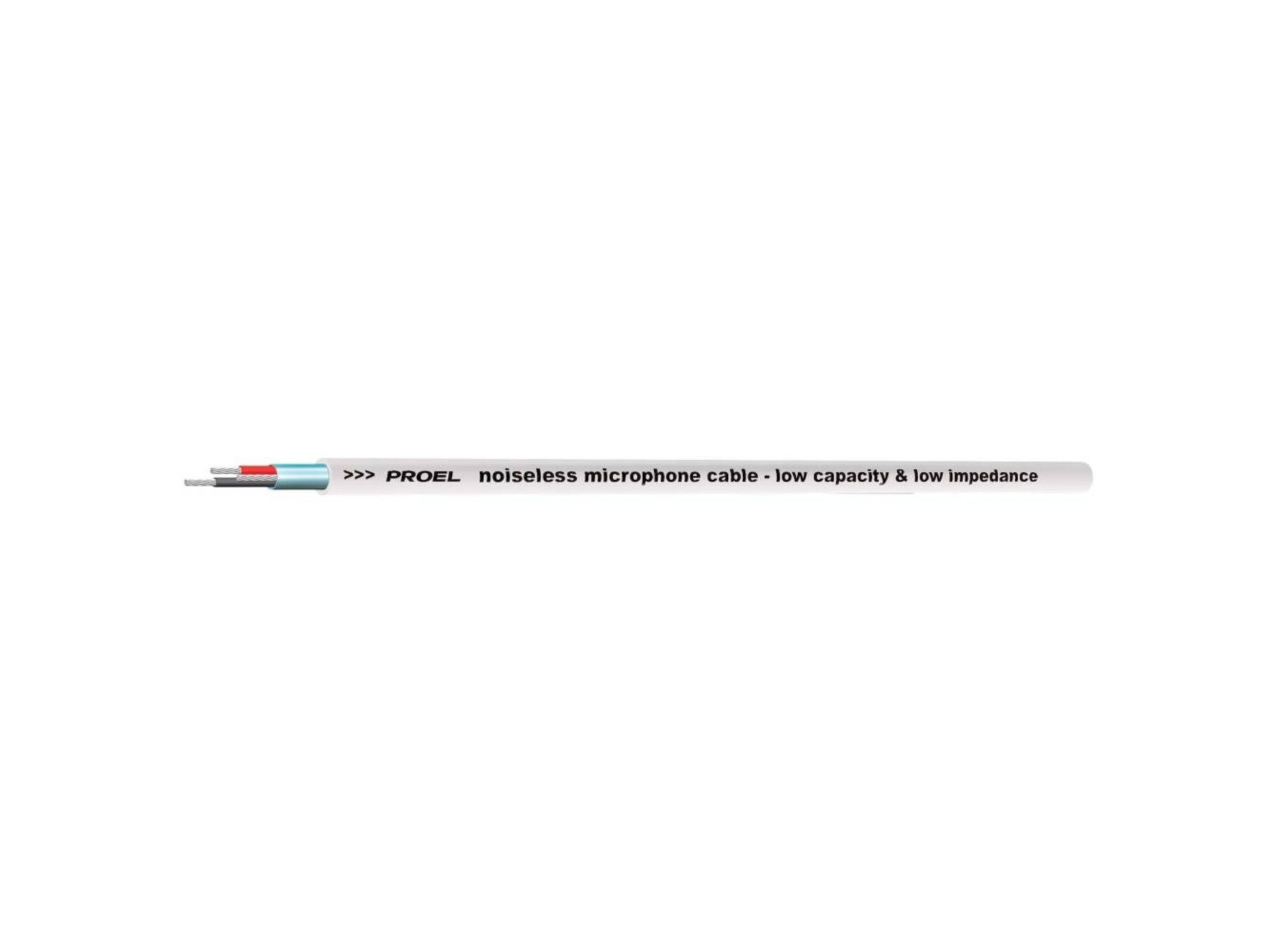

Proel Installation Microphone Cable Foil Shield (100m, White)
In stock Ships tomorrow
Our Price
$249
In stock Ships tomorrow
this item may be nonreturnable
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $36
Change location
Click & Collect Availability
Wellington
Out of stock.
Click & Collect
Features
- Balanced coaxial design for professional installations
- 2 x 0.22 mm² conductors
- Oxygen-Free Copper (O.F.C.) construction
- Small diameter for easy routing and installation
- Aluminium foil shield for comprehensive interference protection
- Durable overall jacket suitable for a variety of environments
Description
Specifications
| Application fields | Patch-bay connections / Multieffect connections / Rack system connections |
| Conductors | Tinned copper - 24 AWG 7 x 0.20 mm (0.22 mm2) |
| Insulation | PE Ø 1.05 mm |
| Shield | Aluminium foil 100%% |
| Jacket | Flexible PVC 80 shore Ø 4.00 mm |
| Colour | Black |
| Drain wire | Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm2) |
| Electrical resistance | 87 Ohm/Km (conductor) @ 20°C |
| Electrical capacitance | 63 pF/m (conductor/conductor) @ 1 KHz 107 pF/m (conductor/shield) @ 1 KHz |
| Nominal impedance | 80 +-3 Ohm |
| Attenuation | 1 MHz = 2.10 dB/100 m 3 MHz = 3.60 dB/100 m 6 MHz = 5.00 dB/100 m 8 MHz = 5.80 dB/100 m 10 MHz = 6.50 dB/100 m |
| Velocity of propagation | 66 % |
| Operating temperature | -20°C / +80°C |
| Working tension | < 50 V AC < 75 V DC |
| Weight | 20 Kg/Km |
| Minimum bending radius | 25 mm |
In The Box
- Proel Installation Microphone Cable Foil Shield (100m, White)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Proel Installation Microphone Cable Foil Shield (100m, White)
- Manufacturer: Proel
- Model: HPC80WH
- SKU: HPC80WH
- RM Product #: 125100
- Length Meters: 100 m
- Warranty: 1 year manufacturer warranty
