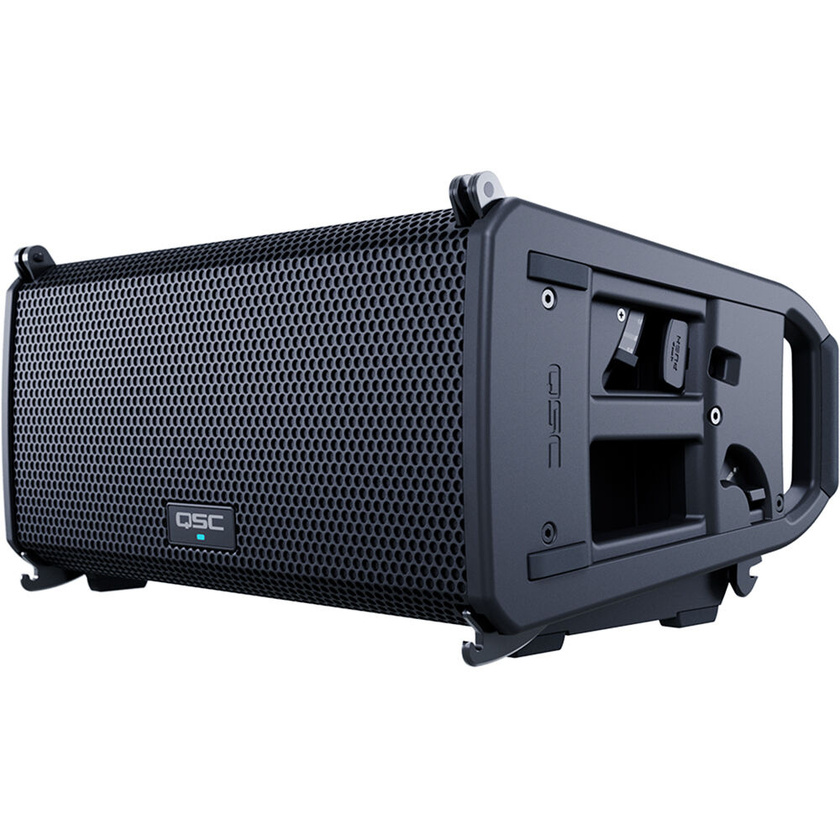

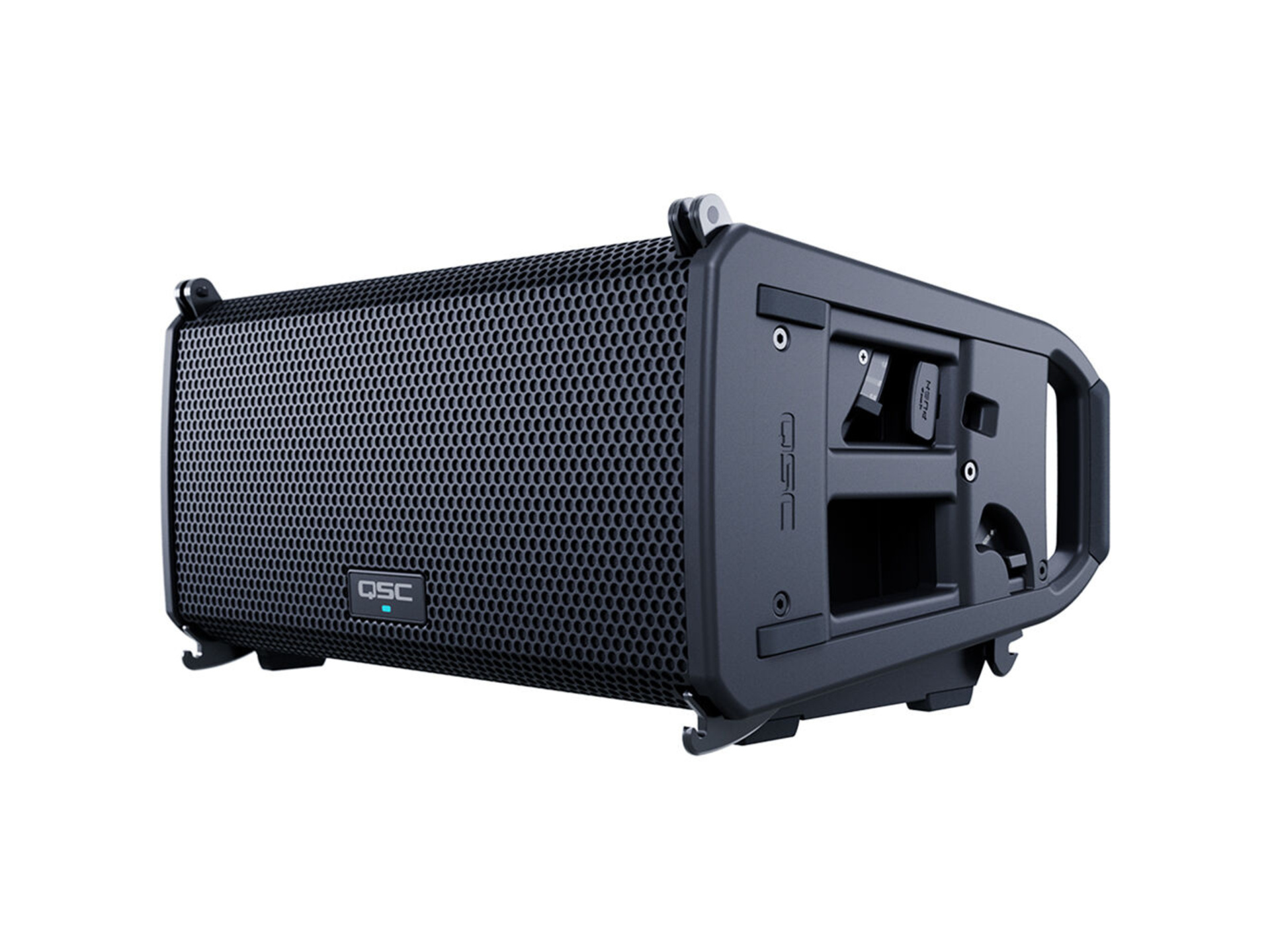

QSC LA 108 1300W Active 8" Line Array Loudspeaker (Black)

Product #119350 | SKU LA108 | QSC
In stock Ships Monday
Our Price $5,999
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $38 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Plug-and-Play High-Tech AV Instals
  • 8" Woofer
  • 1.75" Compression Tweeter
  • 1000W + 300W Class-D Amplifier Module
  • XLR and powerCON I/O Connectors
  • QSC LEAF Waveguide

Description

Audio professionals seeking a top-tier intelligent line array system should consider the QSC LA 108 1300W Active 8" Line Array Loudspeaker. This impressive piece of equipment boasts cutting-edge innovation, refined engineering, and exceptional ease of use, making it ideal for a variety of applications such as live venues, fixed installations, mobile entertainers, AV rental, and event production.

Equipped with a powerful 1300W Class-D amplifier module, the LA108 delivers 1000W to the 8" woofer and 300W to the 1.75" compression driver. This results in a comprehensive frequency response ranging from 62 Hz to 20 kHz, with a maximum sound pressure level of 134 dB. The rear panel is user-friendly, featuring a 2.4" full-colour display with rotary push button controls for configuring speaker settings and fine-tuning the audio output. Additionally, there are two 3-pin XLR connectors, powerCON True 1 I/O connectors, and two RJ45 etherCON network I/O connectors that are compatible with Dante and QSC SysNav technology. The LA 108 also comes with a powerCON TRUE 1 power cord for added convenience.

Specifications

Key Specs
Configuration Active 2-Way
Enclosure Type Bass-Reflex Line Array
Total Power Capacity 1300 W
HF Driver 1 x 1.75" / 44 mm Compression Driver
LF Driver 1x 8" / 203.2 mm Woofer
Frequency Range 57 Hz to 20 kHz -10 dB
Wireless Connectivity No
Enclosure Type Bass-Reflex Line Array
Total Power Capacity 1300 W
Amplifier Power Rating LF:
1000 W
HF:
300 W
Amplifier Class Class-D
Drivers
HF Driver 1 x 1.75" / 44 mm Compression Driver
LF Driver 1x 8" / 203.2 mm Woofer
Performance
Frequency Range 57 Hz to 20 kHz -10 dB
Frequency Response 62 Hz to 20 kHz -6 dB
Maximum SPL 134 dB (Peak)
Coverage Angle 100° H x 15° V
Connectivity
Audio I/O 1x XLR 3-Pin Female Line Input
1x XLR 3-Pin Male Line Thru
Network I/O 2x RJ45 (Control/Dante/Network) In/Out
USB I/O No
Wireless Connectivity No
Mobile App Compatible Yes: iPadOS Only
App Name: QSC SysNav
Signal Processing
Filters High-Pass
Dynamic Processing Limiter
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1x powerCON Input
1x powerCON Output
Current Consumption 100 VAC:
0.8 A (1/8 Power)
120 VAC:
0.75 A (1/8 Power)
230 VAC:
0.5 A (1/8 Power)
Physical
Mounting M10 Fly Point (Rear)
1 x Pole Socket (Dual Angle, Bottom)
Cooling Convection
Construction Material ABS, Metal Grille
Dimensions 20.4 x 14.7 x 10.7" / 51.8 x 37.3 x 27.2 cm
Weight 30.1 lb / 13.7 kg

In The Box

  • QSC LA 108 1300W Active 8" Line Array Loudspeaker (Black)
  • powerCON True 1 Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: QSC LA 108 1300W Active 8" Line Array Loudspeaker (Black)
  • Manufacturer: QSC
  • Model: LA108
  • SKU: LA108
  • RM Product #: 119350
  • Warranty: All QSC products have a 6-year warranty, with the exception of TouchMix mixers, which have a 3-year warranty.
