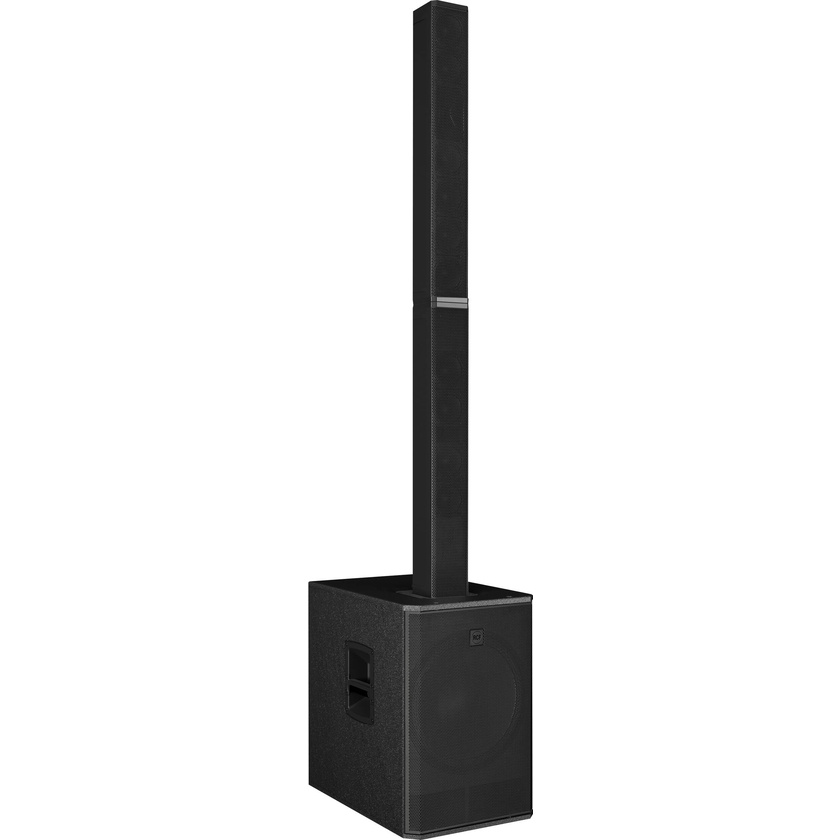

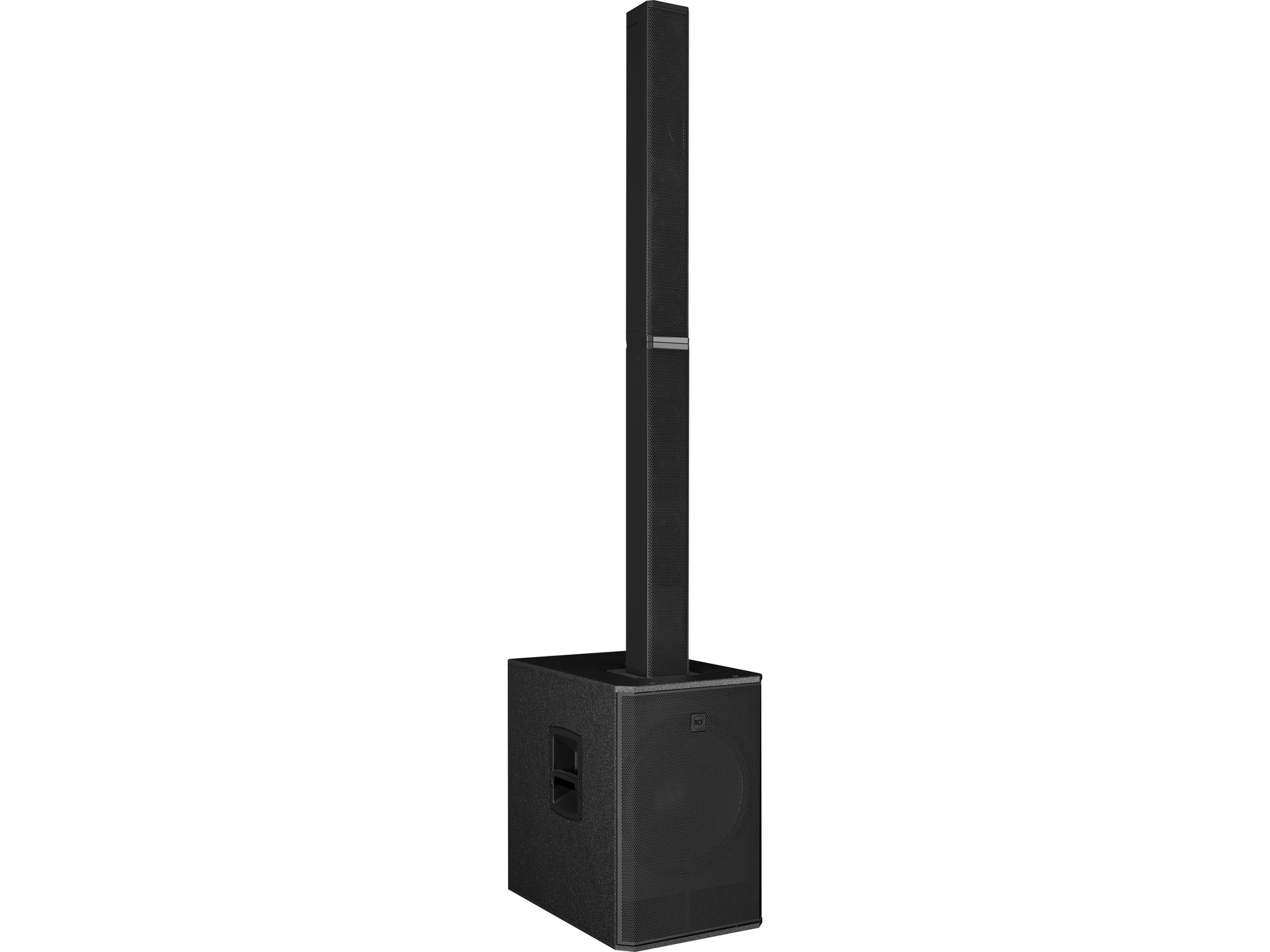

RCF EVOX V15 Active 15" 3-Way 3500W Portable Line Array PA System (Black)

Product #126425 | SKU EVOX V15 | RCF
| Write a review
Pre-Order ETA to be confirmed what does this mean?
RCF EVOX V15 Active 15" 3-Way 3500W Portable Line Array PA System (Black)
PRE-ORDER
Our Price $6,949
A deposit of $695.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +
Email me when stock arrives
Request price match
Talk to our experts
Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $210 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Live Stage, Theatre, and DJ Setups
  • 15" Woofer
  • 10 x 4" Midrange Drivers
  • 1" Neodymium Compression Driver
  • 3500W Class-D Amplifier
  • Combo XLR-1/4" Input, XLR Output

Description

Designed to deliver powerful sound projection for musicians, presenters, and DJs in clubs, parties, and live stage applications, the RCF EVOX V15 Active 15" 3-Way 3500W Portable Line Array PA System (Black) is an active, 15" 3-way 3500W portable line array PA system.

Powerful Class-D Amplification

Class-D amplification delivers 2000W through a 15" high-excursion woofer and 1500W to the 10 4" full-range drivers and 1" neodymium compression driver.

High Output and Wide Coverage

A total of 3500W results in an SPL of 133 dB with a frequency response of 20 kHz down to 35 Hz. The system design produces a 120° horizontal by 40° vertical coverage pattern.

Connectivity and Presets

Connectivity includes a combo XLR-6.35 mm input and an XLR output. The onboard presets provide settings for application-specific deployment, including Linear, Live, Club, and Voice.

Included Accessories

A carrying bag and standard IEC power cord are included.

Specifications
Portable PA System
Speaker Configuration 1x 2-Way Speaker Column with Subwoofer
Number of Input Channels 1 (1 x Mono)
Amplifier Power Rating Total:
3500 W Peak
HF:
1500 W Peak
LF:
2000 W Peak
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 1x 1" / 2.5 cm Compression Driver
HF Voice Coil 1.75" / 4.45 cm
MF Driver 10x 4" / 10.2 cm
MF Voice Coil 1" / 2.5 cm
Subwoofer Driver 1x 15" / 38.1 cm
Subwoofer Voice Coil 3" / 7.6 cm
Magnet HF Driver/MF Driver:
Neodymium
Signal Processing
Crossover 160 / 1600 Hz
Semi-Parametric AEQ No
Dynamic Processing Soft Limiter
Performance
Frequency Response 35 Hz to 20 kHz
Maximum SPL 133 dB
Coverage Angle 120° H x 40° V
Protections RMS, Thermal
Connectivity
Audio I/O 1x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x XLR 3-Pin Link Output
USB I/O No
Mobile App Compatible No
Network I/O No
Wireless
Wireless No
Power
AC Input Power 100 to 120 VAC, 60 Hz
AC Power I/O 1x powerCON Input
1x powerCON Output
Physical
Environmental Resistance No
Dimensions 87.52 x 23.82 x 16.14" / 222.3 x 60.5 x 41 cm
Weight 104.72 lb / 47.5 kg

In The Box

  • RCF EVOX V15 Active 15" 3-Way 3500W Portable Line Array PA System (Black)
  • Subwoofer
  • Upper Satellite Speaker
  • Lower Satellite Speaker
  • Power Cable
  • Padded Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: RCF EVOX V15 Active 15" 3-Way 3500W Portable Line Array PA System (Black)
  • Manufacturer: RCF
  • Model: EVOX V15
  • SKU: EVOX V15
  • RM Product #: 126425
