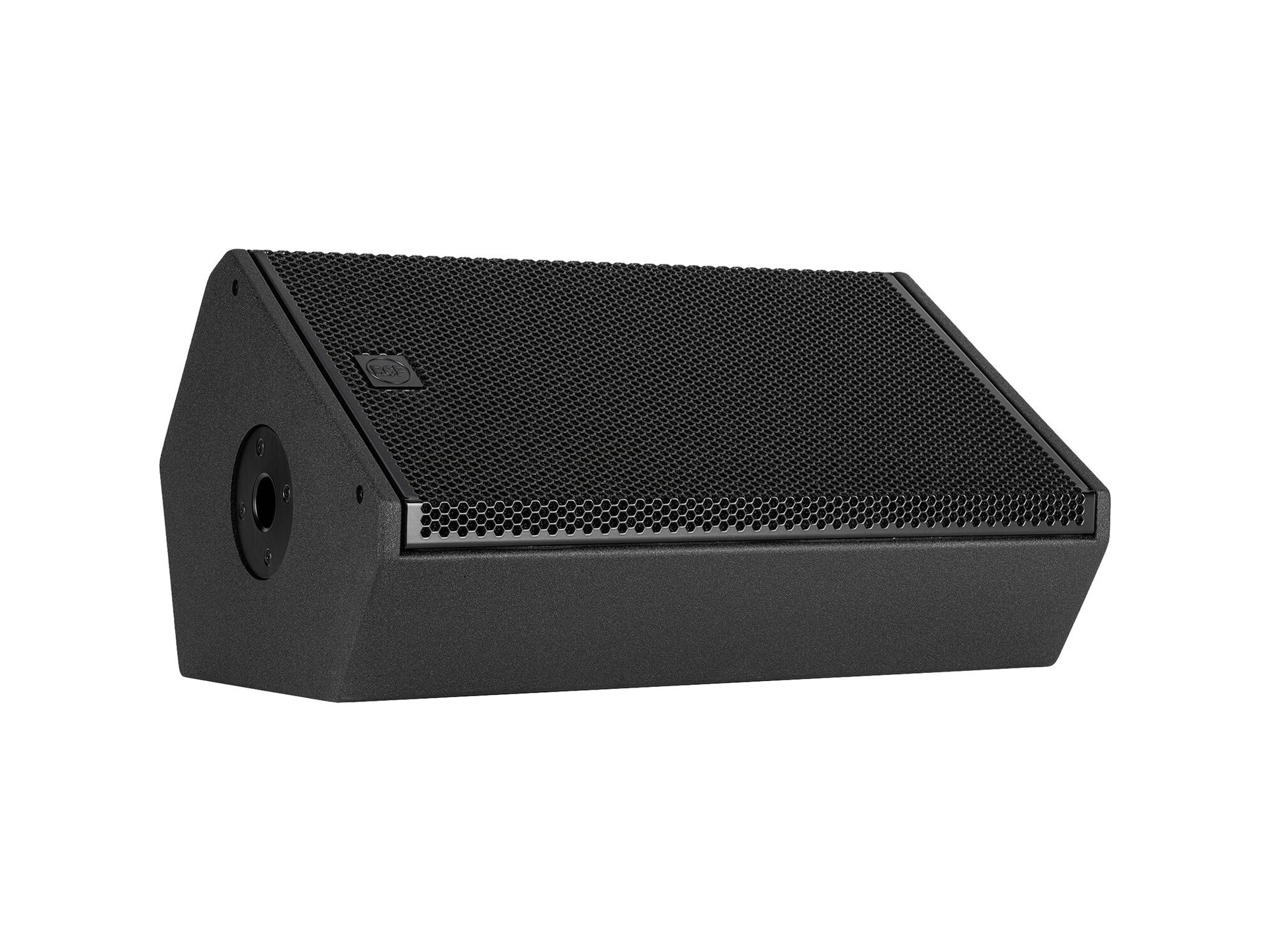

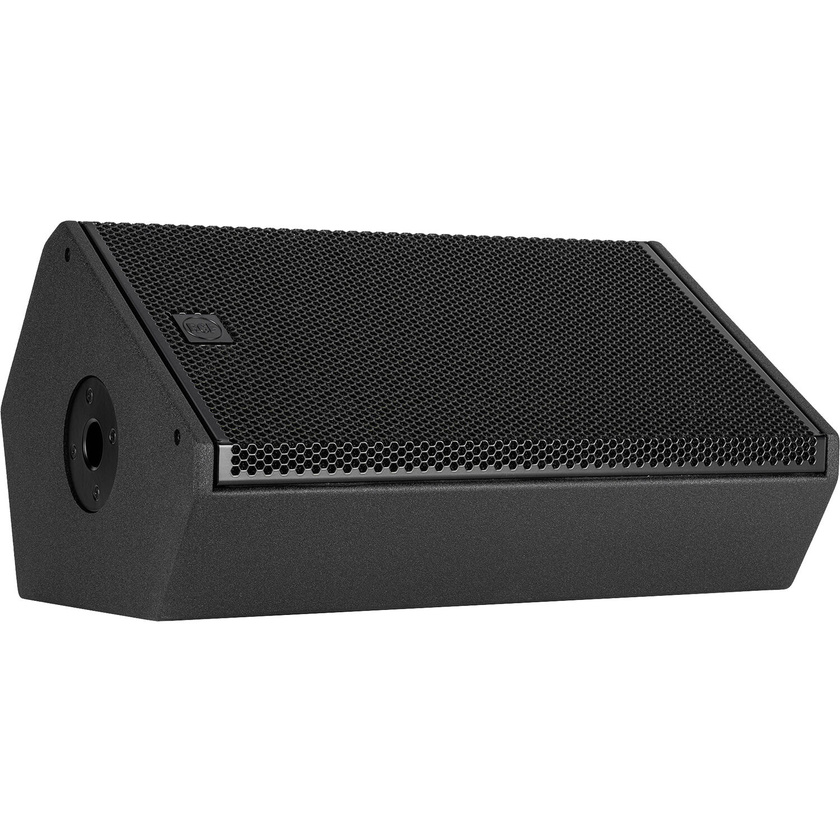

RCF NX 912-SMA Two-Way 12" 2100W Powered Stage Monitor Speaker with Integrated DSP

Product #123652 | SKU NX912-SMA | RCF
Contact us for an ETA what does this mean?
Our Price $2,859
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • Can Be Used as Main PA Speaker
  • Advanced DSP with 3 Presets
  • FiRPHASE Filters for Coherent Sound
  • Bass Motion Control Low-Freq Management
  • Combination XLR-1/4" Input + XLR Output
  • 50 Hz to 20 kHz Frequency Response

Description

Engineered for outstanding audio quality and exceptional versatility in demanding audio environments, the RCF NX 912-SMA Two-Way 12" 2100W Powered Stage Monitor Speaker with Integrated DSP stands out as a powerful, user-friendly, 2100W powered stage monitor speaker tailored to meet the needs of modern musicians, singer/songwriters, mobile DJs, and a broad range of sound professionals. Its thoughtful design supports both horizontal and vertical positioning, making it suitable either as a stage monitor or as a main PA when mounted on a speaker pole for smaller events.

High-Efficiency Amplification

Equipped with a robust 2100W Class-D bi-amplifier, the NX 912-SMA allocates 1400W to its 12" woofer and 700W to the 1" titanium/neodymium compression driver. Together, these components reproduce a full audio spectrum from 50 Hz to 20 kHz, providing ample sound pressure levels so performers can clearly hear their mix on stage.

Advanced DSP Processing

The NX 912-SMA harnesses RCF’s exclusive FiRPHASE and Bass Motion Control DSP technology. This processing ensures unparalleled sonic clarity along with deep, powerful bass reproduction, elevating the overall audio experience for both performers and audiences.

Rugged, Stage-Ready Design

Constructed from durable, tour-grade all-wood materials, the enclosure is both lightweight and sturdy, ensuring easy transport and reliable installation. The design allows quick setup on a speaker pole or placement as a floor monitor, adapting to a variety of performance scenarios.

Included Accessories

For added convenience, the NX 912-SMA comes complete with a power cord, ensuring you’re ready to go right out of the box.

Specifications

Configuration 2-Way
Enclosure Type Bass-Reflex
Total Output Power 1050 W RMS / 2100 W Peak
Amplifier Power Rating Low Frequency (LF)
1400 W Peak
Mid Frequency (MF)
700 W Peak
Amplifier Class Class-D
Drivers
LF Driver 1x 12" / 30.5 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium
HF Driver 1x 1" / 25.4 mm Polyimide Compression Driver
Voice Coil: 1.75" / 44.45 mm
Magnet: Neodymium
Performance
Frequency Range/Response 50 Hz to 20 kHz
Maximum SPL 130 dB (Peak)
Coverage Angle 100° H x 70° V
Protections RMS, Signal Limiter, Thermal
Signal Processing
Crossover Frequency 1600 Hz
AEQ & Filters No
Dynamic Processing Soft Limiter
Alignment Delay No
Digital Signal Processing FIR Filter, Venue Settings
Connectivity
Audio I/O 1x Combo XLR-1/4" TRS Input
1x XLR 3-Pin Thru/Output
Network I/O No
USB I/O No
Wireless No
Mobile App Compatible No
Power
AC Input Power 100 to 120 VAC, 60 Hz
AC ower I/O 1x powerCON Input
Power Consumption 300 W
Physical
Colour Black
Mounting 1 x Pole Socket - Unspecified Size (Bottom)
Handles 1x Side
1x Top
Construction Material Plywood, Stainless Steel Grille
Environmental Resistance No
Dimensions 24.4 x 15.5 x 12.6" / 62 x 39.4 x 32 cm
Weight 44.1 lb / 20 kg

In The Box

  • RCF NX 912-SMA Two-Way 12" 2100W Powered Stage Monitor Speaker with Integrated DSP
  • Power Cord
