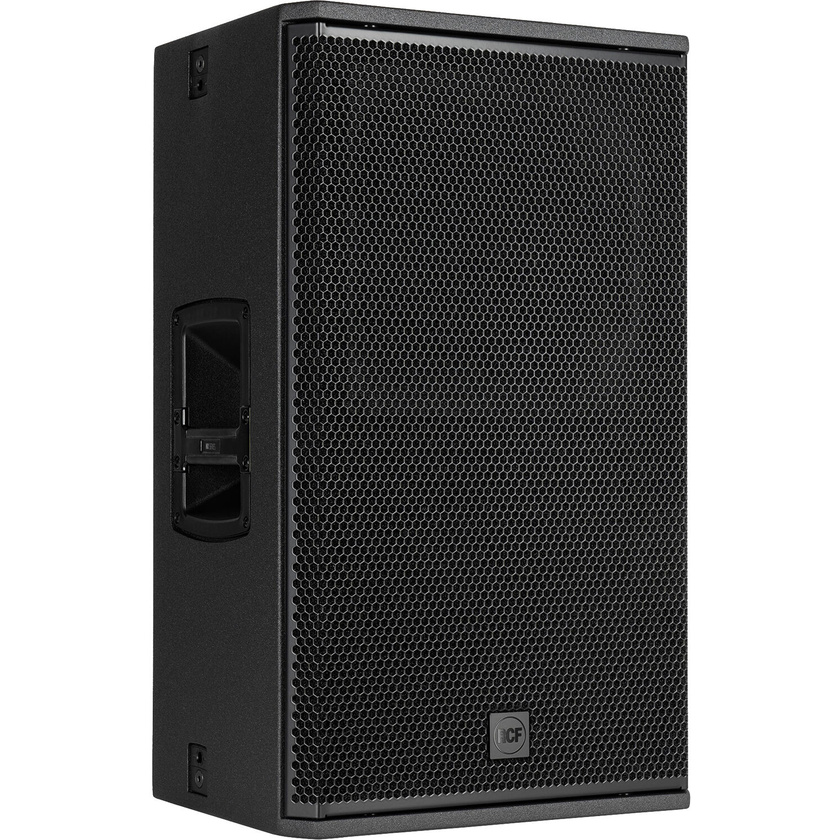

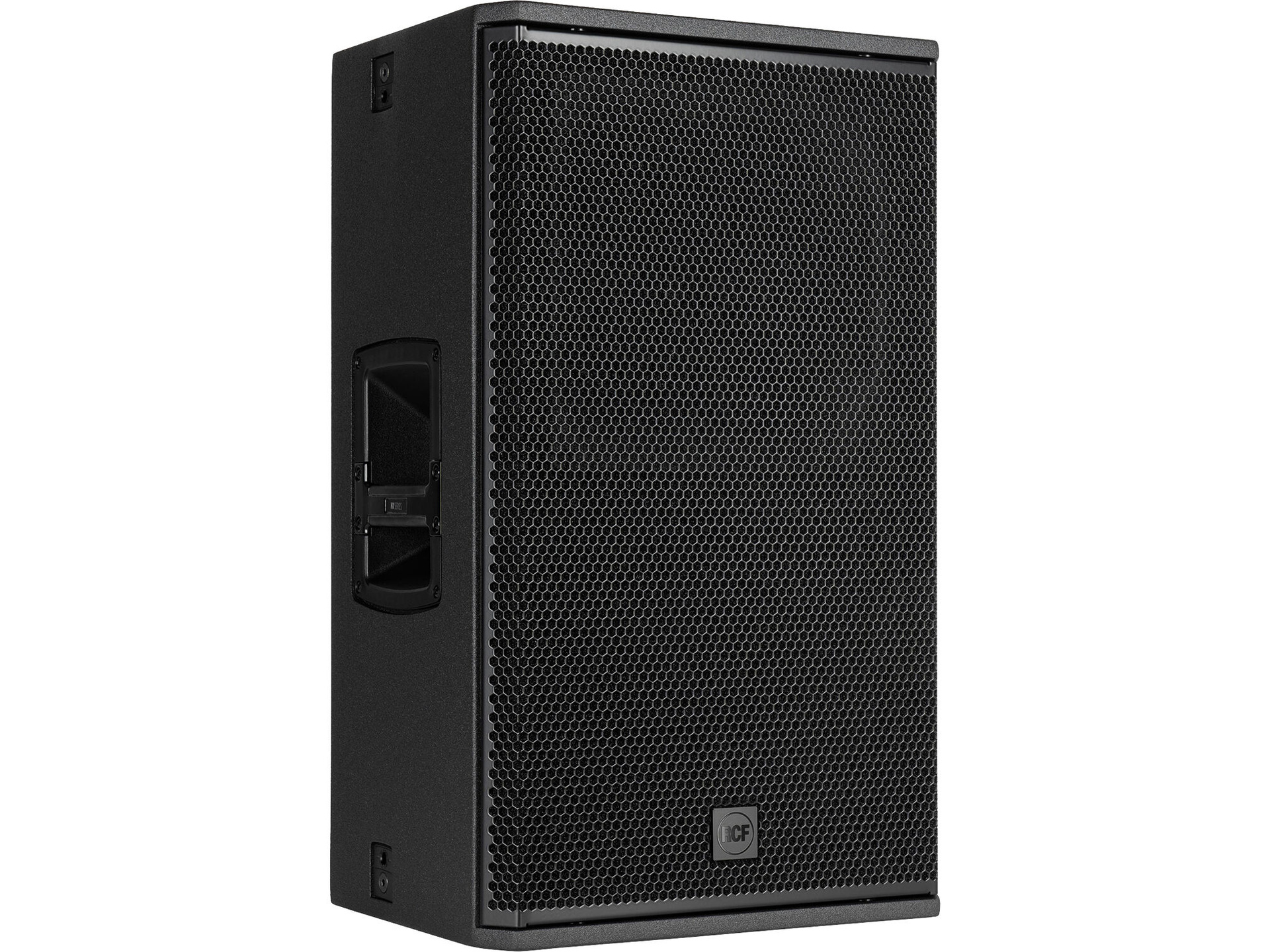

RCF NX 945-A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP (Black)

Product #128095 | SKU NX945A | RCF
Contact us for an ETA what does this mean?
RCF NX 945-A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP (Black)
$4,299
Contact us for an ETA what does this mean?
- +
Email me when stock arrives
Have a question about this product? Send us a message


Features

  • 135 dB Max SPL Output
  • 45 Hz to 20 kHz Frequency Response
  • 4" Titanium/Neodymium Compression Driver
  • 15" Neodymium Woofer
  • FiRPHASE Filters for Coherent Sound
  • Bass Motion Control Low-Freq Management

Description

Designed to deliver stellar audio performance and versatility for intensive audio applications, the RCF NX 945-A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP (Black) is a highly flexible, easy-to-use, 2100W powered PA speaker for today’s working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor.

Powerful Full-Range Performance

The highly efficient 2100W Class-D bi-amplifier delivers 1400W peak to the 15" woofer and 700W peak to the 1.4" neodymium compression driver, which together provide full-range audio (45 Hz to 20 kHz) with a sound-pressure level powerful enough to ensure the entire audience can hear your performance.

Advanced DSP Processing

The NX 945-A utilises RCF’s proprietary FiRPHASE and Bass Motion Control DSP processing to deliver absolute clarity and deep, powerful bass response.

Rugged and Flexible Cabinet Design

The rugged, tour-ready all-wood cabinet is easy to carry and installs securely on pole-, flown-, wall-, or truss-mounts using dedicated rigging points.

Specifications

Speaker Type Active Loudspeaker/Stage Monitor
Configuration 2-Way
Enclosure Type Bass-Reflex
Total Output Power 2100 W Peak
Amplifier Power Rating Low Frequency (LF)
1400 W Peak
Mid Frequency (MF)
700 W Peak
Amplifier Class Class-D
Drivers
LF Driver 1x 15" / 38 cm Woofer
Voice Coil: 3.5" / 88.9 mm
Magnet: Neodymium
HF Driver 1x 1.4" / 35.6 mm Polyimide Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium
Performance
Frequency Range/Response 45 Hz to 20 kHz
Maximum SPL 135 dB (Peak)
Coverage Angle 100° H x 70° V
Protections RMS, Signal Limiter, Thermal
Signal Processing
Crossover Frequency 650 Hz
AEQ & Filters No
Dynamic Processing Soft Limiter
Alignment Delay No
Digital Signal Processing FIR Filter, Venue Settings
Connectivity
Audio I/O 1x Combo XLR-1/4" TRS Input
1x XLR 3-Pin Thru/Output
Network I/O No
USB I/O No
Wireless No
Mobile App Compatible No
Power
AC Input Power 100 to 120 VAC, 60 Hz
AC Power I/O 1x powerCON Input
Power Consumption 300 W
Physical
Colour Black
Mounting Stand Mount
1 x Pole Socket - Unspecified Size (Bottom)
Suspension Points
2 x M10 Fly Point (Top)
1 x M10 Fly Point (Each Side)
1 x M10 Fly Point (Rear)
Handles 1x Each Side
Construction Material Plywood, Stainless Steel Grille
Environmental Resistance No
Dimensions 27.8 x 17.7 x 16.5" / 70.6 x 45 x 41.9 cm
Weight 60.2 lb / 27.3 kg

In The Box

  • RCF NX 945-A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP (Black)
  • Power Cord
