Radial VOCO-LOCO - Effects Switcher for Voice or Instrument

Product #99333 | SKU RA-VOCO-LOCO | Radial
Usually ships in 2 - 3 weeks what does this mean?
Our Price $669
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Overview

Available to Order From Rubber Monkey Today

Description

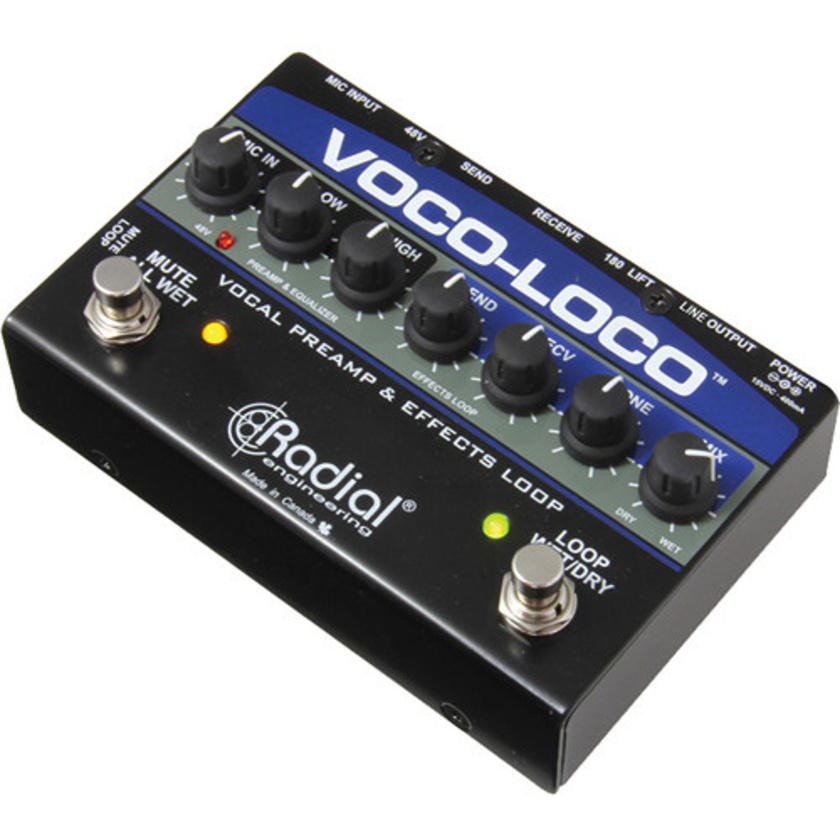

The Radial VOCO-LOCO is a foot-controlled microphone preamp and effects loop switcher that enables a vocalist or acoustic instrumentalist to incorporate guitar effects pedals into their signal path.

  • Add guitar effects pedals to vocal or instrument mics
  • Create exciting and unique effects as you perform
  • Turn on multiple effects with one foot-switch
  • Works with dynamic and condenser microphones

Connect any mic to your guitar pedals

The Voco-Loco combines a microphone preamp with a guitar pedal effects loop, allowing a lead vocalist, sax or trumpet player to add guitar pedals to their audio signal path just like an electric guitarist adds effects for soloing. Simply plug your mic into the Voco-Loco via the XLR input, connect your effects pedals using standard ¼" guitar cables, and then send the output from the Voco-Loco to the input on your mixer. Now with the touch of a foot-switch you can add your favourite delay, reverb, distortion or wah-wah to any mic'd up instrument or vocal - the options are only limited by your imagination.

Voco-Loco Applications

Plug your microphone into the Voco-Loco and add exciting effects using guitar pedals for echo, reverb or distortion and control the effects the way you want.

Voco-Loco with brass

Add echo, chorus or wah to you sax or trumpet to make your solos stand out from the crowd and deliver a unique performance to the audience that they will never forget!

Voco-Loco with harmonica

The Voco-Loco lets you incorporate a chorus, overdrive and reverb to your harp solos to deliver amazing tones without having to bring an amp to the gig. The blues never sounded so good!

Specifications

Circuit Type Integrated Op-Amp with Class-A FET input
Frequency Response 20 Hz to 20 kHz
Total Harmonic Distortion <0.005%
Dynamic Range 100 dB
Input & Output 1 x XLR Input
1 x XLR Output
1 x 1/4" Send
1 x 1/4" Receive
Input Impedance 10 kΩ
Maximum Input 10 dB
Gain 52 dB
Clipping Level Output: 15 dBu
Output Impedance 300 Ω
Equivalent Input Noise -120 dBu
Noise Floor -85 dBu
Distortion <0.005%
Phase Shift 8° @ 50 Hz
Common Mode Rejection -73 dB @ 55 Hz
Input Impedance FX Loop: 100 K
Output Impedance FX Loop: 3,000 Ω
Output Pin 1 ground, Pin 2 (+), Pin 3 (-)
Power 1x DC Input
15 VDC / 400 mA
Configuration XLR:
Follows AES spec: pin-1 ground, pin-2 (+), pin-3 (-)

In The Box

  • Radial Engineering Voco-Loco Effects Switcher for Voice or Instrument

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Radial VOCO-LOCO - Effects Switcher for Voice or Instrument
  • Manufacturer: Radial
  • Model: RA-VOCO-LOCO
  • SKU: RA-VOCO-LOCO
  • RM Product #: 99333
  • Warranty: 5 year manufacturer warranty
