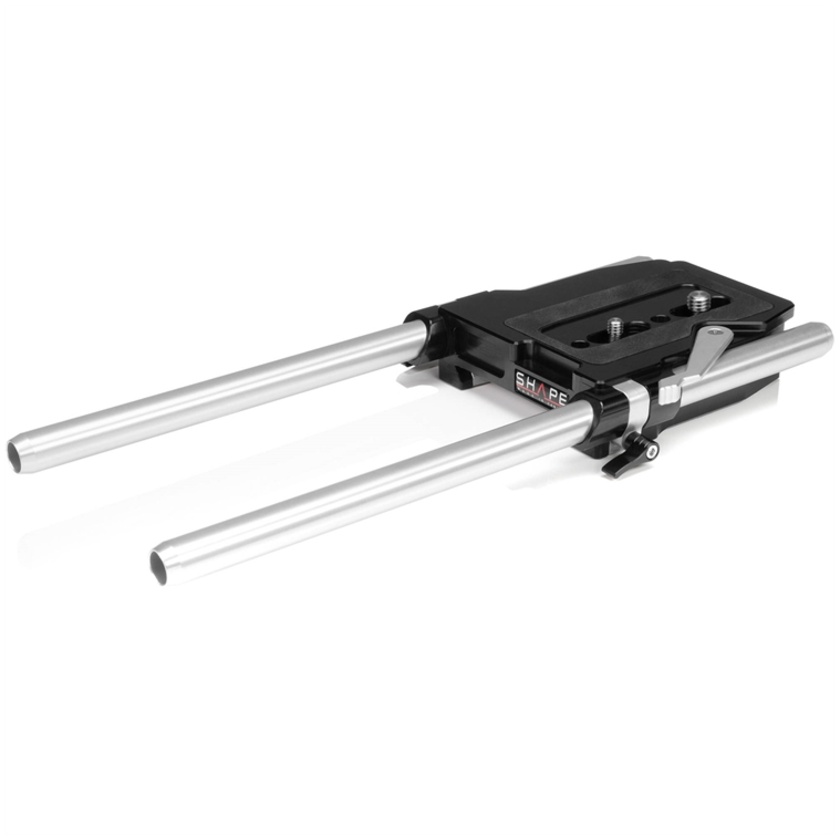

This lightweight and strong aluminum body SHAPE ARRI Standard Studio Bridgeplate with 15mm Rods slides onto an ARRI Standard Dovetail Plate; it uses 15mm rods (30.5cm) and 15mm Studio Offset Spacing (rods spaced 100mm center to center).
Additionally, the Bridge Plate is equipped with a convenient Custom Flat Screwdriver that is integrated and secured by a magnet, used to quickly tighten the 3/8″-16 UNC captive screws (included) that hold the base components together. There is also a locking lever to lock the Bridge Plate firmly in place and a slotted design to accommodate screw spacings.
Features
- Lightweight & Strong Aluminum Body 15mm Studio Bridge Plate
- 15mm Studio Offset Spacing (Rods spaced 100mm Center to Center)
- Convenient Tool Box & Custom Flat Screwdriver secured by a Magnet
- 3/8″-16 UNC captive screws (included) that hold the base components together
- Slotted Design to accommodate Screw Spacings
- Position of the Block is locked in place with the Locking Dovetail Lever
