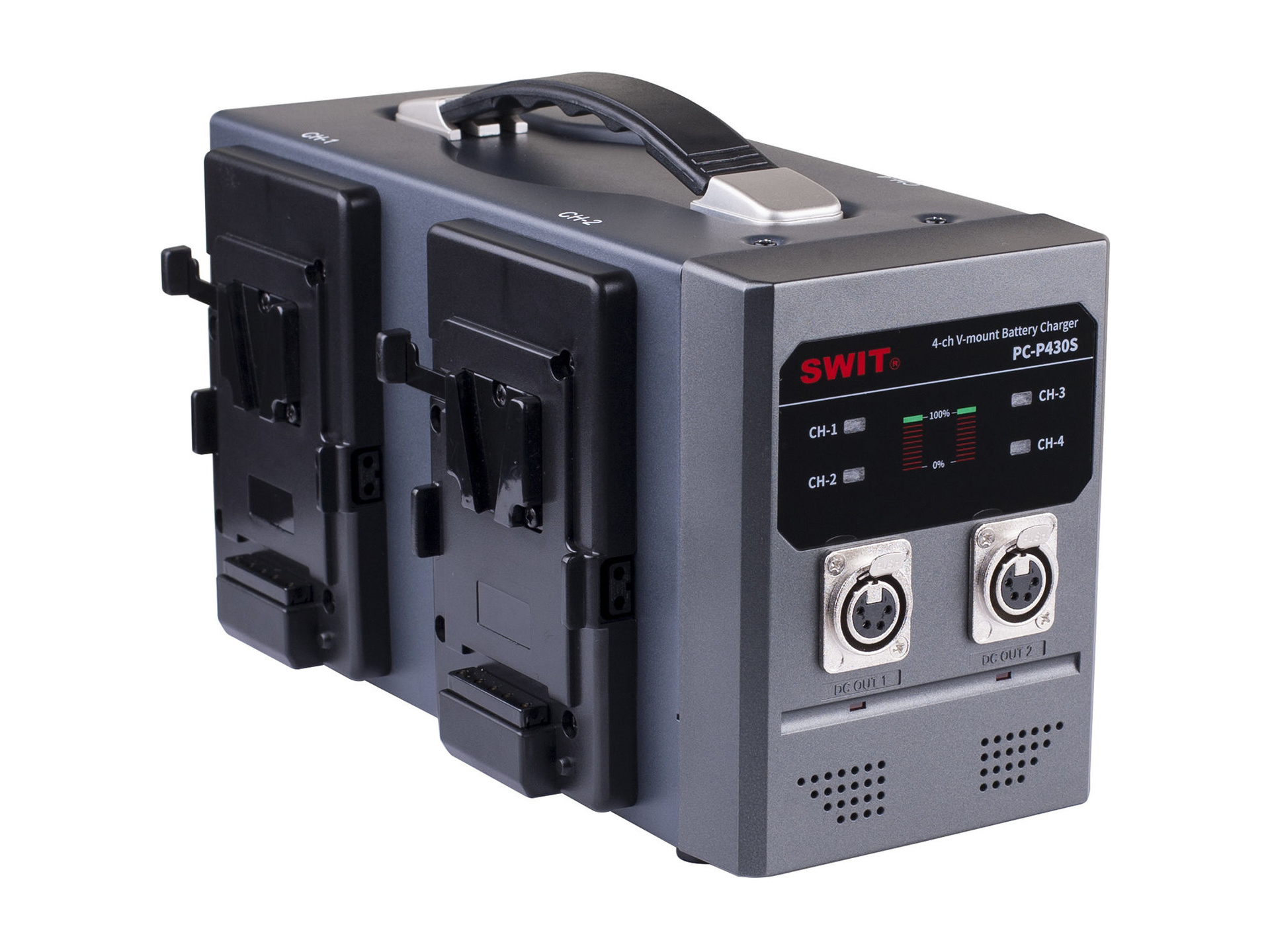

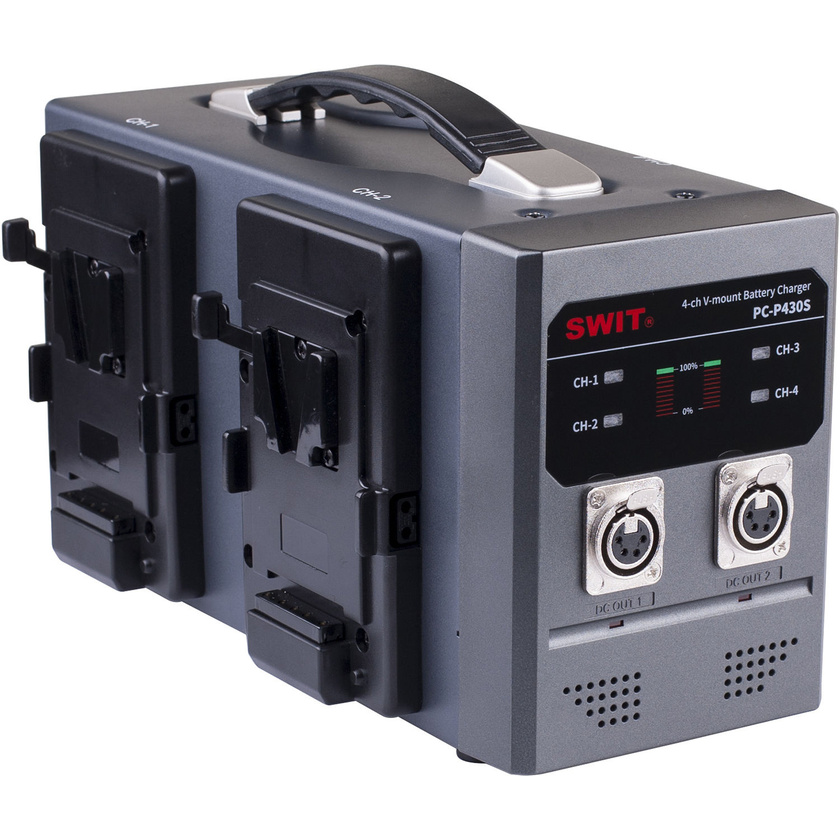

SWIT 4-Bay Simultaneous Li-Ion Battery Charger (V-Mount)

Product #114000 | SKU PC-P430S | SWIT
Usually ships in 4 - 6 weeks what does this mean?
Our Price $819
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $14 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • 4-Bay V-Mount Battery Charger
  • Simultaneous Charge at 16.8 VDC, 3A
  • 100 to 240 VAC, 50/60 Hz Power Input
  • 2 x 4-Pin XLR 6A, 90W Outputs
  • Colour LED Power Level Indicator
  • Overcurrent and Overcharge Protection

Description

Use the SWIT 4-Bay Simultaneous Li-Ion Battery Charger to conveniently charge up to four V-mount batteries at once. Each bay is capable of recharging a lithium-ion battery at a rate of 3A. Additionally, a colour LED power indicator is provided for each bay to indicate the charging status.

To enhance its functionality, this battery charger is equipped with two 4-pin XLR outputs that can provide a power output of 6A, equivalent to 90W. These outputs can even act as an AC to DC adapter when the batteries are not being charged. With the inclusion of safety features such as overcurrent and overcharge protection, the charger ensures the batteries are only supplied with the necessary current, thereby preserving their health.

The charger boasts a compact vertical design, making it easy to transport using the convenient top handle. It is suitable for use worldwide thanks to its internal power supply that can handle voltages ranging from 100 to 240 VAC. Additionally, an AC power cable is included with the charger for added convenience.

Specifications

Key Specs
Charger Compatibility V-Mount
Charger Power Source AC Power (Cable Included)
Charger Power I/O 1x IEC Female Input
 • 100 to 240 VAC, 50 / 60 Hz
2x XLR 4-Pin Output
 • 15 VDC at 4 A (60 W)
Charger Included Adapter / Cable 1x USA Type-A/B Plug to IEC Male Cable
Battery Charger
Charger Compatibility V-Mount
Number of Battery Bays 4
Multi-Bay Charging Modes Simultaneous
Charger Power Source AC Power (Cable Included)
Charger Power I/O 1x IEC Female Input
 • 100 to 240 VAC, 50 / 60 Hz
2x XLR 4-Pin Output
 • 15 VDC at 4 A (60 W)
Charger Included Adapter / Cable 1x USA Type-A/B Plug to IEC Male Cable
Battery Output Voltage 16.8 VDC at 3 A
Indicator LED
Dimensions 11.22 x 6.81 x 5.67" / 28.5 x 17.3 x 14.4 cm
Weight 7.21 lb / 3.27 kg
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%

In The Box

  • SWIT 4-Bay Simultaneous Li-Ion Battery Charger (V-Mount)
  • Power Cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SWIT 4-Bay Simultaneous Li-Ion Battery Charger (V-Mount)
  • Manufacturer: SWIT
  • Model: PC-P430S
  • SKU: PC-P430S
  • RM Product #: 114000
  • Warranty: 1 year manufacturer warranty. Batteries over 100Wh - 2 year manufacturer warranty
