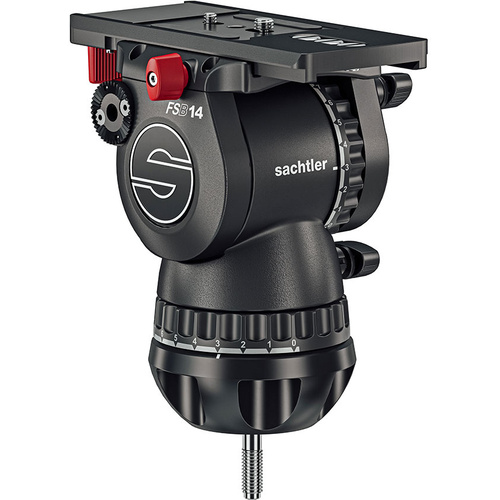

View Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)
Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)

Sachtler FSB 14 Mark II Fluid Head with Touch & Go Plate (100mm)

Not currently for sale
View Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism
Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism

Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism

Not currently for sale

Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)

Product #93023 | SKU ST-S2073-0001 | Sachtler
This product is no longer available what does this mean?
Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 12 Kg Payload Range
  • 100mm Half Ball
  • +90 to -70º Tilt Range
  • 15 Stepped Counterbalance Plus 0
  • Pan and Tilt Drag 5 Grades Plus 0
  • Sideload Plate S

Description

Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)

Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.

Key Features:

Smooth operation.

Create precision pans with smooth starts and soft stops.

Finely balanced.

Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.

Always on the level.

Innovative illuminated PrismBubble visible from any height – day or night.

Built for endurance.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance.

Specifications

Sachtler FSB MKII Series Video Head
Camera Plate
Camera Plate Features Quick Release, Sliding Balance Plate
Camera Plate Type Sideload Plate S
Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin
Balance Plate Sliding Range 4.7" / 120 mm
Plate Dimensions 5.5 x 2" / 14 x 5 cm
Tripod Platform
Base Mount 100 mm Half Ball
Flat Base
Pan & Tilt
Drag Control Tilt: 7-Step Plus 0
Drag Type Fluid
Vertical Tilt +90° to -70°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 0 to 26.5 lb / 0 to 12 kg
Counter Balance Incremental 15-Step Plus 0
Included Pan Handle Length 16.77" / 42.6 cm
Bubble Level 1 x Illuminated
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 6 lb / 2.7 kg

In The Box

  • Sachtler FSB 10 Mark II Fluid Head
  • Sachtler Sideload Plate S/Ace Tripod QR Plate
  • Sachtler Pan Handle DV 75
  • Sachtler Tie-Down Knob for 100mm Half Ball Clamping Bowl
  • CR2032 Battery

Reviews

0.0 (no ratings yet)

Details

  • Product: Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)
  • Manufacturer: Sachtler
  • Model: ST-S2073-0001
  • SKU: ST-S2073-0001
  • RM Product #: 93023
  • Head Type: Fluid
  • Load Capacity: 12.0 kg
