Sachtler System FSB 4 75/2 CF with Ground Spreader has been discontinued, here are some related products you might like:

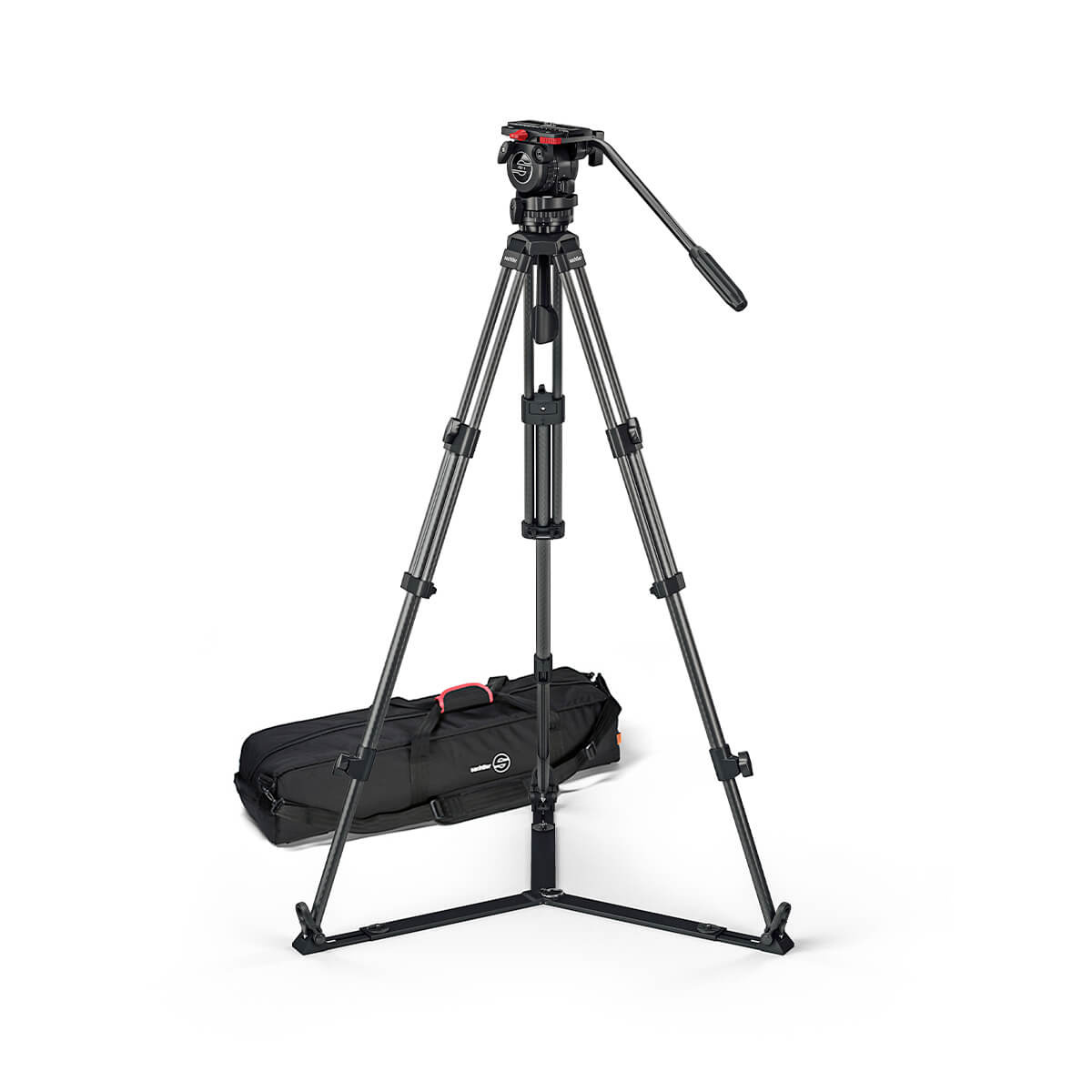

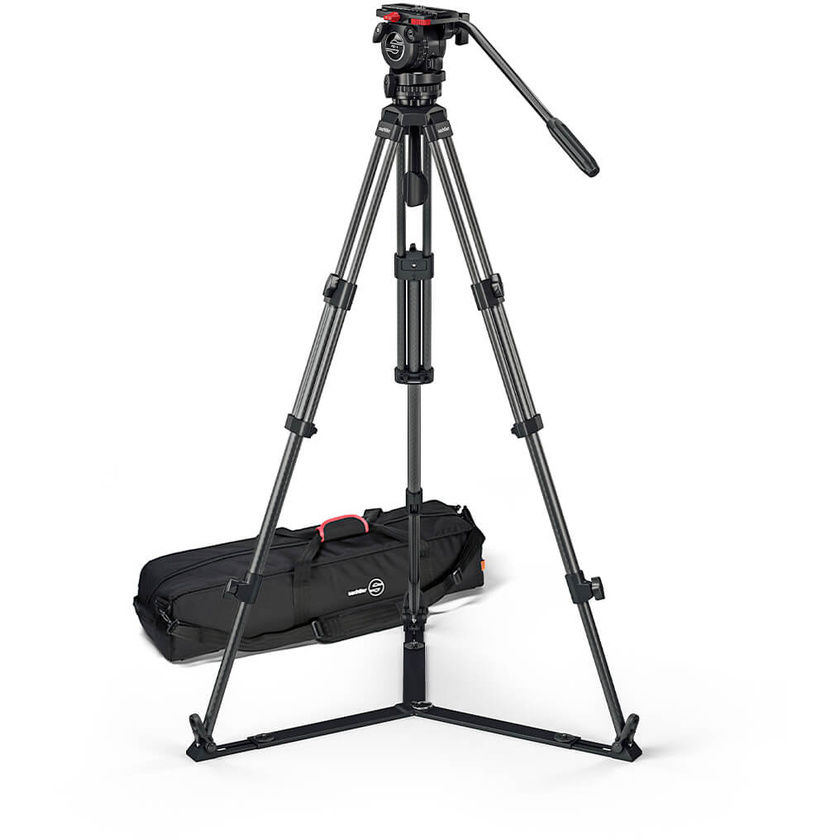

Sachtler System FSB 4 75/2 CF with Ground Spreader

Product #93042 | SKU ST-0371C | Sachtler
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 4 Kg Capacity Fluid Drag Head
  • 75mm Ball with Integrated Flat Base
  • 12cm Sliding Plate Range
  • 5-Step + 0 Counterbalance Settings
  • 3-Step + 0 Pan/Tilt Drag
  • +90/-70° Tilt Range

Description

Sachtler System FSB 4 75/2 CF with Ground Spreader

When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 fluid head doesn’t mean you have to compromise on performance. It gives you rapid weight compensation for payloads of up to 4 kg, while the Sideload mechanism means mounting handheld cameras and DSLRs can be done from the side. Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, Sachtler drag always gives smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results. Weighing in at just 4.8 kg, this Sachtler system with a carbon fibre tripod is perfect for ultra-light camcorders and DSLR cameras.

Key Features:

Smooth operation

Create precision pans with smooth starts and soft stops.

Finely balanced

Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.

Built for endurance.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance.

Specifications

Sachtler FSB 4 Fluid Head
Camera Plate
Camera Plate Features Quick Release, Sliding Balance Plate
Camera Plate Type Sideload Plate S
Tripod Platform
Base Mount 75 mm Half Ball
Pan & Tilt
Drag Control Tilt: 3-Step
Vertical Tilt +90° to -70°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 8.8 lb / 4 kg
Counter Balance Incremental 3-Step
Bubble Level 1
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 5.3 lb / 2.4 kg
Sachtler 75/2 Carbon Fibre Tripod for 75 mm Fluid Heads
Payload 0 to 19.95 Kg
Bowl size 75 mm
Weight 1.796 Kg
Material Carbon Fibre
Transport length 69.34cm
Tripod stages 2
Height With Mid-Level Spreader 81 cm to 171cm
Sachtler Spreader SP 75 Ground Tripod Spreader
Payload 88.2 lb / 40 kg
Construction Plastic
Rubber
Type On-Ground
Adjustable Yes
Minimum Length 13.0" / 33.0 cm
Maximum Length 22.8" / 57.9 cm
Weight 1.3 lb / 589.7 g
Sachtler DV 75 S Padded Bag
Carrying/Transport Options Connecting Handles, Shoulder Strap
Type of Closure Zipper
Exterior Material Cordura
Padded Yes
Exterior Dimensions H: 8.3 x W: 7.1 x L: 36.2" / H: 21.1 x W: 18.0 x L: 91.9 cm
Interior Dimensions L: 33.5" / L: 85.0 cm
Weight 2.2 lb / 1 kg

In The Box

  • Sachtler FSB 4 Fluid Head
  • Sachtler Pan Handle DV 75
  • Sachtler Sideload Plate S/Ace Tripod QR Plate
  • Sachtler Spreader SP 75 Ground Tripod Spreader
  • Sachtler DV 75 S Padded Bag
  • Shoulder Strap

Reviews

0.0 (no ratings yet)

Details

  • Product: Sachtler System FSB 4 75/2 CF with Ground Spreader
  • Manufacturer: Sachtler
  • Model: ST-0371C
  • SKU: ST-0371C
  • RM Product #: 93042
  • Maximum Height: 172.0 cm
  • Minimum Height: 58.0 cm
  • Closed Length: 83 cm
  • Load Capacity: 4.0 kg
  • Weight: 4.80 kg
  • Material: Carbon Fibre
  • Base Type: 75mm Bowl
