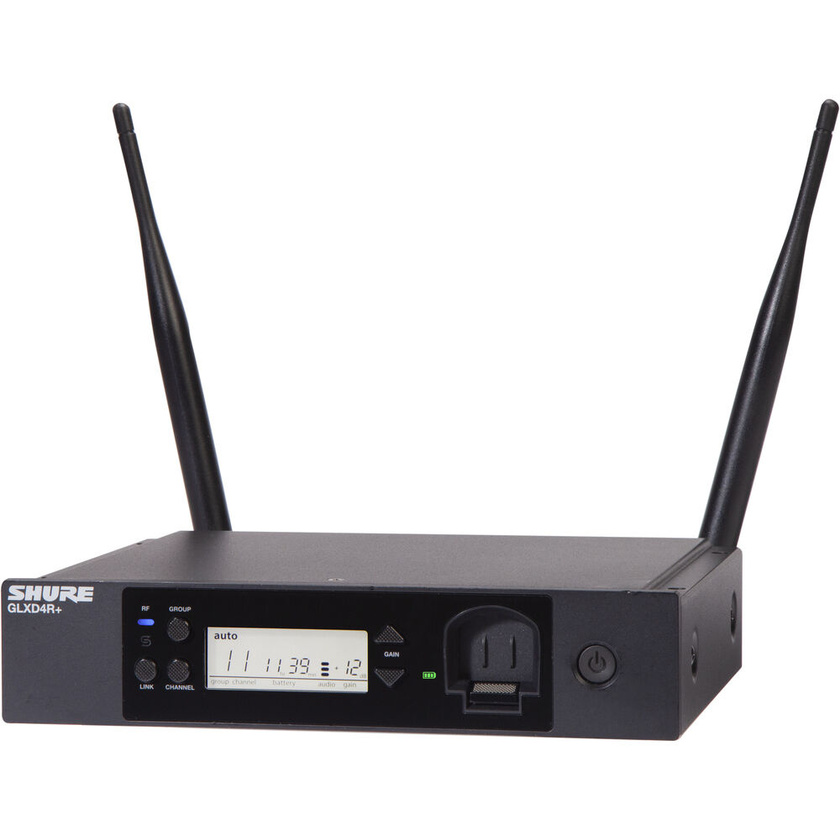

The Shure GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Go wireless without complication.
| Wireless Technology | Digital 2.4 GHz/5.8 GHz |
| Diversity | True Digital Diversity |
| Max Operating Range | 30.5 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Timecode Support | No |
| Mobile App Compatible | No |
| Modulation | Proprietary |
| Receiver | |
| Receiver Type | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TRS Female Balanced Output |
| Gain Range | -20 to +40 dB (1 dB Steps) |
| Audio Output Level | XLR Output: +1 dBV 1/4" Output: +8.5 dBV |
| Phantom Power Protection | On 1/4", XLR Outputs |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x USB-C Female (Firmware Update) |
| Standalone Audio Interface Capable | No |
| Impedance | XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced), 50 Ohms (Unbalanced) |
| Approximate RF Sensitivity | -88 dBm |
| RF Output Power | 10 mW (EIRP, Max) |
| Spurious | Rejection: >35 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 14.5 to 17 VDC at 600 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status) |
| Housing | ABS |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 197 x 163 x 52 mm |
| Weight | 866 g |
