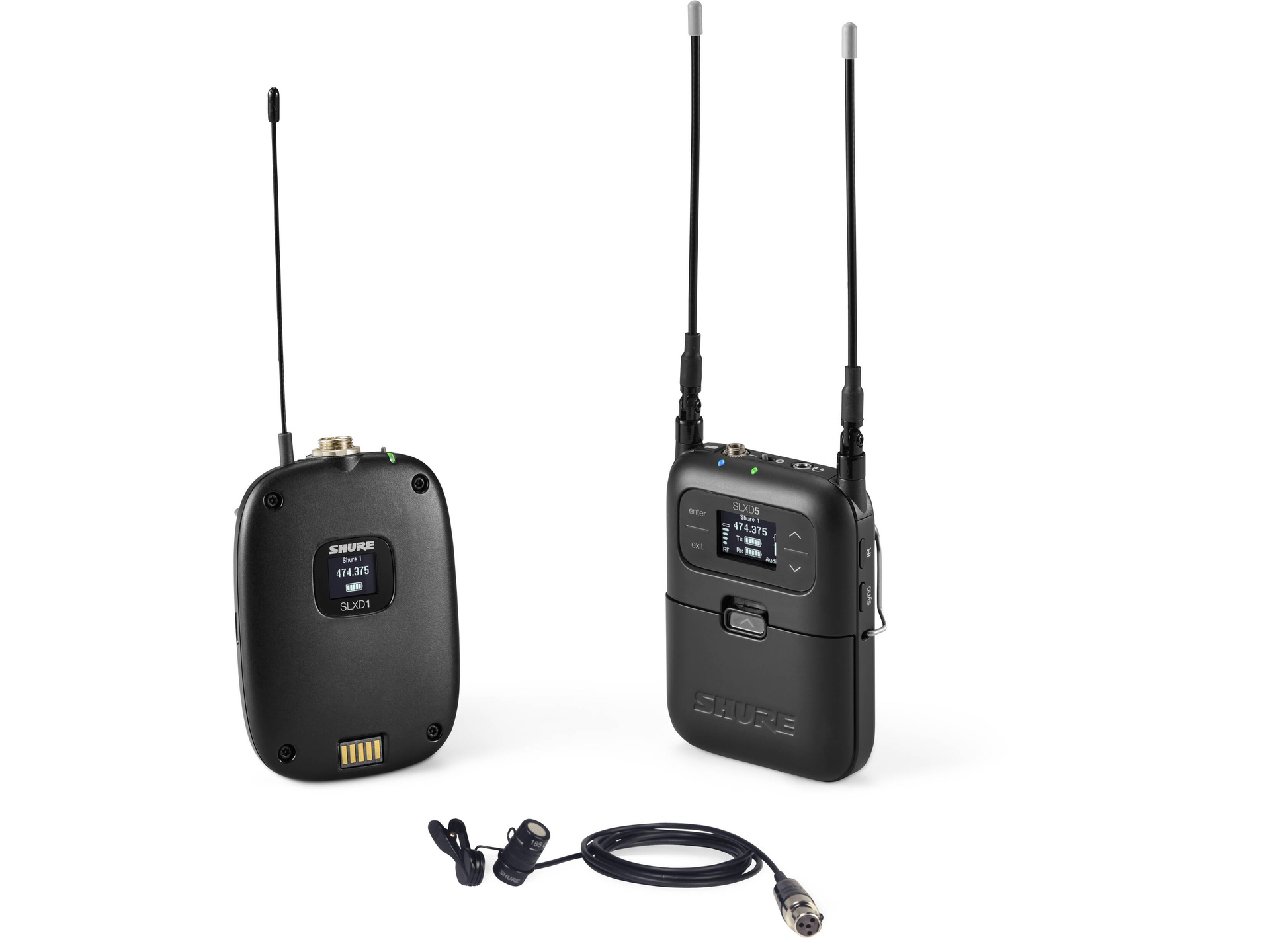

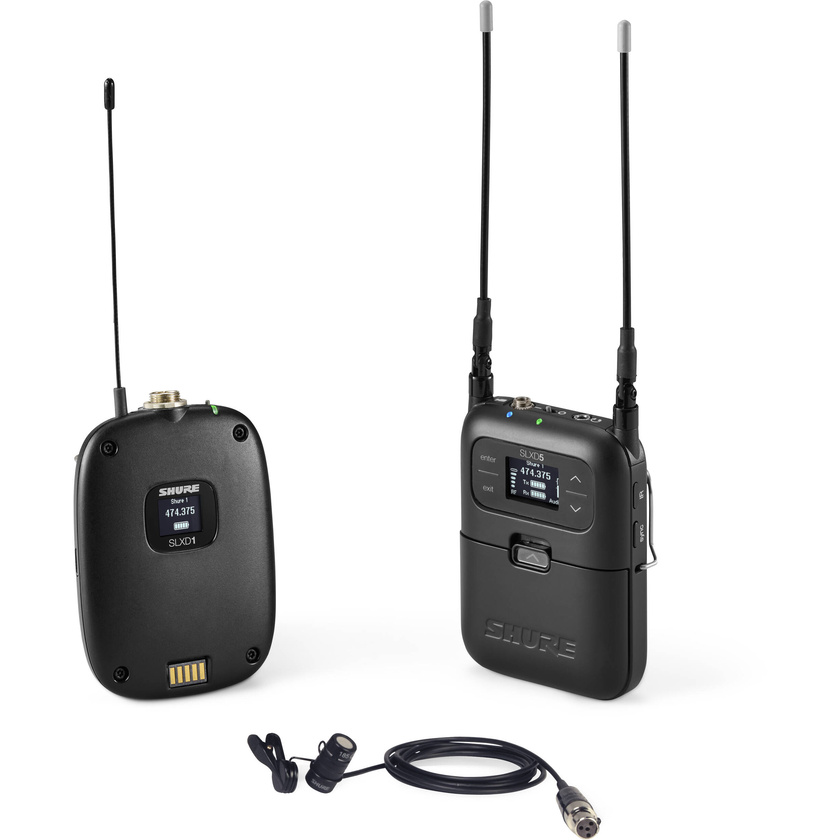

Shure SLXD15/85 Digital Camera-Mount Wireless Cardioid Lavalier Mic System (H57: 520 to 564 MHz)

Product #125219 | SKU SLXD15/85-H57 | Shure
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $1,779
A deposit of $180.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • Content Creation, Videos, Documentaries
  • WL185 Cardioid Lavalier Microphone
  • Durable, Ergonomic Bodypack Transmitter
  • 1-Channel Receiver for Camera or Bag Use
  • 118 dB Dynamic Range, 24-Bit Audio
  • Reliable Predictive-Diversity Antennas

Description

The Shure SLXD15/85 Digital Camera-Mount Wireless Cardioid Lavalier Mic System (H55: 514 to 558 MHz) is designed for videographers, journalists, documentary filmmakers, and content creators who need a dependable wireless lavalier microphone system. This system delivers crystal-clear digital sound quality and is engineered for straightforward, hassle-free setup—even with multiple microphones in use on set.

Versatile and Robust Design

At its core is a rugged, single-channel receiver that’s flexible enough to be camera-mounted or set up in an audio bag, adapting seamlessly to a variety of production environments. The SLXD15/85 offers an extensive array of features to guarantee professional, broadcast-ready audio, meeting the high standards of filmmakers and creative professionals.

Complete System for Professional Results

This configuration includes a durable bodypack transmitter paired with the renowned WL185 cardioid lavalier microphone, ensuring precise, clear voice capture. Together, these components provide a comprehensive solution for those who demand reliable, industry-standard wireless audio performance on every shoot.

Specifications

System
Wireless Technology Digital UHF
Diversity Yes, True Diversity
RF Frequency Band H57: 520 to 564 MHz
Number of RF Channel Frequencies 1760
Max Operating Range 328' / 100 m
Max Transmitters per Band 32
Dynamic Range 118 dBA (Typical)
Latency 3.2 ms
Encryption No
Built-In Recorder No
Timecode Support Yes
Mobile App Compatible No
Receiver
Receiver Type 1x Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2x Fixed 1/4 Wave Flexible Whip (Front-Mount)
Number of Audio Channels 1
Audio I/O 1x 1/8" / 3.5 mm TRS Balanced Mic/Line Output
1x 1/8" / 3.5 mm TRS Headphone Output
Network I/O No
USB/Lightning Connectivity 1x USB-C Female (Charging, Bus Power)
Frequency Response 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic)
Display OLED
Power Requirements Battery, Bus Power (USB)
Transmitters
Included Transmitters 1x Bodypack
RF Output Power 10 / 1 mW (Selectable)
Antenna Fixed 1/4 Wave External
Input Level Microphone / Instrument
Audio I/O 1x TA4M/Mini-XLR 4-Pin Male Input
USB I/O No
Muting Off/On Switch
Gain Range 0 to +21 dB
Auto-Level/Gain No
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Display OLED
Microphones
Microphone Type 1x Lavalier
Polar Pattern Cardioid
Frequency Response 50 Hz to 17 kHz
Maximum SPL 130.5 dB
Sensitivity -45.5 dBV/Pa
Output Connector 1x TA4F/Mini-XLR 4-Pin Female
Cable Length 4' / 1.22 m
Colour Black
Power
Receiver Battery Type 2x AA (Included) or
1x Shure SB903 (Not Included)
Receiver Battery Life 5.5 Hours
Transmitter Battery Type 2x AA (Included) or
1x Shure SB903 (Not Included)
Transmitter Battery Life 8 Hours (Lithium)
Battery Charging Time 1.25 to 5.5 Hours
Included Charging Case No
AC/DC Power Adapter No
Physical
Environmental Resistance No
Housing Plastic, ABS (Transmitter)
Aluminium (Receiver)
Dimensions Receiver:
4.2 x 2.7 x 1" / 107 x 68 x 25.3 mm
Transmitter:
3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm
Weight Receiver:
0.4 lb / 182 g
Transmitter:
3.1 oz / 89 g
Microphone:
Not Specified

In The Box

  • Shure SLXD15/85 Digital Camera-Mount Wireless Cardioid Lavalier Mic System (H57: 520 to 564 MHz)
  • Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (H57: 520 to 564 MHz)
  • Shure SLXD1 Digital Wireless Bodypack Transmitter (H57: 520 to 564 MHz)
  • Shure WL185 Cardioid Lavalier Microphone with TA4F Connector (Black)
  • Shure WA311 Cold Shoe Mount Adapter for SLXD5 Receiver
  • Windscreen
  • Lapel Clip
  • 3.5mm to 3.5mm Cable
  • 3.5mm to XLR Cable
  • 4 x AA Battery

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Shure SLXD15/85 Digital Camera-Mount Wireless Cardioid Lavalier Mic System (H57: 520 to 564 MHz)
  • Manufacturer: Shure
  • Model: SLX-D / W185
  • SKU: SLXD15/85-H57
  • RM Product #: 125219
  • Length Meters: 1.22 m
  • Length Feet: 4 ft
  • Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
