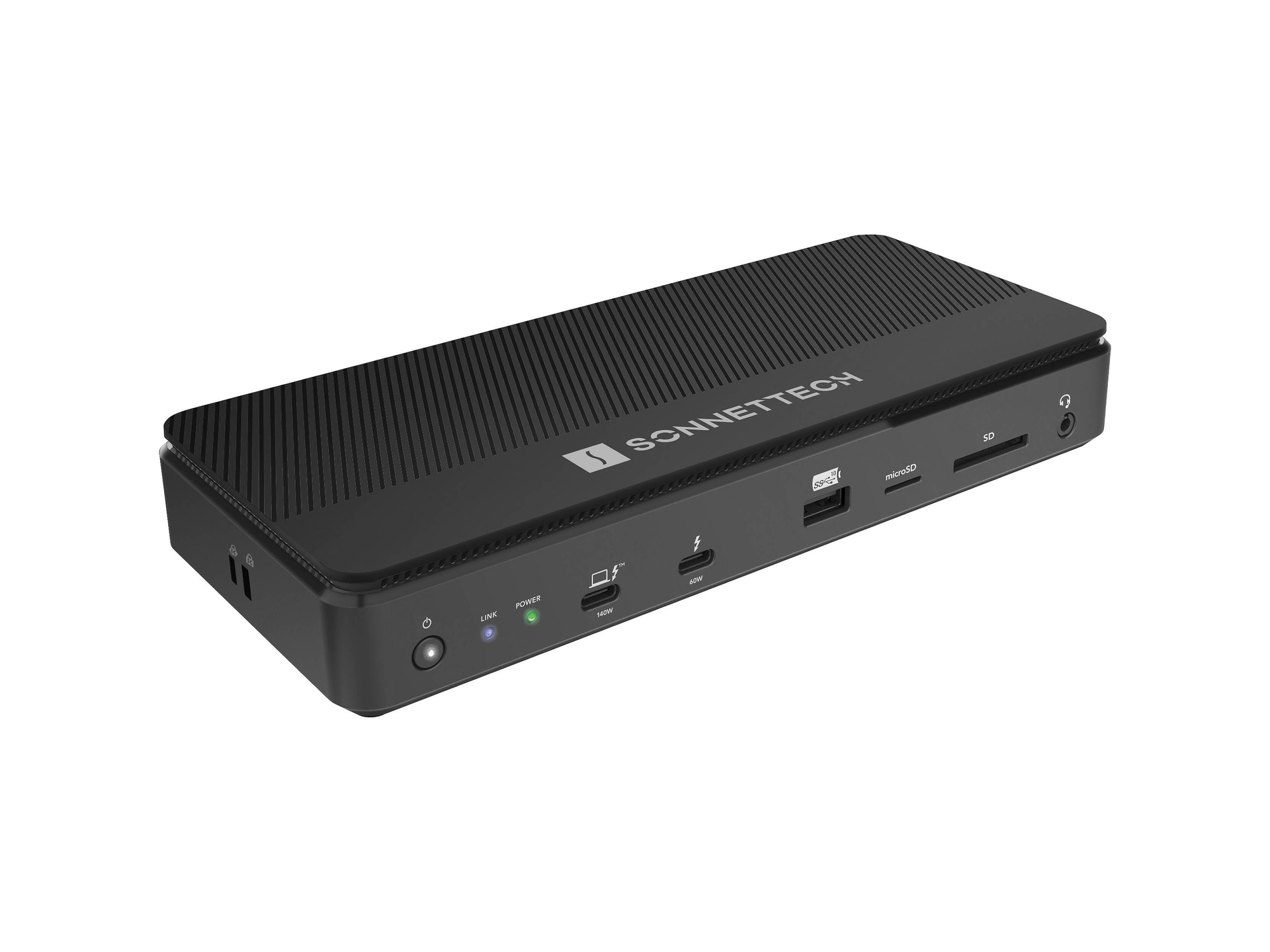

Sonnet Echo 13 Thunderbolt 5 SSD Dock (1TB)

Product #123329 | SKU ECHO-DK13-1TB5 | Sonnet
Usually ships in 4 - 6 weeks what does this mean?
Our Price $1,329
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $36 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Thunderbolt 5 1TB NVMe SSD
  • Write Speeds up to 4000 MB/s
  • 4 x Thunderbolt 5 Ports
  • 3 x USB-A 3.2 Gen 2 10 GB/s Charge Ports
  • 1 x USB-A 3.2 Gen 1 5 GB/s Port
  • 1 x RJ45 2.5 Gigabit Ethernet Port

Description

Turn your Windows, Mac, or Chromebook into a powerful workstation with just a single cable, thanks to the Sonnet Echo 13 Thunderbolt 5 SSD Dock (1TB). This versatile dock significantly reduces desktop clutter by eliminating the need for multiple cables and separate hubs through its wide array of integrated ports. At its core is a 1TB Kingston PCIe 4.0 NVMe SSD, capable of reaching transfer speeds up to 4000 MB/s. This storage communicates with your device via a Thunderbolt 5 connector, which also delivers an impressive 140W of charging power at the same time.

Versatile Connectivity

The Echo 13 offers a robust collection of ports to meet diverse connectivity needs:

  • Three Thunderbolt 5 ports
  • Three USB-A 3.2 Gen 2 charging ports (10 Gb/s)
  • One USB-A 3.2 Gen 1 port (5 Gb/s)
  • One RJ45 2.5 Gigabit Ethernet port for high-speed network connections
Enhanced Audio and Card Support

Recognizing the needs of users with audio accessories, Sonnet includes a built-in 3.5mm combination audio jack for easy connection of speakers or headsets. The dock also comes equipped with both UHS-II SD and microSD card slots, giving you quick access to files from your camera or portable storage cards.

Specifications

Max Resolution 3 Displays Supported:
7680 x 4320 at 240 Hz (Single)
7680 x 4320 at 240 Hz (Dual)
3840 x 2160 at 240 Hz (Triple)
Audio I/O 1/8" / 3.5 mm Headphone/Microphone Combo Jack
Network I/O 1x RJ45 (2.5 Gb/s)
Media Card Reader 1x SDXC (UHS-II [312 MB/s])
1x microSDXC (UHS-II [312 MB/s])
Host Connection USB-C (Thunderbolt 5) up to 140 W via Built-In Connector
Power Source Included AC Adapter with Barrel Connector: 100 to 240 VAC, 50/60 Hz (180 W)
Wireless Charging No
Storage 1x PCIe 4.0 M.2 Slot (Supporting Capacities up to 1 TB)
OS Compatibility Computer: Windows 11 or Later / macOS 15 or Later / Chrome OS
Mobile: iPadOS Only
Operating Conditions 32 to 95°F / 0 to 35°C
Lock Slot No
Certifications EN 55032, FCC Part 15, Subpart B, IEC62368-1, IEC62368-2 Safety, PSE, RoHS 3 (Directive 2015/863), UL
Cable Length 2.6' / 0.8 m
Dimensions 8.7 x 3.8 x 1.3" / 22 x 9.7 x 3.4 cm

In The Box

  • Sonnet Echo 13 Thunderbolt 5 SSD Dock (1TB)
  • Power Adapter and Cable
  • Thunderbolt 5 Cable (2.6')

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Sonnet Echo 13 Thunderbolt 5 SSD Dock (1TB)
  • Manufacturer: Sonnet
  • Model: ECHO-DK13-1TB5
  • SKU: ECHO-DK13-1TB5
  • RM Product #: 123329
  • Length Meters: 0.8 m
  • Length Feet: 2.6 ft
