StarTech 4 Bay Hot Swap Mobile Rack Backplane

Name: StarTech 4 Bay Hot Swap Mobile Rack Backplane
Brand: Startech
SKU: 80445
Price: 299.00 NZD
Availability: InStock

Product #80445 | SKU HSB4SATSASBA | Startech

| Write a review

In stock Ships in 2 - 4 working days

StarTech 4 Bay Hot Swap Mobile Rack Backplane

Our Price $299

In stock Ships in 2 - 4 working days

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships in 2 - 4 working days. Deliver to Auckland for $15 Change location

Click & Collect

Check availability

Features

Solid aluminum construction
Key lock design
Built-in fan
4 drive bay design
UL94 - V0 flammability rating

Description Specifications In The Box

Related Products

StarTech 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD

$71^.95

In Stock with Supplier Usually ships in 3 - 4 working days

StarTech 5.25" Removable SATA Hard Drive/Mobile Rack Drawer (Black)

$129

Description

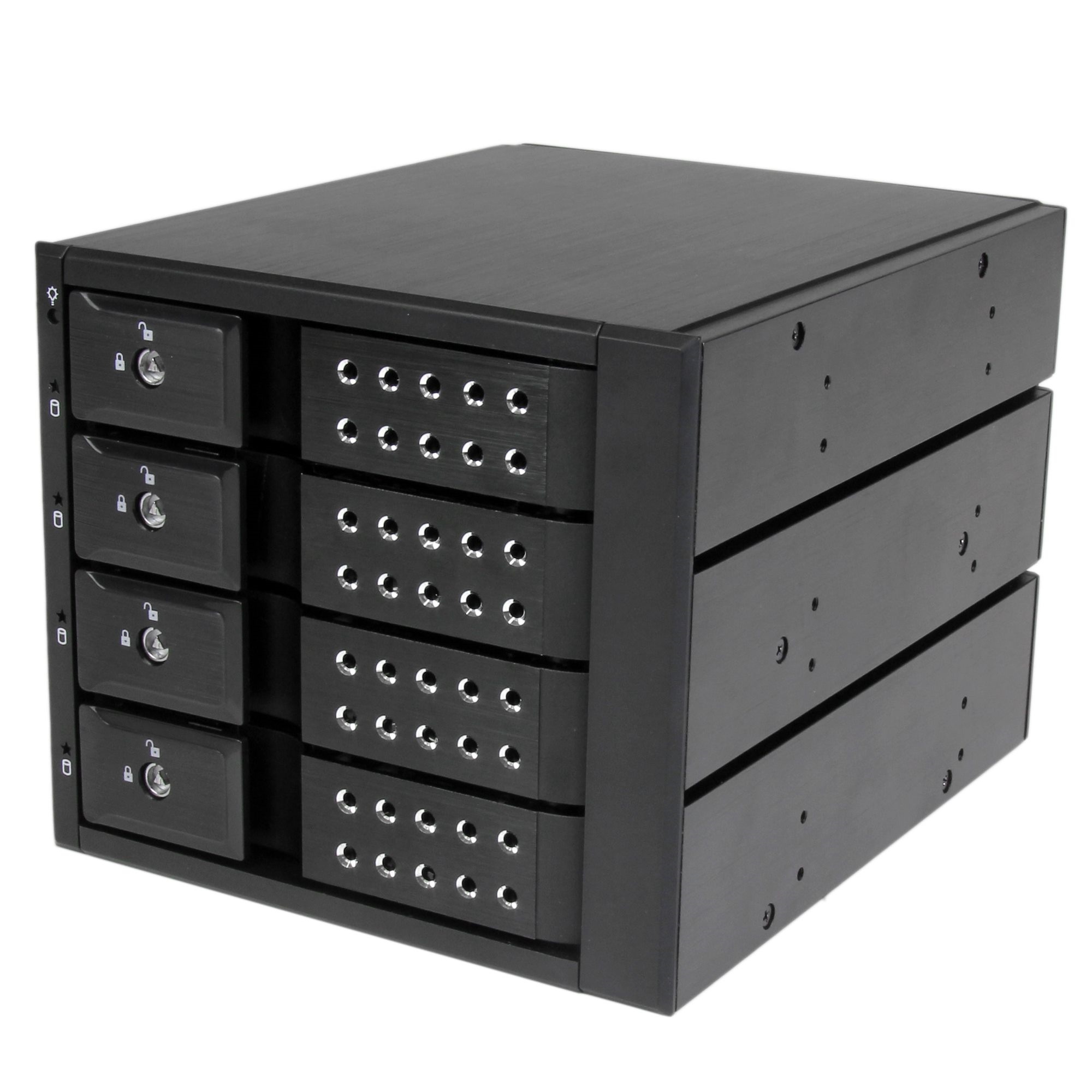

The StarTech 4 Bay Hot Swap Mobile Rack Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

Specifications


Connector
4 - Drive Connectors	SFF-8482 (29 pin, Data & Power, Internal SAS)
2 - Host Connectors	SATA Power (15 pin)
4 - Host Connectors	SATA (7 pin, Data)
Environmental
Operating Temperature	0°C to 55°C (23°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 122°F)
Humidity	5%~85% RH
Hardware
Interface	SATA
SAS
Front Door Key Lock	Yes
Number of Drives	4
Drive Size	3.5in
Compatible Drive Types	SAS & SATA
Drive Installation	Removable
Number of internal	3.5 inch bays 4
Fan(s)	Yes
1 - Fans	70 mm
Fan Bearing Type	Sleeve Bearing
Indicators
1 - LED Indicators	Power LED
Drive 1 Activity LED
Drive 2 Activity LED
Drive 3 Activity LED
Drive 4 Activity LED
Packaging Information
Package Height	7.1 in [18.0 cm]
Package Length	6.5 in [16.4 cm]
Shipping (Package) Weight	3.5 lb [1.6 kg]
Package Width	10.0 in [25.4 cm]
Performance	Maximum Data Transfer Rate 6 Gbit/s
Max Drive Capacity	Currently tested with up to 6TB 7200 RPM hard drives
