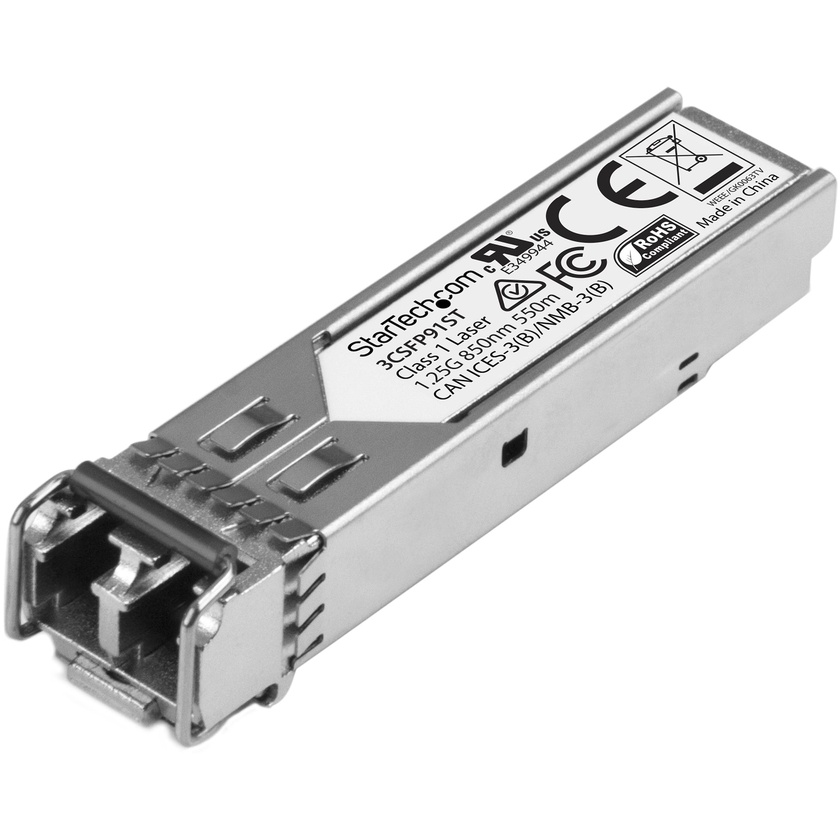

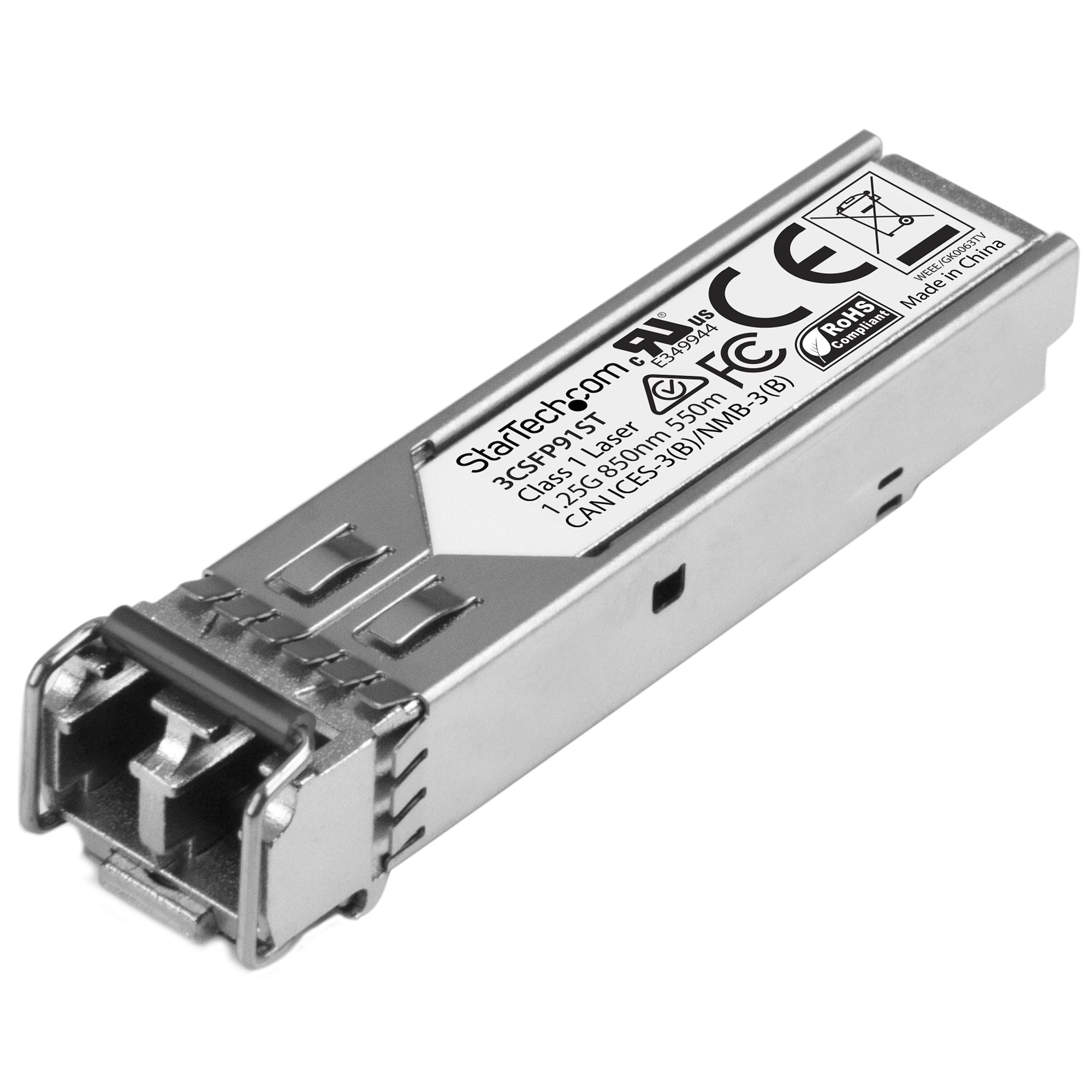

StarTech HP 3CSFP91 1000Base-SX SFP Transceiver

Product #83343 | SKU 3CSFP91ST | Startech
Contact us for an ETA what does this mean?
Our Price $119
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)

Related Products


Description

The StarTech HP 3CSFP91 1000Base-SX SFP Transceiveris an HP 3CSFP91 compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Key Features:

Technical Specifications:
  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)
  • MTBF: 3,381,761 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Specifications

Connector
1 - Local Unit Connectors Fiber Optic LC Duplex
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5~95% RH
Hardware
Compatible Brand HPE
Industry Standards IEEE 802.3z 1000BASE-SX
Packaging Information
Package Height 1.3 in [32.0 mm]
Package Length 4.0 in [10.2 cm]
Shipping (Package) Weight 1.6 oz [44.0 g]
Package Width 3.7 in [93.0 mm]
Performance
Maximum Data Transfer Rate 1.25 Gbps
Max Transfer Distance 550 m (1804 ft)
Type Multi Mode
Wavelength 850nm
Fiber Operating Mode Full-Duplex
DDM Yes
Compatible Networks 1000 Mbps (1 Gbps)
MTBF 3,381,761 hours
Power Consumption (In Watts) < 1 W

In The Box

  • StarTech HP 3CSFP91 1000Base-SX SFP Transceiver
