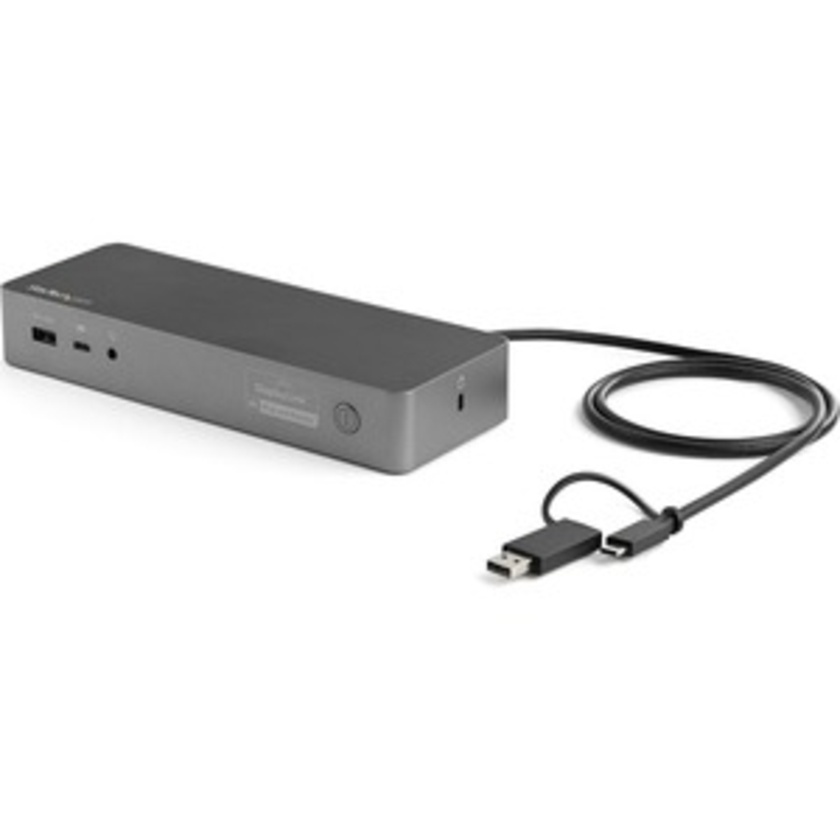

StarTech USB-C & USB-A Dock Hybrid Universal Laptop Docking Station

Product #87125 | SKU DK30C2DPEP | Startech
In stock Ships in 2 - 4 working days
Our Price $769
In stock Ships in 2 - 4 working days
- +

this item may be nonreturnable
Shipping & Availability
Ships in 2 - 4 working days. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Enhance Productivity
  • 100W Power Delivery
  • Powerful Connections

Description

This StarTech USB-C & USB-A Dock Hybrid Universal Laptop Docking Station for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

Key Features:

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility The DK30CH2DEP, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly.

Specifications

Connector
2 - Connector Type(s) DisplayPort (20 pin)
1 - Connector Type(s) HDMI (19 pin)
2 - Connector Type(s) USB Type-C (24 pin) USB 3.0 (5Gbps)
1 - Connector Type(s) USB 3.0 A (Fast-Charge, 9 pin)
3 - Connector Type(s) USB Type-A (9 pin) USB 3.0 (5 Gbps)
1 - Connector Type(s) RJ-45
3.5 mm Mini-Jack (4 Position)
2 - Connector Type(s) 3.5 mm Mini-Jack (3 Position)
1 - Connector Type(s) Security Lock Slot
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0~70% RH
Hardware
4K Support Yes
Fast-Charge Port(s) Yes
Displays Supported 3
Bus Type USB-C
Industry Standards USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID DisplayLink - DL-6950
Genesys Logic - GL3523
Genesys Logic - GL3523S
Texas Instruments - TPS65982
Parade Technologies - PS176
Packaging Information
Shipping (Package) Weight 3.7 lb [1.7 kg]
Package Length 12.6 in [32.0 cm]
Package Width 6.3 in [16.0 cm]
Package Height 3.1 in [80.0 mm]
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz
1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Physical Characteristics
Color Black & Silver
Material Plastic
Product Length 10.6 in [27.0 cm]
Product Width 3.2 in [82.0 mm]
Product Height 1.3 in [34.0 mm]
Weight of Product 13.5 oz [382.0 g]
Power
Power Source AC Adapter Included
Power Delivery 100W
Input Voltage 100 - 240 AC
Input Current 2.5 A
Output Voltage 20V DC
Output Current 7.5 A
Center Tip Polarity Positive
Plug Type N

In The Box

  • StarTech USB-C & USB-A Dock Hybrid Universal Laptop Docking Station

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech USB-C & USB-A Dock Hybrid Universal Laptop Docking Station
  • Manufacturer: Startech
  • Model: DK30C2DPEP
  • SKU: DK30C2DPEP
  • RM Product #: 87125
