Startech 2m LSZH CAT6 Ethernet Cable 10GbE - Grey

Product #96492 | SKU N6LPATCH2MGR | Startech
In Stock with Supplier Usually ships in 3 - 4 working days what does this mean?
Our Price $16.95
In Stock with Supplier Usually ships in 3 - 4 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 4 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Reliably Connect Your Ethernet Devices
  • Complies with IEEE 802.3bt Type 4 standard
  • Low Smoke Zero Halogen (LSZH)

Description

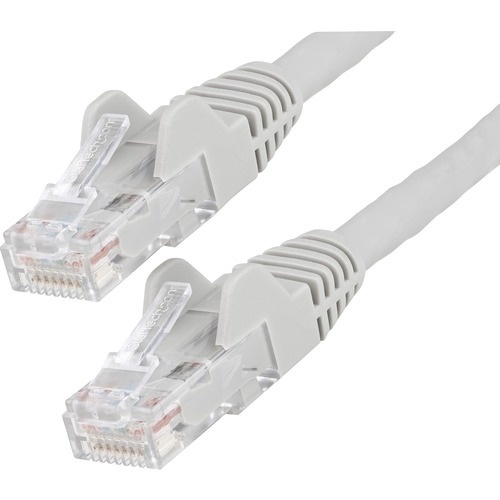

Startech 2m LSZH CAT6 Ethernet Cable 10GbE - Grey

Low Smoke Zero Halogen (LSZH) Category 6 Snagless Network Patch Cable supports error-free Multi Gigabit connections: 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 160ft/55m). This PVC free high-performance cable offers reliable connectivity to all networking devices, such as Network Interface Cards (NIC), servers, routers, network attached storage (NAS), VoIP phones, PoE devices, etc.

This Eco-friendly LSZH CAT6 cable produces lower levels of toxic corrosive fumes and white smoke in the event of a fire, which offers higher visibility, allowing for a safer and faster evacuation.

  • Reliably Connect Your Ethernet Devices
  • Error-free Multi Gigabit support - 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 55m), 10GBase-T
  • 650MHz support for increased bandwidth
  • 100% Copper Cable, Ideal for Powering Your Devices Over Ethernet
  • Tested up to 100W continuous power throughput.
  • Complies with IEEE 802.3bt Type 4 standard.
  • Excellent heat dissipation over prolonged use.
  • Quality Construction
  • 50-micron gold platted connectors
  • Snagless boot
  • 40 mm (1.57") bend radius for strong molded strain relief and improved flexibility
  • Hassle-free Installation with Reliable Performance and Flexibility
  • 6.0 mm (0.23") OD, Flexible PVC-Free jacket with 100 mm (3.93") bend radius
  • Flexible HD-PE insulation for reduced Intra-pair Crosstalk
  • Spline separator for reduced Inter-pair Crosstalk and improved heat dissipation for 100W PoE
  • 24AWG (0.25mm2), 100% copper, stranded wire twisted pairs
  • U/UTP cable construction
  • Electrical Characteristics
  • ETL Verified for maximum performance
  • Cable Impedance: 100 ohms ± 15% at 250 MHz

Specifications

Cable Length 2 m
Data Transfer Rate 10 Gbit/s
Device Supported Server
Notebook
VoIP Device
NAS Storage Device
Security Camera
PoE-enabled Device
Network Device
Router
Jacket Type LSZH
Shielding No
Features Molded
Near End Cross Talk (NEXT)
Snagless
Flexible
Fray Resistant
Bend Resistant
Crosstalk Protection
Strain Relief
Snagless Boot
Stranded
PVC Free
Damage Resistant
PoE
Cable Characteristic Patch Cable
Connector on First End 1 x RJ-45 Male Network
Connector on Second End 1 x RJ-45 Male Network
Cable Type Category 6
American Wire Gauge 24 AWG
Contact Plating Gold
Weight (Approximate) 82.2 g
Colour Grey

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Startech 2m LSZH CAT6 Ethernet Cable 10GbE - Grey
  • Manufacturer: Startech
  • Model: N6LPATCH2MGR
  • SKU: N6LPATCH2MGR
  • RM Product #: 96492
  • Length Meters: 2 m
  • Cable Connector: RJ-45 Male
  • Connector count: 2
  • Cable Type: Cat6
